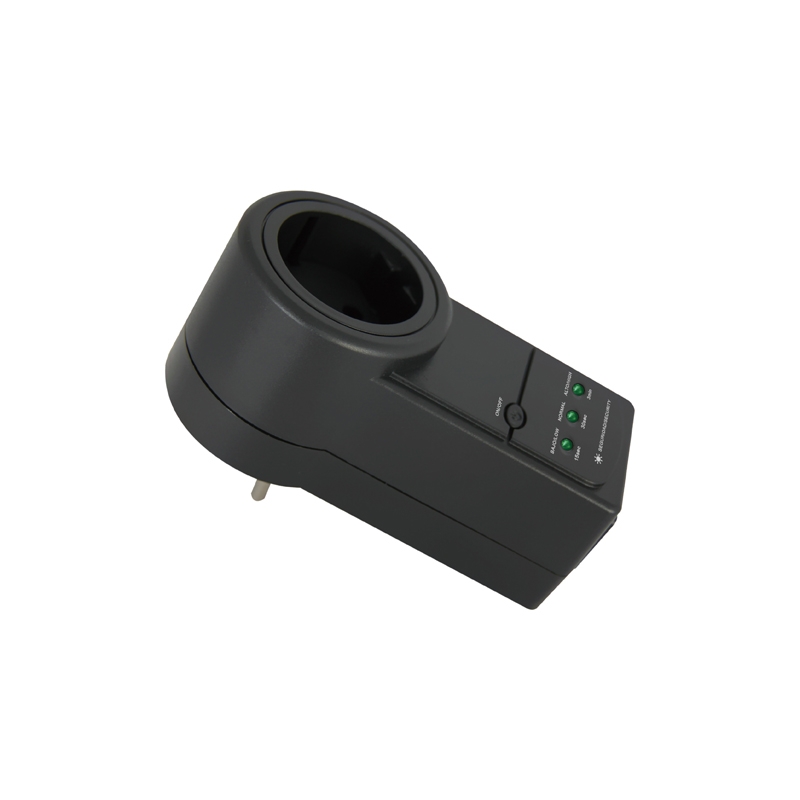

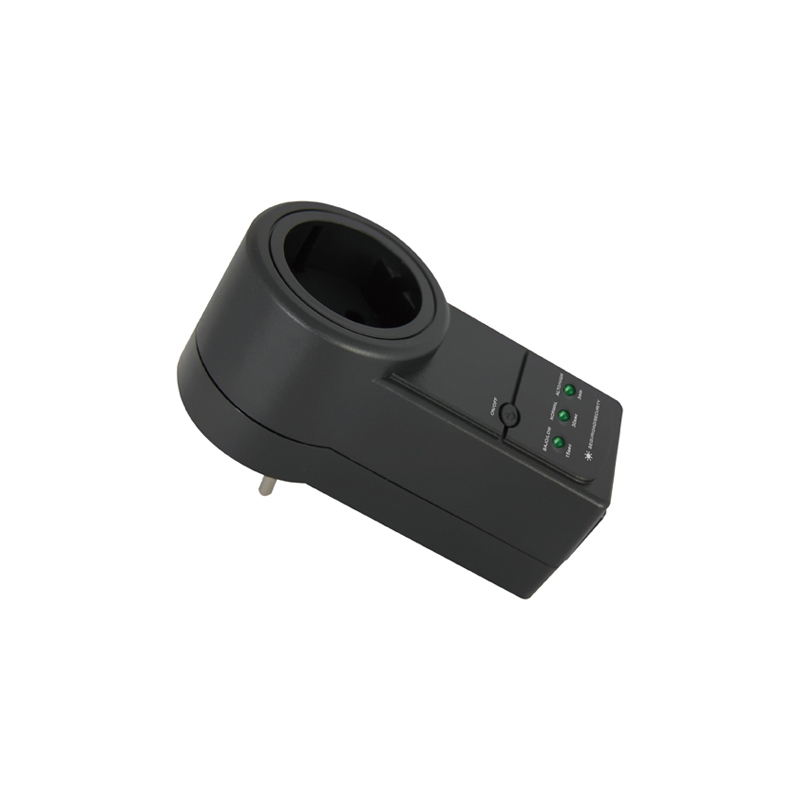

VP-173-10A
Voltage Protector
VP-173-10A
VP-173-10A is voltage protector that guarantees power protection from an over-voltage or under-voltage situations.
With built-in 15 seconds, 30 seconds and 3 minutes delay timer protection, voltage protector is perfect for your refrigerators, air conditioners and TVs to avoid sudden electrical surges especially during the initial power entry when power is recovered from blackout.
VP-173-10A (German)

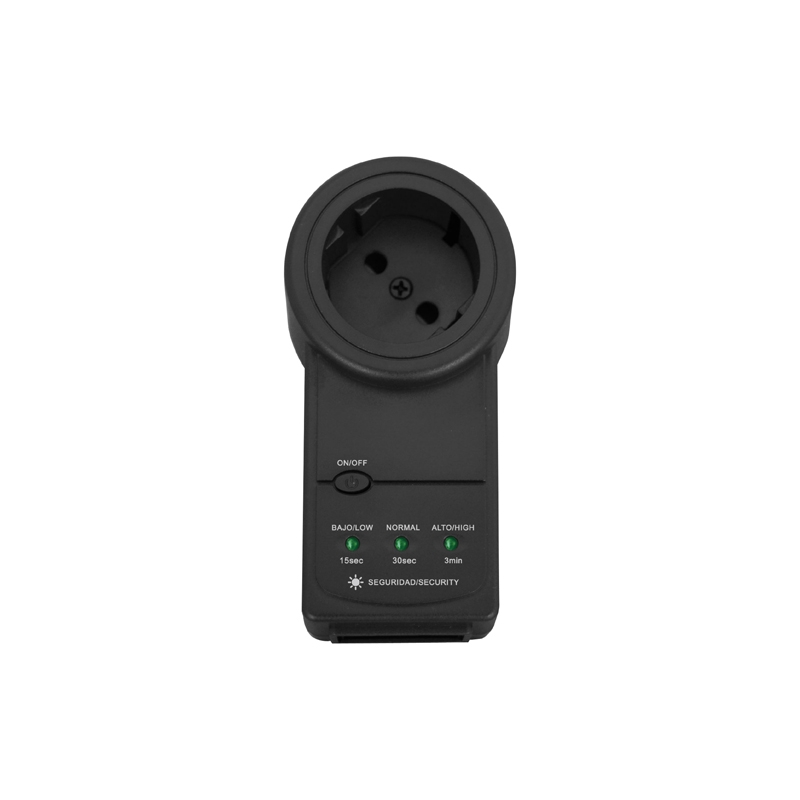

- Built-in delay protection 15 seconds, 30 seconds, 3 minutes
- Microprocessor control guarantees better performance
- Provide high / low voltage cut-off protection
- Provide lightning / surge protection
- On/Off switch for power saving

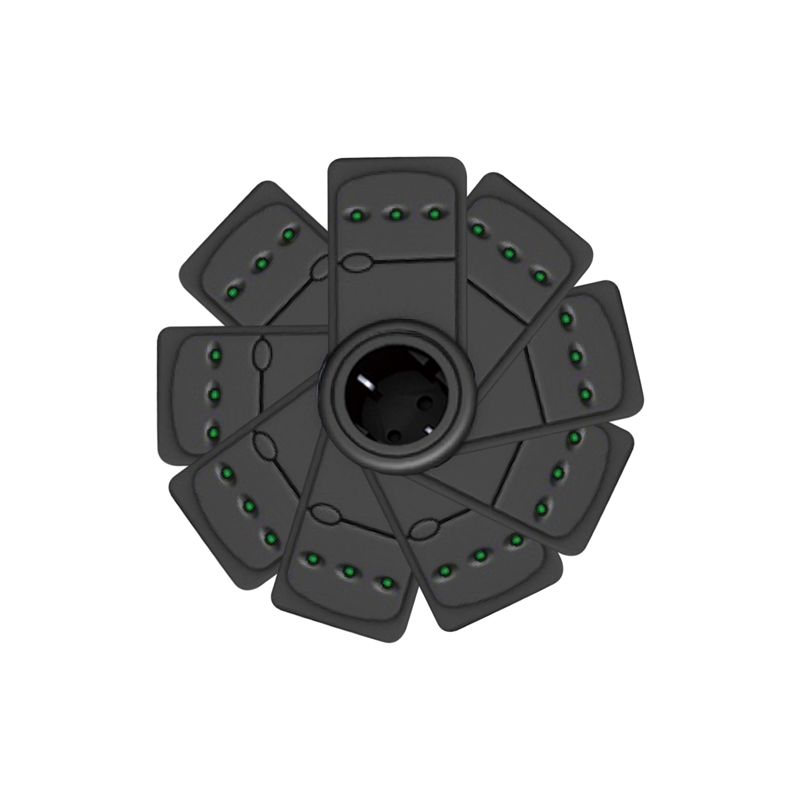

- 350 degrees rotation
- Child protector
| MODEL | VP-173-10A | ||||||
| INPUT | |||||||
| Nominal Voltage | 230Vac | ||||||
| Voltage Range | 180-268Vac for 230Vac System | ||||||
| Frequency | 50/60Hz (Auto-sensing) | ||||||
| Plug | German*1pc (On the rear) | ||||||
| OUTPUT | |||||||
| Voltage | Same as input | ||||||
| Frequency | Same as input | ||||||
| Outlet | German*1pc | ||||||
| PROTECTION | |||||||
| Power Line Surge Energy Rating | 900 Joules | ||||||
| Delay Reconnection | 15 seconds / 30 seconds / 3 minutes | ||||||
| Tel./Fax/Modem/DSL port | RJ-45 / RJ-11 | ||||||
| High/Low Voltage Cut-off | Yes | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | 0-95% (Non-condensing) | ||||||
| PHYSICAL | |||||||
| Dimension | 120*60*90mm | ||||||
| Net Weight | 150g | ||||||
| **Product specifications are subject to change without further notice. | |||||||
