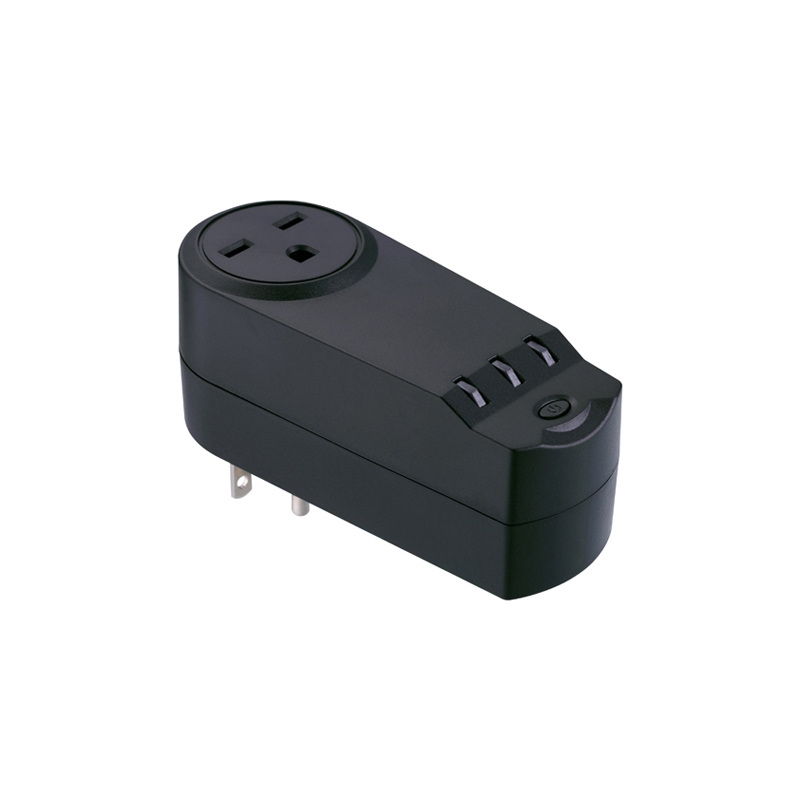

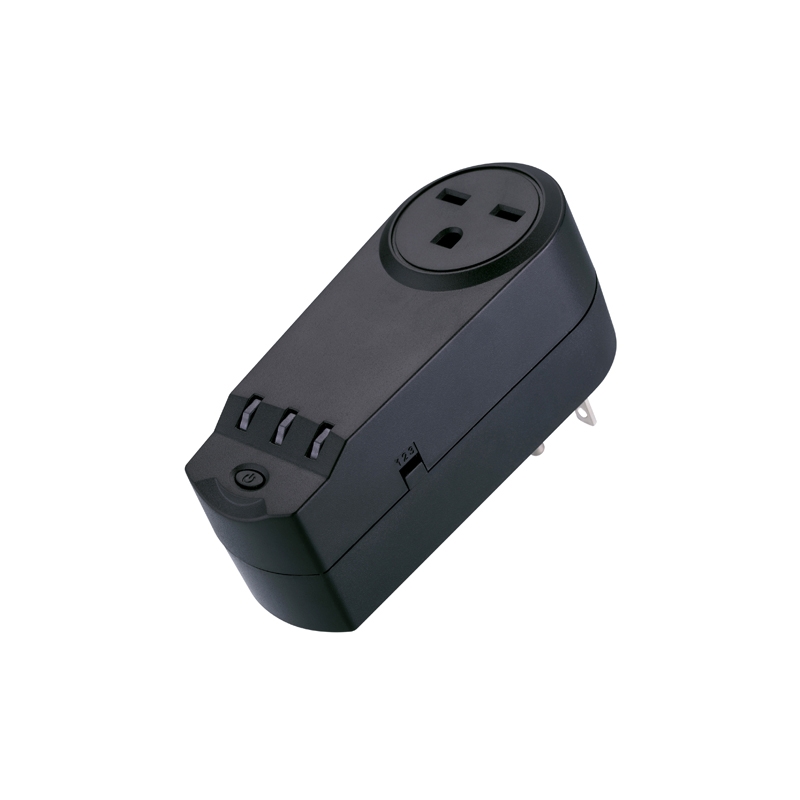

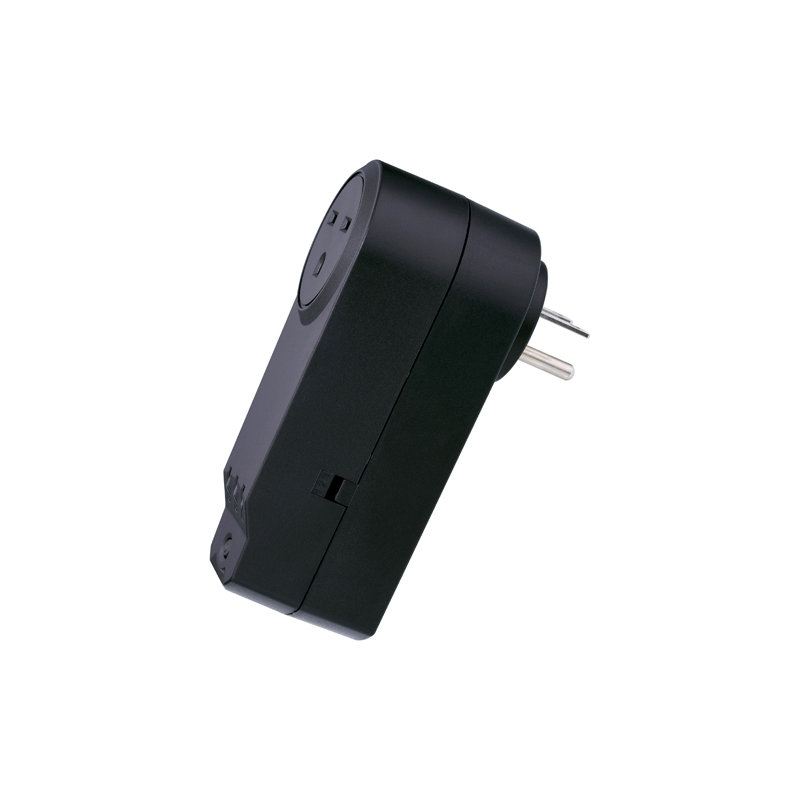

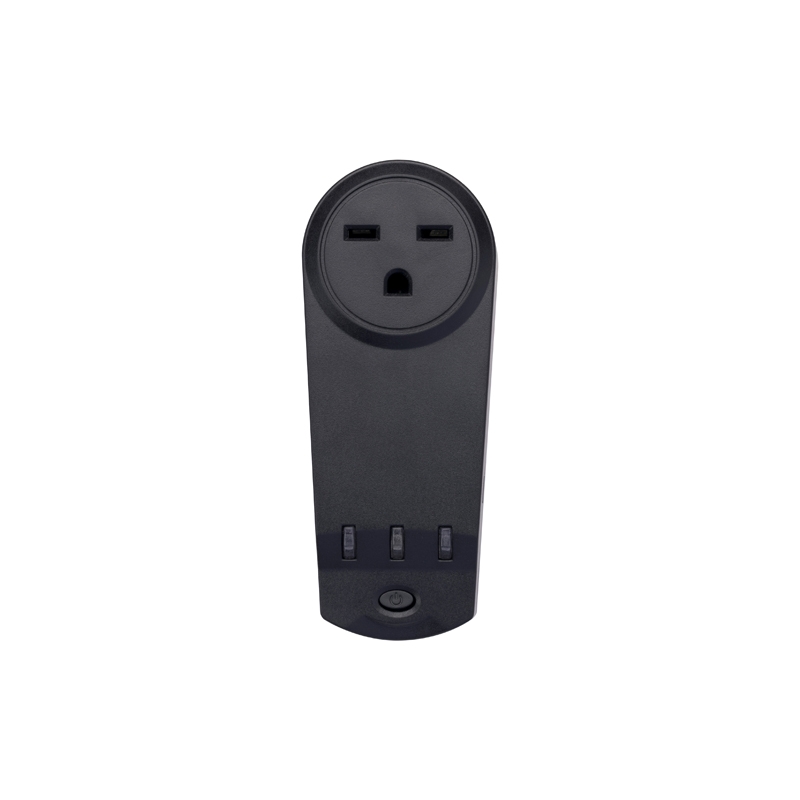

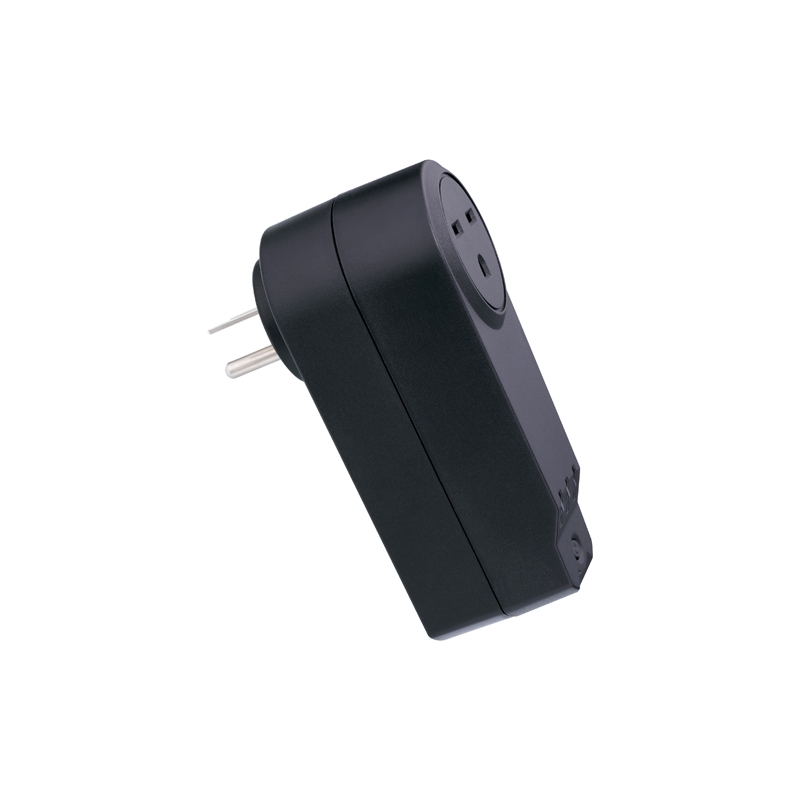

VP-165-20A

VP-165-20A is voltage protector that guarantees power protection from an over-voltage or under-voltage situations.
With built-in 3 minutes delay timer protection, voltage protector is perfect for your refrigerators or air conditionersto avoid sudden electrical surges especially during the initial power entry when power is recovered from blackout.

 VP-165-20A (Nems 6-15R)

  • Microprocessor control guarantees better performance
  • Provide high / low voltage cut-off protection
  • Built-in delay protection for 3 minutes
  • Provide lightning / surge protection
  • On/Off switch for power saving
MODEL VP-165-20A
INPUT
Nominal Voltage 220Vac
Voltage Range 180-268Vac
Frequency 50/60Hz (Auto-sensing)
Plug Nema 6-15P
OUTPUT
Voltage Same as input
Frequency Same as input
Outlet Nema 6-15R
PROTECTION
Power Line Surge Energy Rating 900 Joules
Delay Reconnection 3 minutes
High/Low Voltage Cut-off Yes
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
PHYSICAL
Dimension 100*45*45mm
Net Weight 143g
**Product specifications are subject to change without further notice.
