VP-508-10A

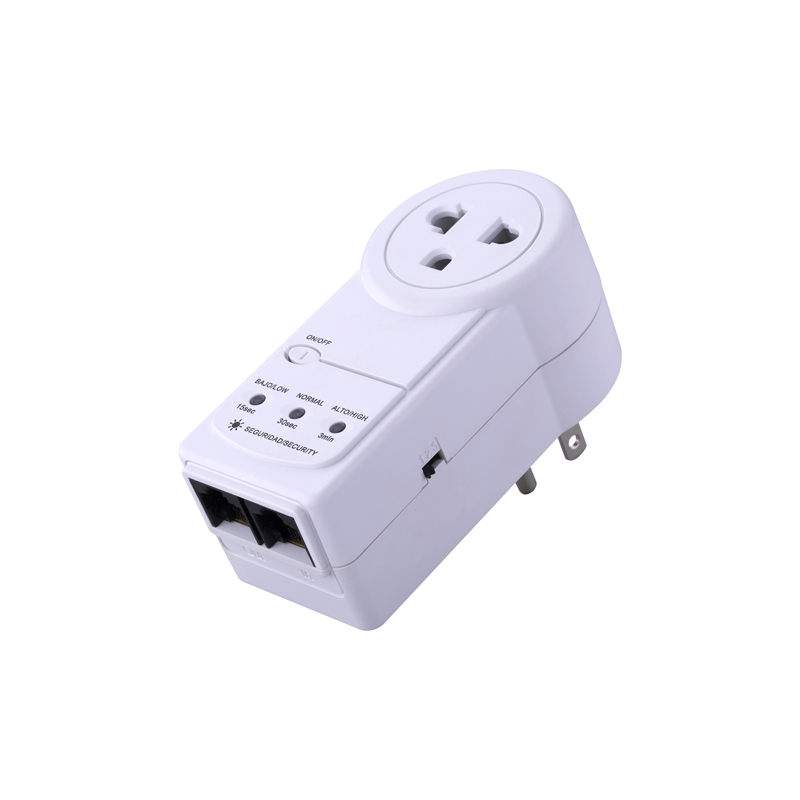

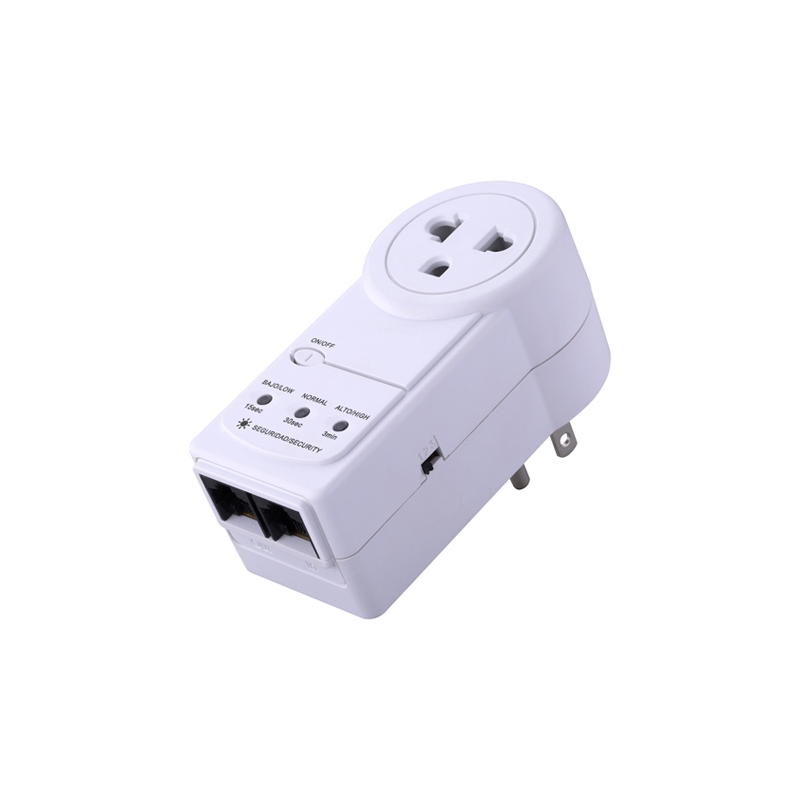

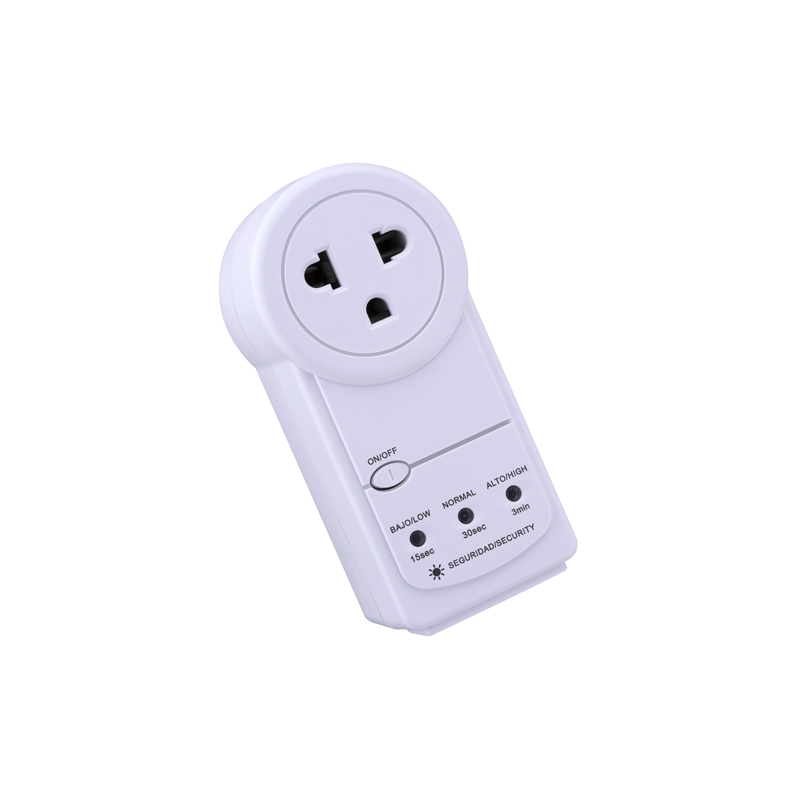

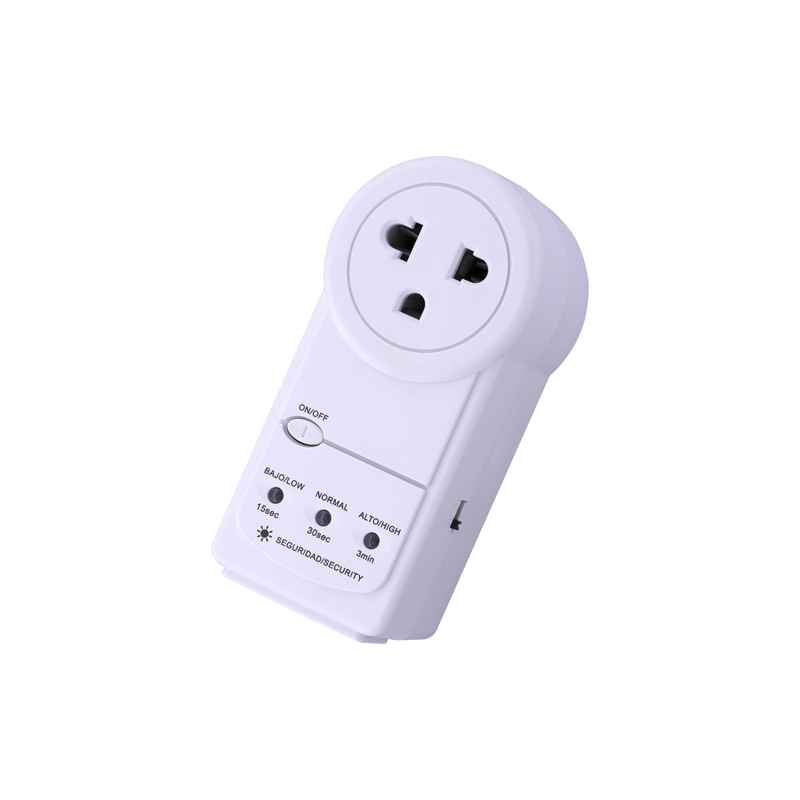

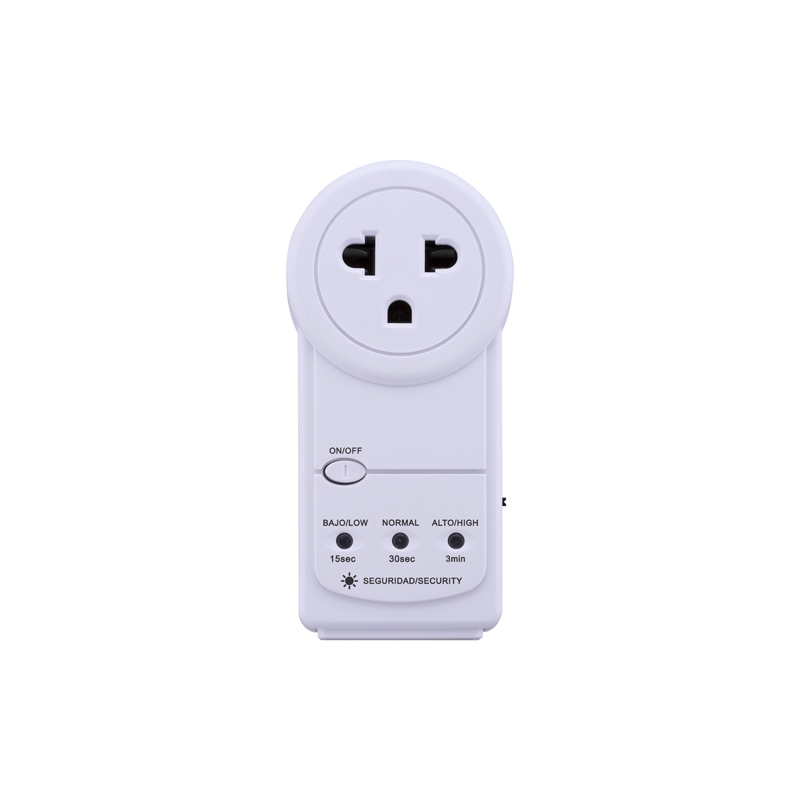

VP-508-10A is voltage protector that guarantees power protection from an over-voltage or under-voltage situations.
With built-in 15 seconds, 30 seconds and 3 minutes delay timer protection, voltage protector is perfect for your refrigerators, air conditioners and TVs to avoid sudden electrical surges especially during the initial power entry when power is recovered from blackout..

 VP-508-10A (Universal Nema)

  • Built-in delay protection 15 seconds, 30 seconds, 3 minutes
  • Microprocessor control guarantees better performance
  • Provide high / low voltage cut-off protection
  • Provide lightning / surge protection
  • On/Off switch for power saving
MODEL VP-508-10A
INPUT
Nominal Voltage 220/230/240Vac
Voltage Range 180-268Vac
Frequency 50/60Hz (Auto-sensing)
Plug Nema 5-15P (w/ Removeable ground pin)*1pc
OUTPUT
Voltage Same as input
Frequency Same as input
Outlet Universal Nema*1pc
PROTECTION
Power Line Surge Energy Rating 900 Joules
Delay Reconnection 15 seconds / 30 seconds / 3 minutes
Tel./Fax/Modem/DSL port RJ-45 / RJ-11
High/Low Voltage Cut-off Yes
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
PHYSICAL
Dimension 100*45*45mm
**Product specifications are subject to change without further notice.
