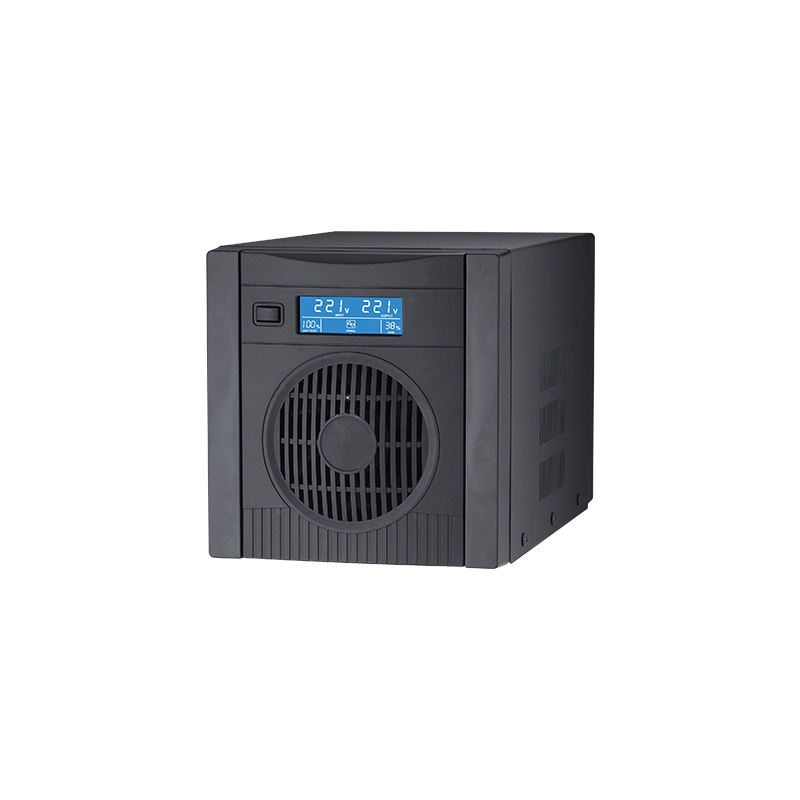

INVISIMO HOME Series
600VA-1500VA

The Invisimo HOME series is a stand-alone inverter UPS which combines both benefits of UPS and inverter for long time operation, along with overall protection for short circuit, over/under voltage, over charge/discharge.
Featuring 600-1500VA integrated with low frequency design, wide input voltage tolerance 140-300Vac, voltage stabilizer and LCD display, INVISIMO HOME inverter UPS is a green alternation for generator and an ideal solution to keep important home appliances or office devices running frequently during daily and long utility blackout.

INVISIMO HOME Series 600VA-1500VA

  • Auto-restart function: UPS shuts down upon battery low and restarts automatically upon AC recovery
  • Full protection: over voltage, under voltage, over charge, over discharge, short circuit protection
  • Controlled by a technologically advanced microprocessor guaranteeing high reliability
  • DC start (cold start) function: Enable UPS to be started without AC power supplied
  • Off mode charging: UPS charges itself even though power switch is off
  • 600VA, 850VA, 1500VA simulated sinewave inverter
  • Accept wide input voltage range 140-300VAC
  • Charging current 5A/10A/15A (Adjustable)

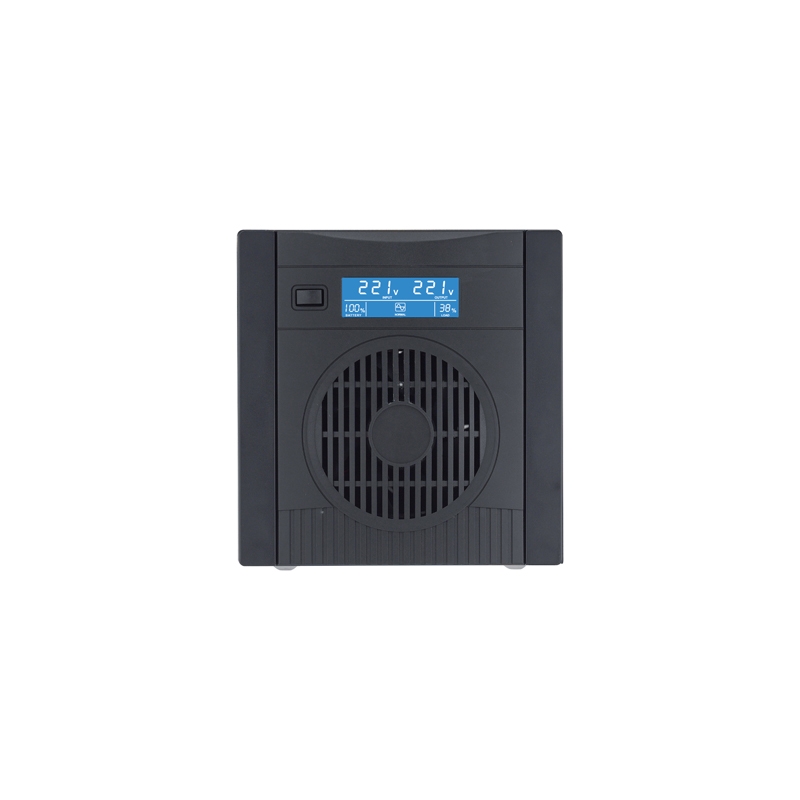

  • Users friendly LCD display
MODEL INVISIMO HOME-600 INVISIMO HOME-850 INVISIMO HOME-1500
CAPACITY 600VA/360W 850VA/600W 1500VA/1050W
INPUT
Voltage 230Vac
Voltage Range 140-300Vac
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation AC Mode: 195-253Vac ; Battery Normal: 230Vac +/-10%
Frequency AC Mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery Mode: 50Hz or 60Hz +/-1Hz
Transfer Time <6ms (Typical)
Waveform Simulated sinewave

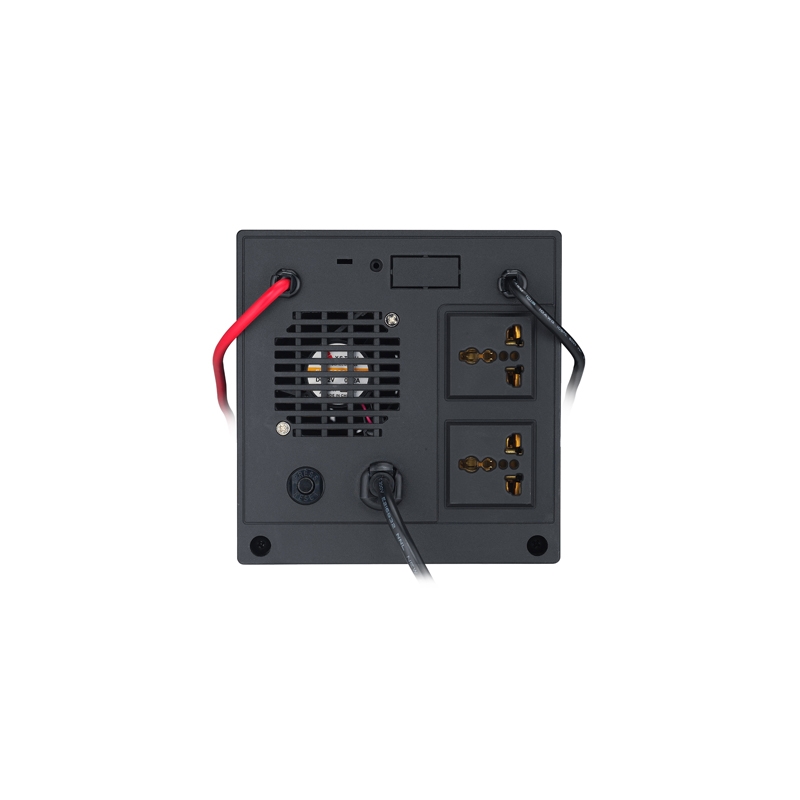

Outlet: German/Universal 2pcs Back-up/AVR plus Surge
BATTERY
Type Maintenance Free Dry Type (Suggested)
Voltage 12VDC 24VDC
Floating Charge Voltage 13.7VDC +/-2% 27.4VDC +/-2%
Low Battery Alarm Voltage 11.0VDC +/-2% 22.0VDC +/-2%
Shutdown Voltage 10.0VDC +/-2% 20.0VDC +/-2%
Capacity 1pc 12V/50AH, or 100AH, or 150AH 2pcs 12V/50AH, or 100AH, or 150AH
Charging Current 5Amp/10Amp/15Amp (Adjustable)
PROTECTION
Full Protection Over Voltage ; Under Voltage ; Over Charge ; Over Discharge ; Short Circuit
DISPLAY
LCD Display Input voltage, Output voltage, Load Level, Battery Level, Battery fail, Overload, Fault, AC normal
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-90% (Non-condensing)
Acoustic Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 250*157*157mm
**Product specifications are subject to change without further notice.
