AVR-Relay Type

> Products > AVR-Relay Type > AVR I-477U Series
600VA-1000VA

AVR I-477U Series
600VA-1000VA

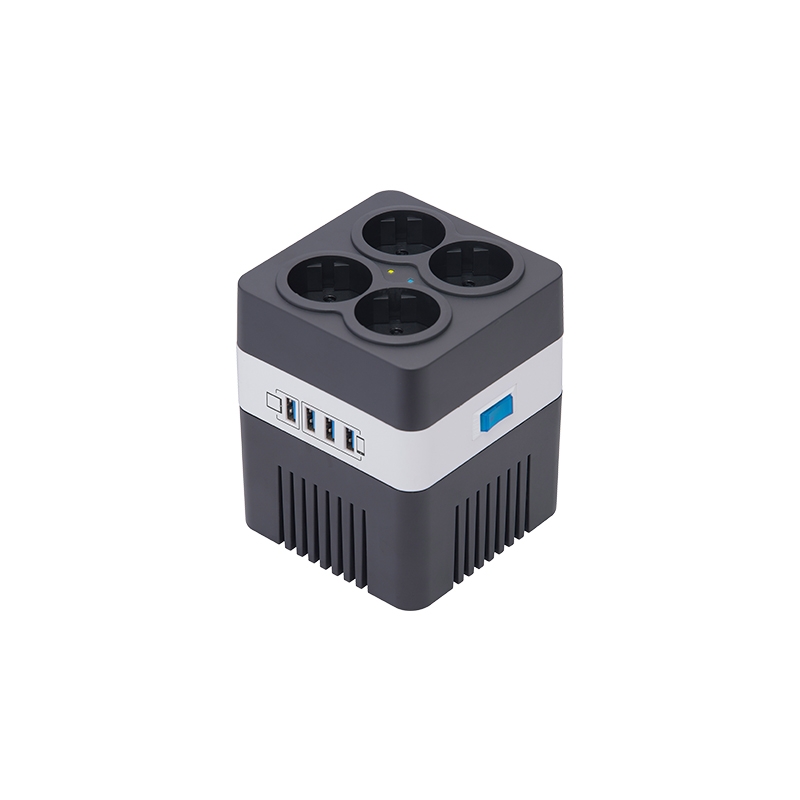

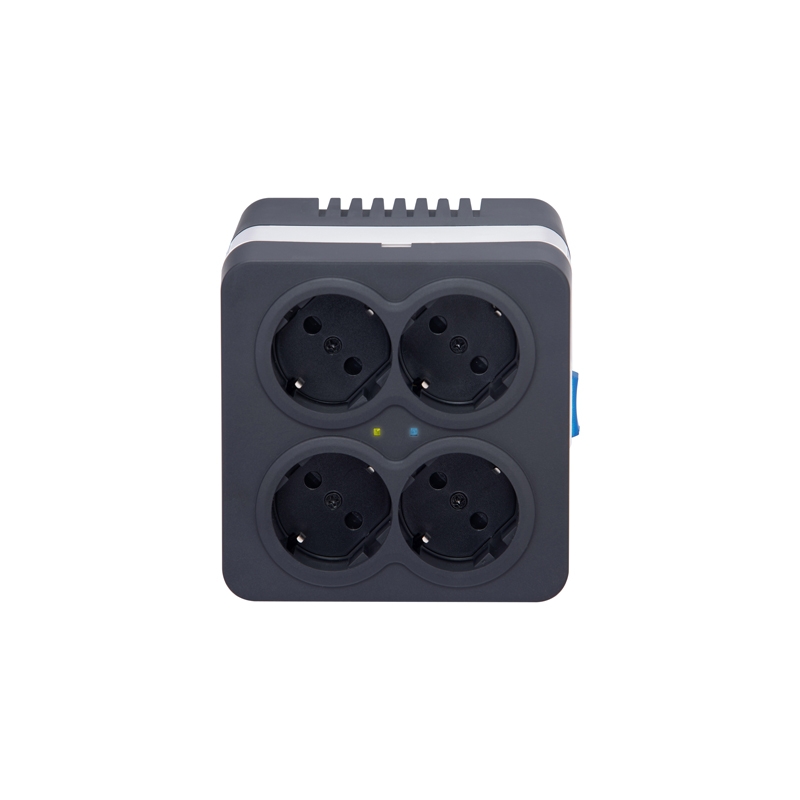

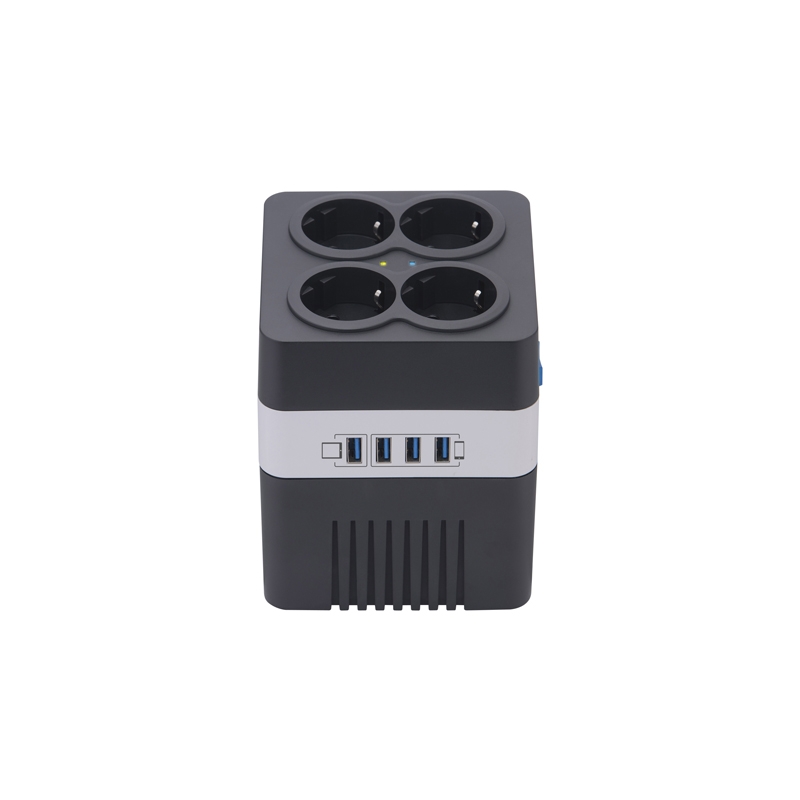

AVR I-477(U) series is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, or spikes. It provides 4 AVR regluated outlets as well as 4 smart USB chargers 5VDC 2.4A max.
Ranging 300W/400W/500W integrated with 2-steps regulation, 4 AVR regulated outlets on top panel, LED indicators in a compacted stand-alone unit, I-477(U) series AVR fits into limited desktop perfectly to provide overall protections for PC, gaming consoles and other sensitive electronics.

AVR I-477U Series 600VA-1000VA (2-steps Regulation)

  • Smart USB charger 4 ports 5VDC 2.4A max. for iPhone, iPad, smartphones (Optional)
  • Delay reconnection 2 seconds / 10 seconds / 30 seconds (Optional)
  • Provide stable output voltage through boost and buck stabilizer
  • Built-in thermal switch for over-temperature protection
  • Provide overload protection and surge protection
  • User-friendly visual LED status indicators
  • Anti-flammable plastic housing
  • Art style colorful design
MODEL I-477(U)-600 I-477(U)-800 I-477(U)-1000
CAPACITY 600VA/300W 800VA/400W 1000VA/500W
INPUT
Voltage 220/230/240Vac
Voltage Range 176-276Vac
Frequency 50/60Hz
OUTPUT
Nominal Voltage 220/230/240Vac
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles German/UK/Universal: 4pcs AVR regulated plus surge protected
Smart USB Charger (Optional) 4 ports, 5VDC 2.4A max.
Delay Reconnection (Optional) 2 seconds/ 10 seconds/ 30 seconds (set via dip switch)
Protection Overload protection: Manual reset circuit switch
Over-temperature protection: Thermal switch
Surge protection: MOV 14D471K *1pc supporting 175 joules surge protection
INDICATORS
Power On/Off LED Blue
Regulation Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 115*115*143mm
**Product specifications are subject to change without further notice.
