AVR-Relay Type

> Products > AVR-Relay Type > AVR I-468 Series
600VA-1000VA

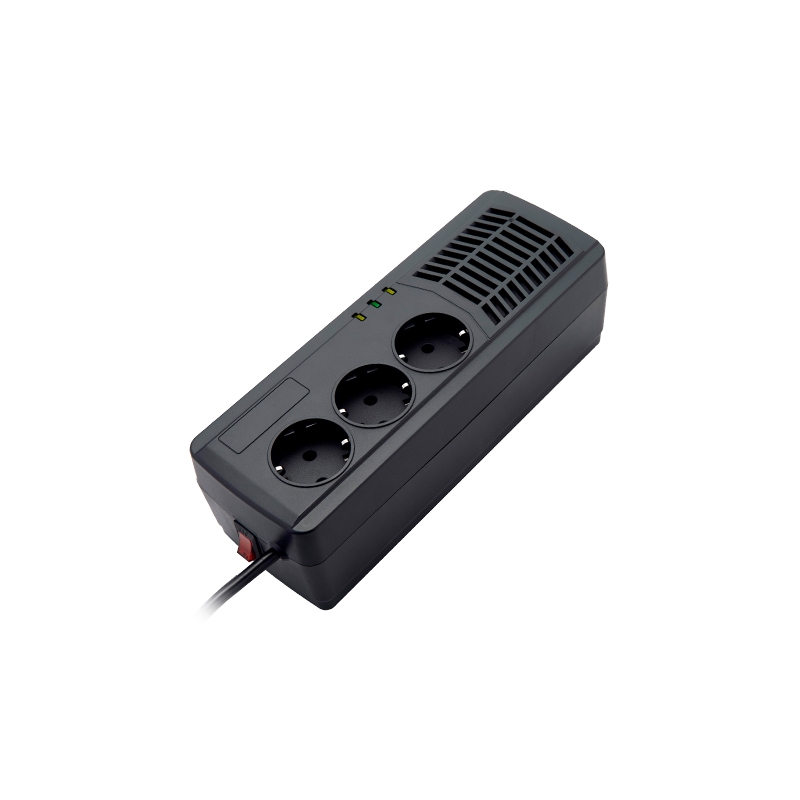

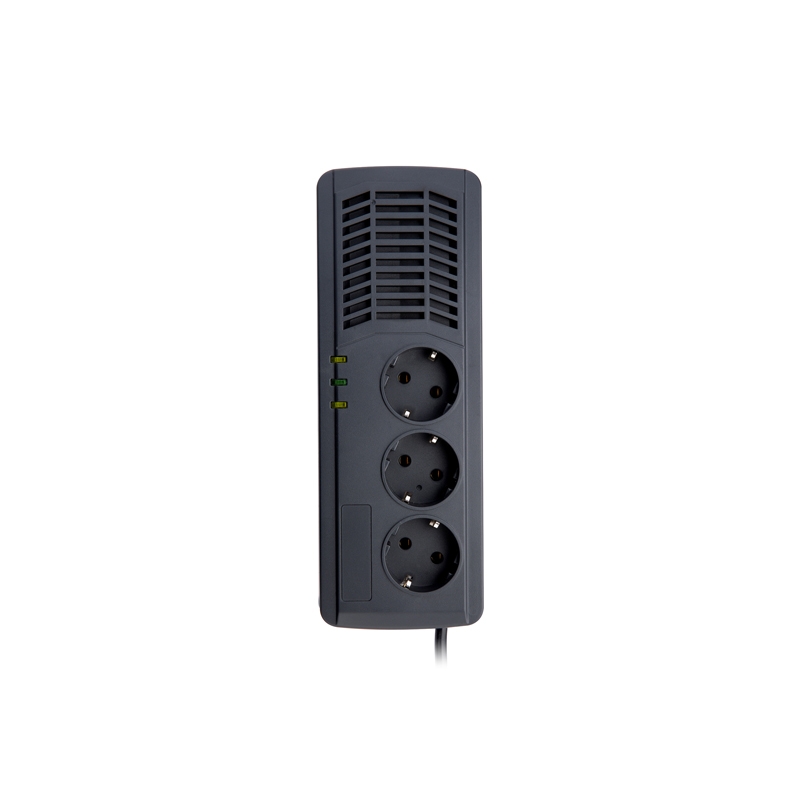

AVR I-468 Series
600VA-1000VA

AVR I-468 series offers 1-step boost and 1-step buck voltage regulation to stabilize output voltage for protecting connected devices from mains instability.
It equipped with 3pcs outlets, embedded with 3 comprehensive LED indicators.
To ensure safety when devices connection, AVR I-468 series embedded with 2-in-1 breaker and thermal switch for overloaded and over-temperature protection.
Built-in 2 sec / 10 sec / 30 sec selectable time reconnection provides protection against power-back surges commonly experienced after resumption of power in a power cut situation. The AVR I-468 series offers you an ideal choice to protect sensitive electronics in home or office.

AVR I-468 Series 600VA-1000VA (2-steps Regulation)

  • Delay time reconnection(2/10/30sec.) prevents devices from powerful surges
  • Provide stable output voltage through boost and buck stabilizer
  • Built-in thermal switch for over-temperature protection
  • Provide overload & short circuit protection
  • User-friendly visual LED status indicators
MODEL I-468-600 I-468-800 I-468-1000
CAPACITY 600VA/300W 800VA/400W 1000VA/500W
INPUT
Voltage 220/230/240Vac
Voltage Range 172-276Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles Schuko socket *3pcs for AVR & Surge protected
Protection Overload/Short Circuit: Manual reset circuit switch
Over-temperature: Thermal switch
PROTECTION
Delay Reconnection 2 seconds / 10 seconds / 30 seconds
INDICATORS
Power On/Off LED Green
Boost LED Yellow
Buck LED Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
**Product specifications are subject to change without further notice.

AVR I-468 Series 600VA-1000VA
