AVR-Relay Type

> Products > AVR-Relay Type > AVR I-110 Series
600VA-1000VA

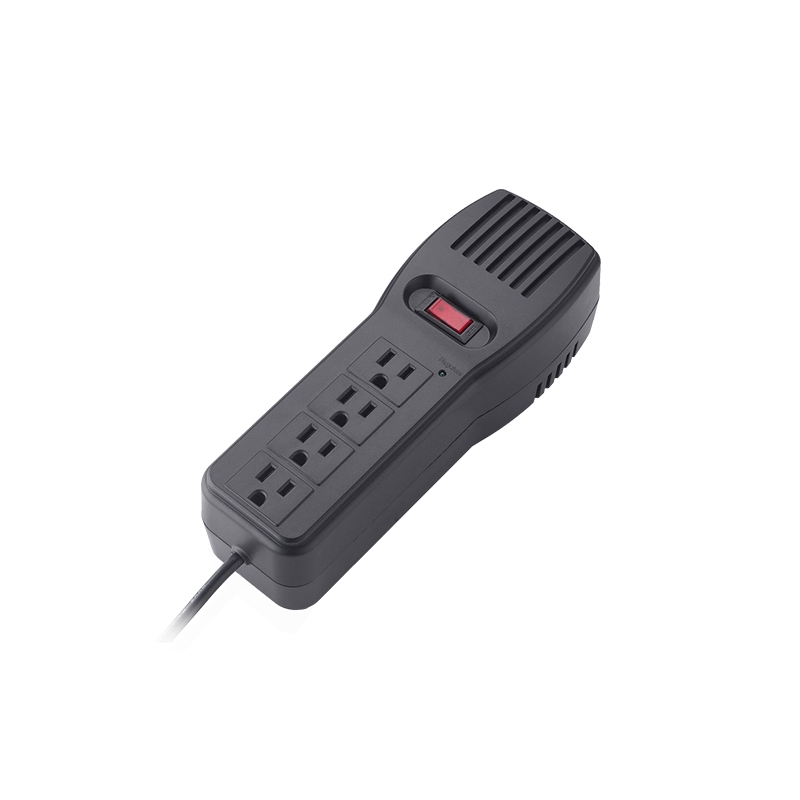

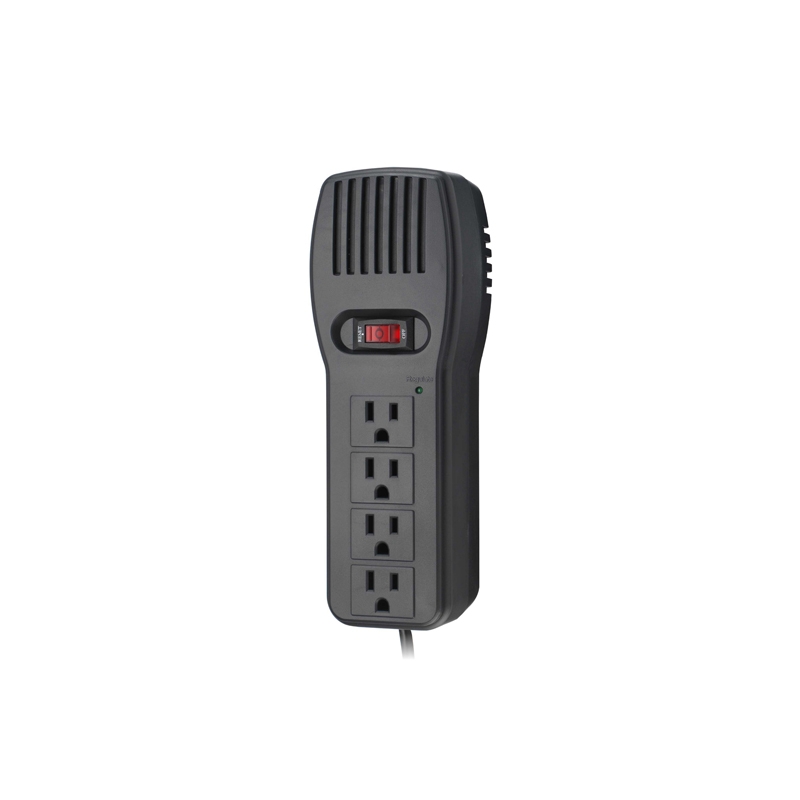

AVR I-110 Series
600VA-1000VA

AVR I-110 series offers 2-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
Multiple sockets can prevent more devices from the danger of power unstability.
To ensure safety of devices connection, AVR I-110 series embedded with thermal switch for over-temperature protection. Futhermore, built-in RJ-45 port offers best protection for Modem and router.

AVR I-110 Series 600VA-1000VA (2-steps Regulation)

  • Provide stable output voltage through boost and buck stabilizer
  • Four output receptacles Nema5-15R or Universal Nema type
  • Built-in thermal switch for over-temperature protection
  • Provide overload and short circuit protection
  • Fire retardant plastic material
  • Wall mounting holes
MODEL I-110-600 I-110-800 I-110-1000
CAPACITY 600VA/300W 800VA/400W 1000VA/500W
INPUT
Voltage 110/115/120Vac or 220Vac
Voltage Range 110/115/120Vac: 92-138Vac ; 220Vac: 184-276Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles Nema5-15R or Universal Nema: 4pcs AVR regulated plus surge protected
Protection Overload/short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
Surge protection: 175 Joules
INDICATORS
Power On/Off LED Green
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 222*100*75mm
**Product specifications are subject to change without further notice.

AVR I-110 Series 600VA-1000VA

Brochure   Download
