AVR-Relay Type

> Products > AVR-Relay Type > AVR I-131 Series
1000VA-2000VA

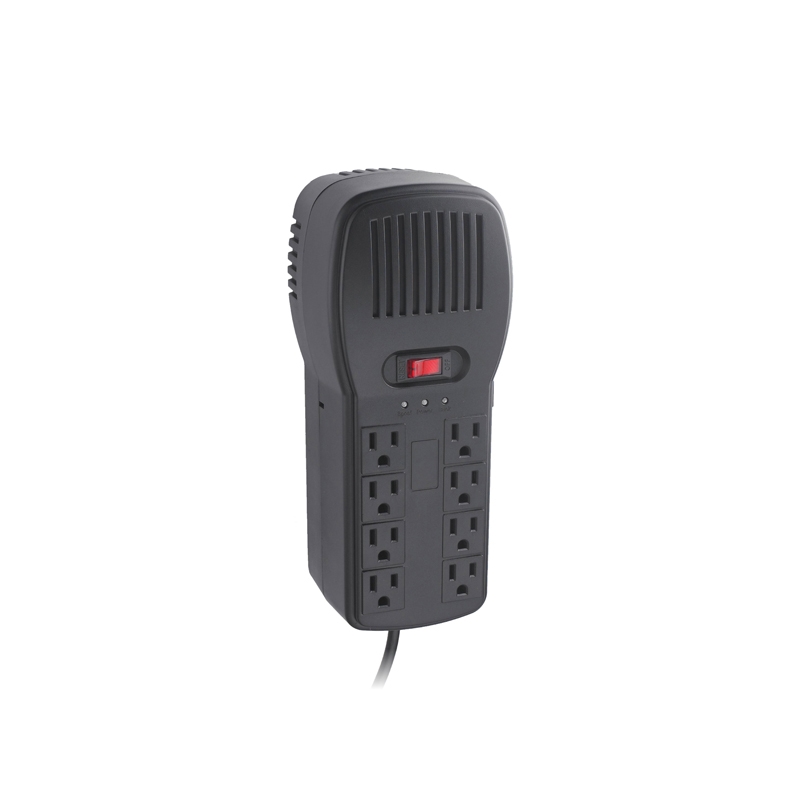

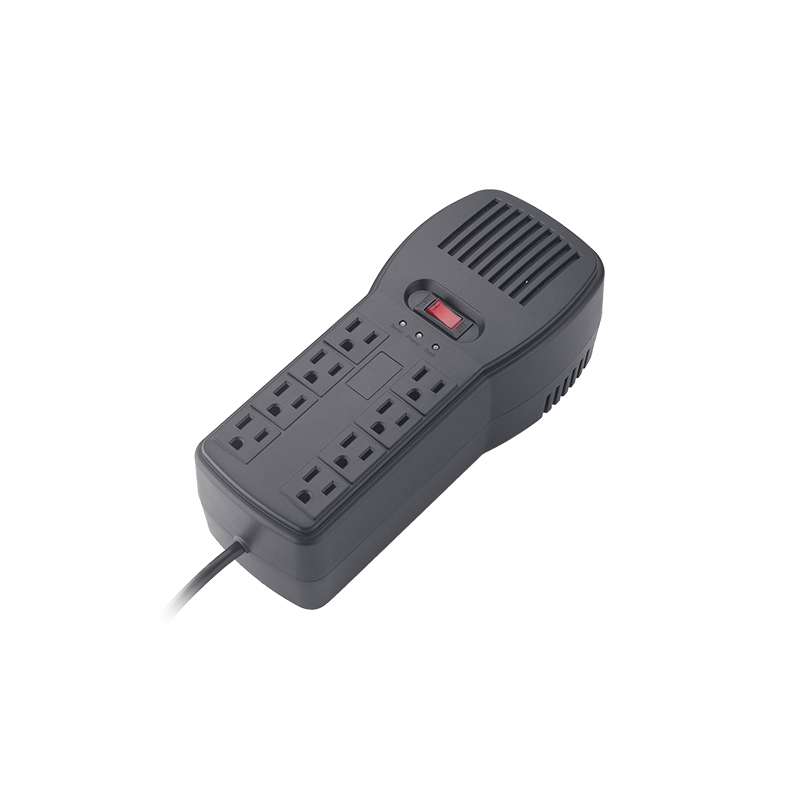

AVR I-131 Series
1000VA-2000VA

AVR I-131 series offers 2-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
To ensure safety of devices connection, I-131 series embedded with thermal switch for over-temperature protection.
Multiple sockets can prevent more devices from the danger of power unstability.

AVR I-131 Series 1000VA-2000VA

  • Provide stable output voltage through boost and buck stabilizer
  • Eight output receptacles Nema5-15R or Universal Nema type
  • Built-in thermal switch for over-temperature protection
  • Provide overload and short circuit protection
  • Fire retardant plastic material
  • Wall mounting holes
MODEL I-131-1000 I-131-1500 I-131-2000
CAPACITY 1000VA/500W 1500VA/750W 2000VA/1000W
INPUT
Voltage 110/115/120Vac or 220Vac
Voltage Range 110/115/120Vac: 92-138Vac ; 220Vac: 184-276Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles Nema5-15R or Universal Nema: 8pcs AVR regulated plus surge protected
Protection Overload/short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
Surge protection: 175 Joules
INDICATORS
Power On/Off LED Green
Boost LED Yellow
Buck LED Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 265*110*95mm
**Product specifications are subject to change without further notice.

AVR I-131 Series 1000VA-2000VA
