AVR-Relay Type

> Products > AVR-Relay Type > AVR I-215U Series
600VA-1000VA

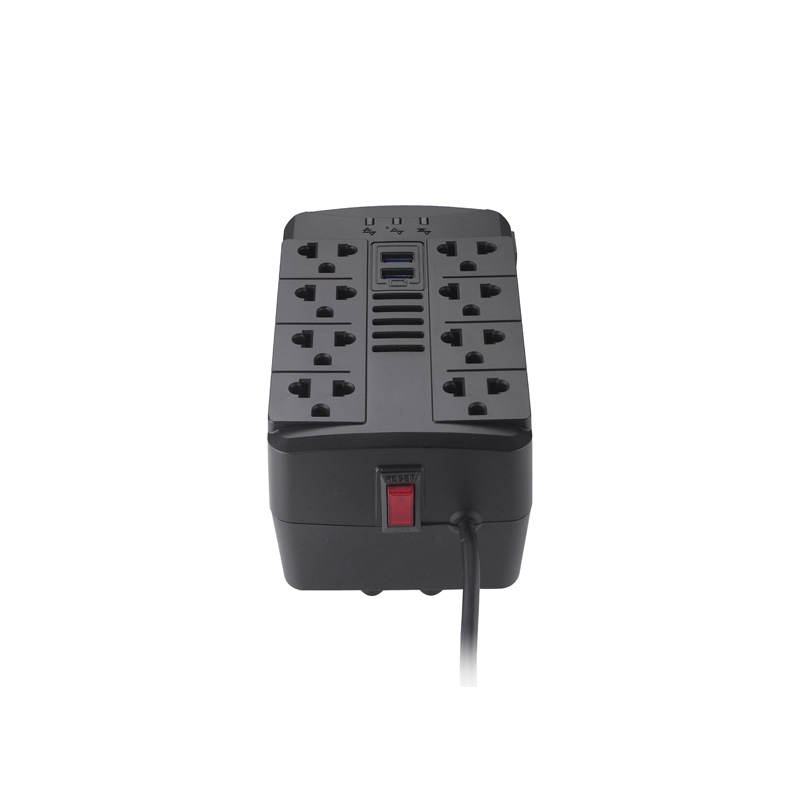

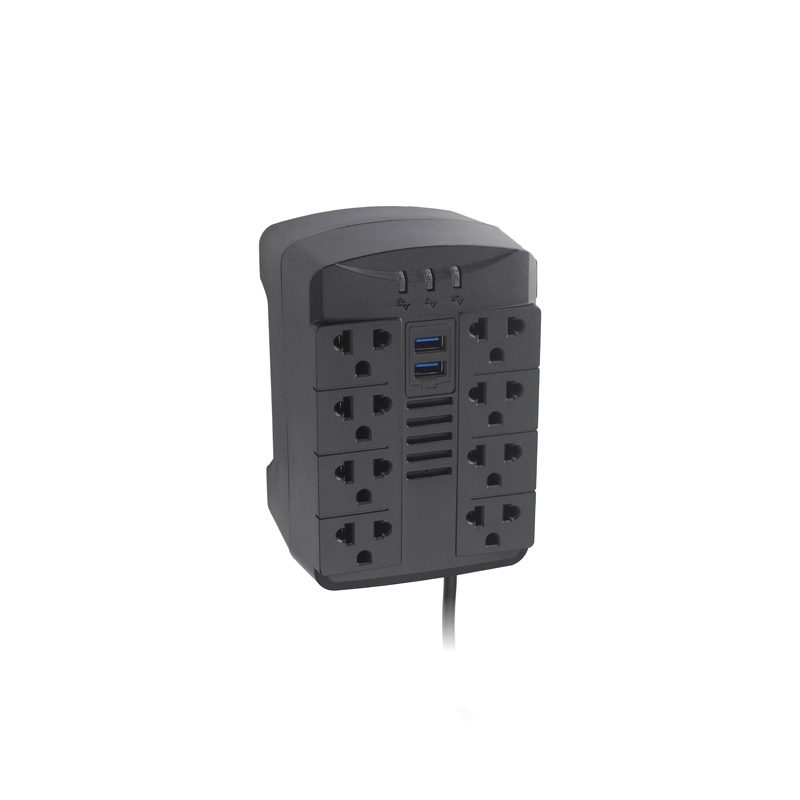

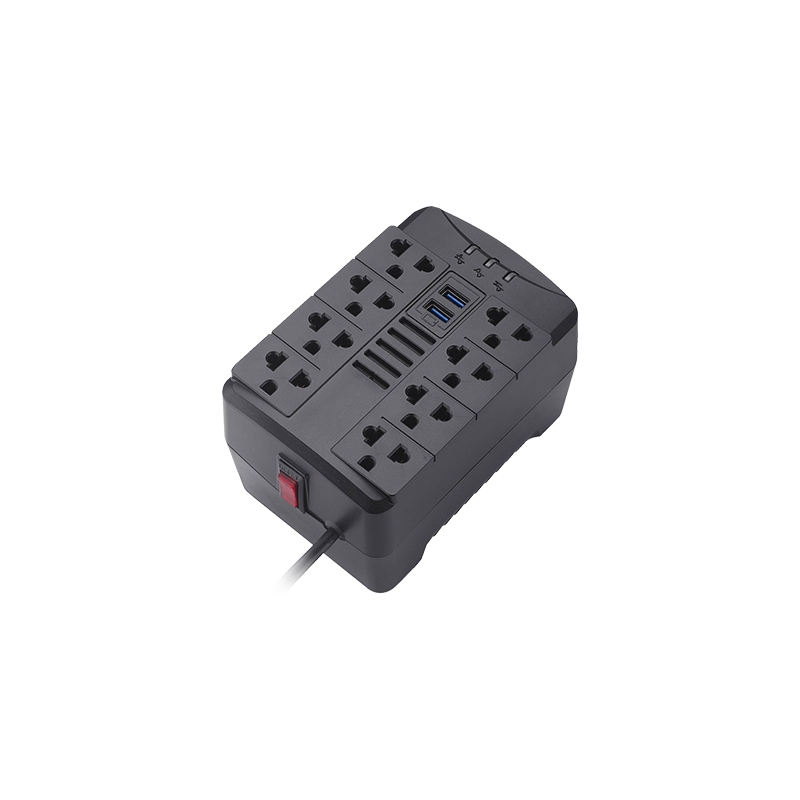

AVR I-215U Series
600VA-1000VA

AVR I-215U series offers 2-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
To ensure safety of devices connection, I-215U series embedded with thermal switch for over-temperature protection.
Also, 5VDC 2.1A max USB charger is offered for smart phones and tablet charging.

AVR I-215U Series 600VA-1000VA

  • 5VDC USB charging ports 2.1A max. for iPhone / iPad / smartphones
  • Provide stable output voltage through boost and buck stabilizer
  • Eight output receptacles Nema5-15R or Universal Nema type
  • Built-in thermal switch for over-temperature protection
  • Provide overload and short circuit protection
  • Fire retardant plastic material
MODEL I-215U-600 I-215U-800 I-215U-1000
CAPACITY 600VA/300W 800VA/400W 1000VA/500W
INPUT
Voltage 110/115/120Vac or 220Vac
Voltage Range 110/115/120Vac: 92-138Vac ; 220Vac: 184-276Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles Universal Nema: 4pcs AVR regulated plus surge protected + 4pcs surge protected only
5VDC USB Charging Port 2 ports 2.1A max.
Protection Overload/Short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
Surge protection: 175 Joules
INDICATORS
Power On/Off LED Green
Boost LED Yellow
Buck LED Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 100*156*105mm
**Product specifications are subject to change without further notice.

AVR I-215U Series 600VA-1000VA
