AVR-Relay Type

> Products > AVR-Relay Type > AVR I-332U Series
600VA-1000VA

AVR I-332U Series
600VA-1000VA

AVR I-332U series provides 2-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
To ensure safety of devices connection, I-332U series embedded with thermal switch for over-temperature protection.
Multiple sockets can prevent more devices from the danger of power unstability. Also, 5VDC 2.4A max USB charger is offered for smart phones and tablet charging.

AVR I-332U Series 600VA-1000VA (2-steps Regulation)

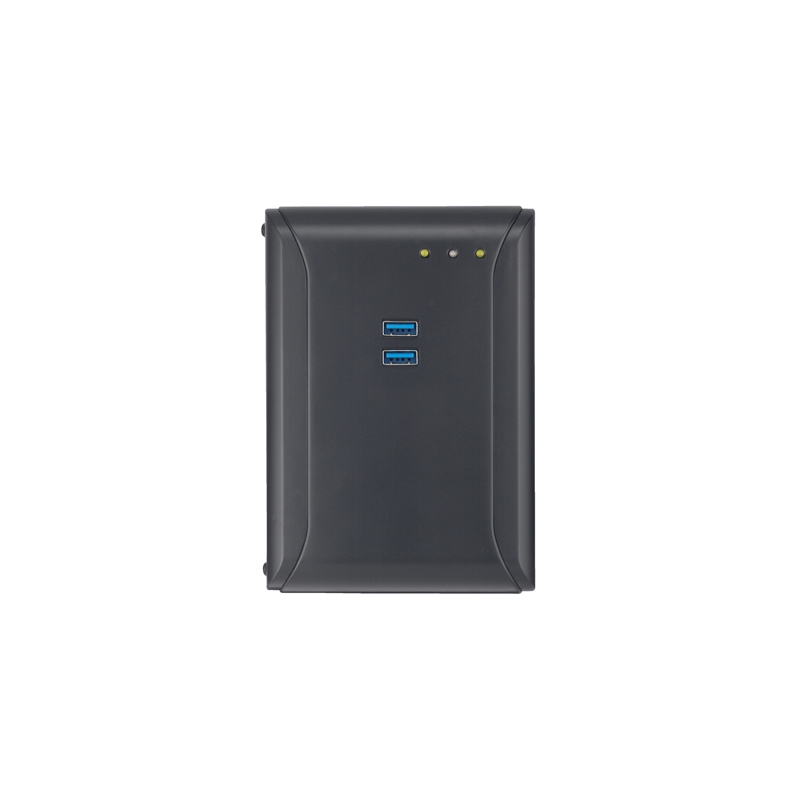

  • 5VDC USB charging ports 2.4A max. for iPhone / iPad / smartphones
  • Provide stable output voltage through boost and buck stabilizer

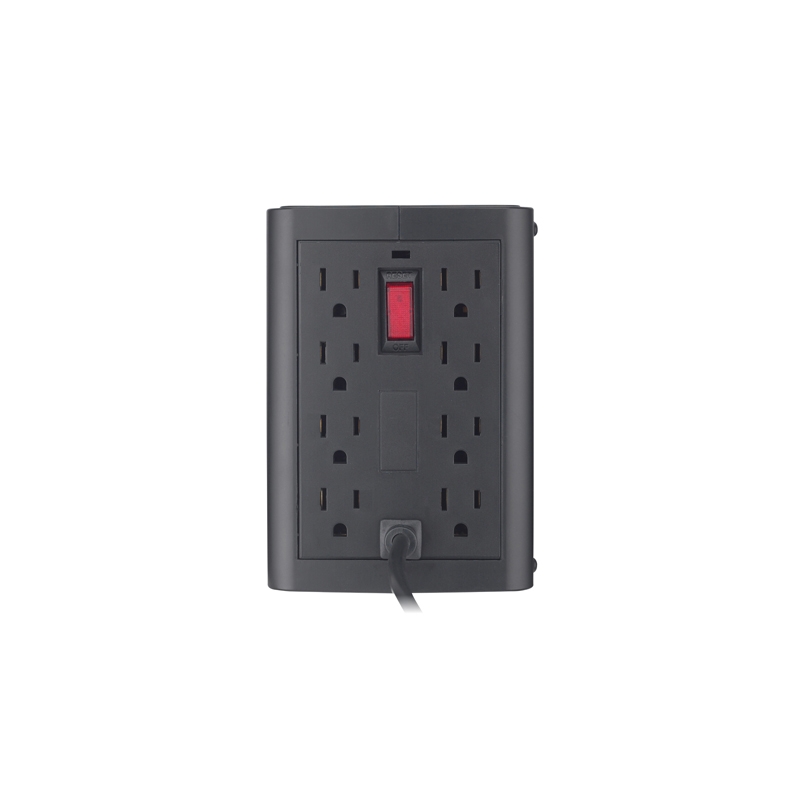

  • Eight output receptacles Nema5-15R or Universal Nema type
  • Built-in thermal switch for over-temperature protection
  • Provide overload and short circuit protection
  • Fire retardant plastic material
MODEL I-332U-800 I-332U-1200 I-332U-2000
CAPACITY 800VA/400W 1200VA/600W 2000VA/1000W
INPUT
Voltage 110/115/120Vac or 220Vac
Voltage Range 110Vac: 88-136Vac ; 115Vac: 92-142Vac ; 120Vac: 96-148Vac ; 220Vac:176-272Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 2-steps (1-step Boost & 1-step Buck)
Output Receptacles 8pcs Nema 5-15R Outlets
5VDC USB Charging Port 2 ports 2.4A max.
Protection Surge protection: 175 Joules
Overload/Short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
INDICATORS
Power On/Off LED Green
Boost LED Yellow
Buck LED Yellow
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 107*107*153mm
**Product specifications are subject to change without further notice.

AVR I-332U Series 600VA-1000VA
