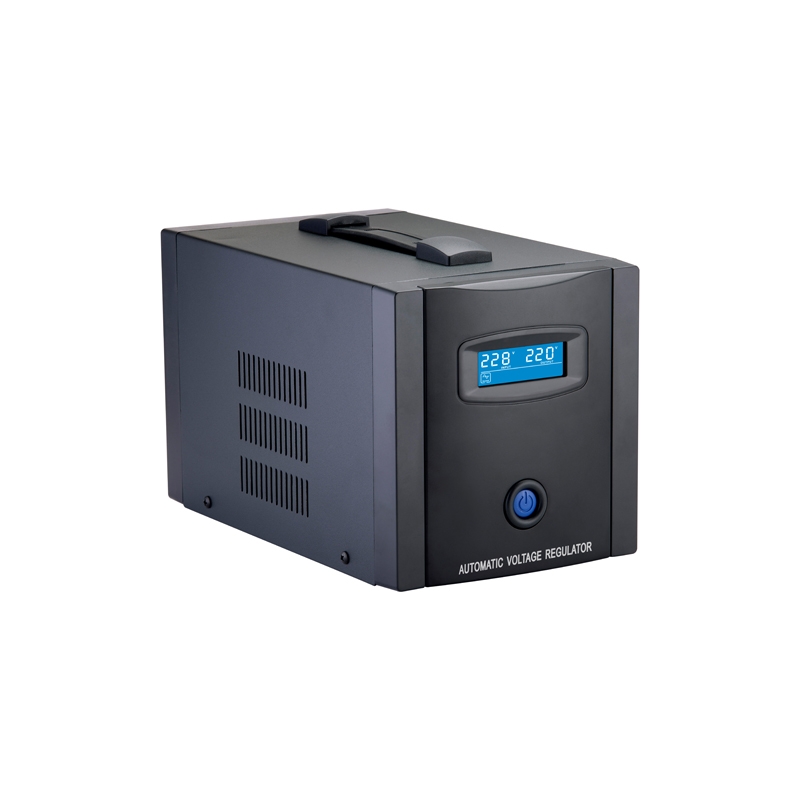

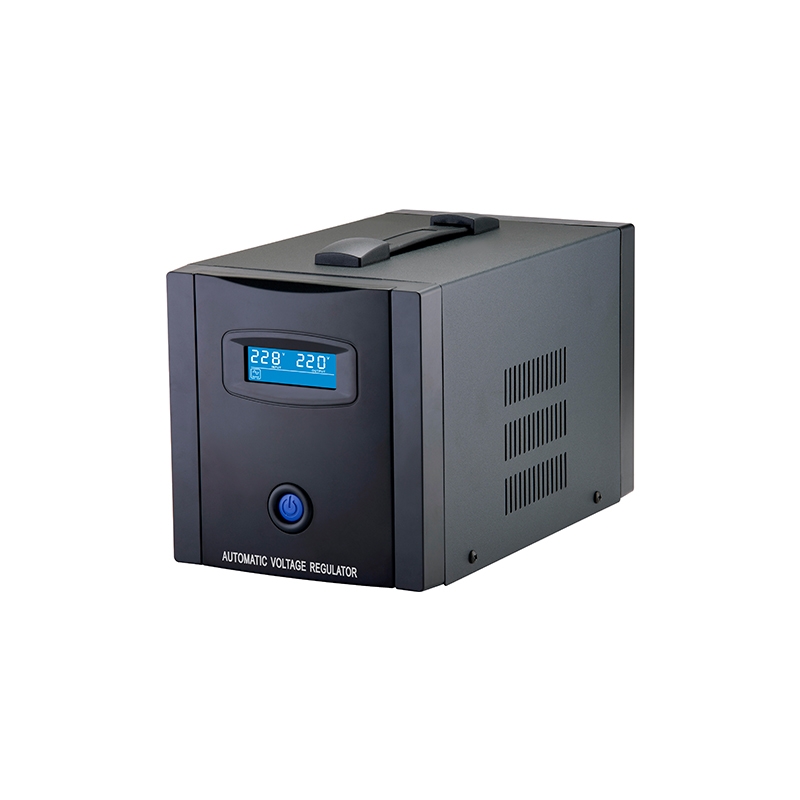

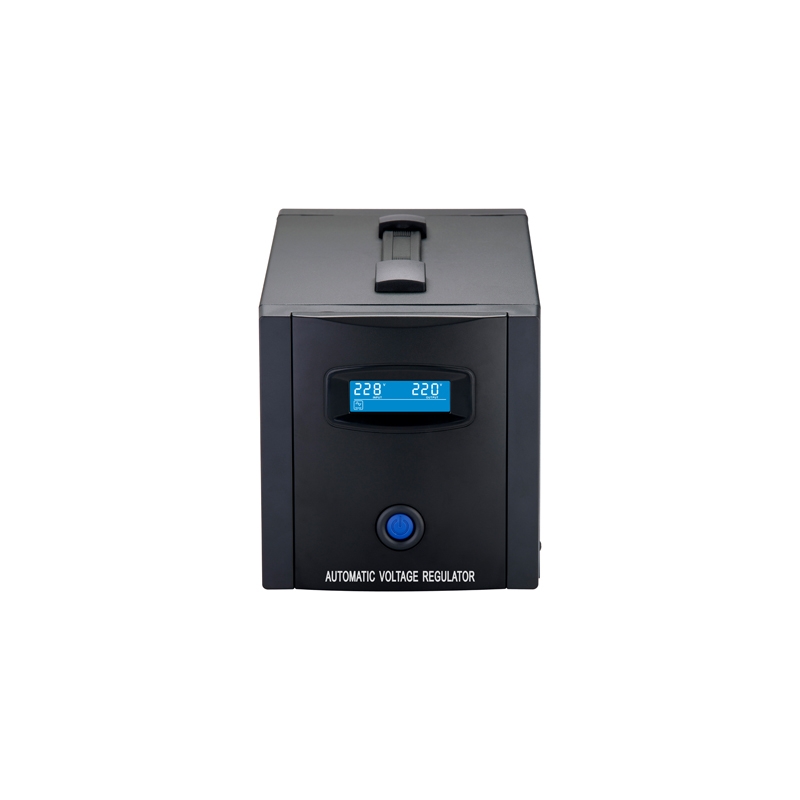

PS Pro L7 Series 3000VA-5000VA
AVR-Relay Type
PS Pro L7 Series3000VA-5000VA
Power Star Pro 3KVA-5KVA series provides 7-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
With user-friendly LCD display, users acknowledge AVR status more easily.
To ensure safety of devices connection, Power Star Pro 3-5KVA series embedded with thermal switch for over-temperature protection.
With time-delay function, it can avoid connected devices from sudden electrical surges when power is recovered.
PS Pro Series 3000VA-5000VA (7-steps Regulation)
- Comprehensive LCD display shows detailed information of AVR status
- Provide stable output voltage through boost and buck stabilizer
- Built-in thermal switch for over-temperature protection
- Provide modem / phone line surge protection
- Provide overload & short circuit protection
- Accept wide input range
- Metal housing
| MODEL | PS Pro-3000L7 | PS Pro-4000L7 | PS Pro-5000L7 | ||||
| CAPACITY | 3000VA/1500W | 4000VA/2000W | 5000VA/2500W | ||||
| INPUT | |||||||
| Voltage | 110/115/120Vac or 220/230/240Vac | ||||||
| Voltage Range | 110/115/120Vac: 70-147Vac ; 220/230/240Vac: 140-295Vac | ||||||
| Frequency | 50/60Hz | ||||||
| OUTPUT | |||||||
| Steps of Regulation | 7-steps (4-steps Boost & 3-steps Buck) | ||||||
| Regulation | +/-5% | ||||||
| Output Receptacles | Nema5-15R: 8pcs AVR regulated & surge protected | ||||||
| Universal Nema: 8pcs AVR regulated & surge protected | |||||||
| German: 6pcs AVR regulated & surge protected | |||||||
| Universal: 6pcs AVR regulated & surge protected | |||||||
| Protection | Network surge suppression: RJ-45 | ||||||
| Overload/Short circuit: Manual reset circuit switch | |||||||
| Over-temperature: Thermal switch | |||||||
| INDICATORS | |||||||
| LCD Display | Input voltage, Output voltage, Normal/Low Volt./Boost/Buck/High Volt./Overheat/Overload/Delay information | ||||||
| ENVIRONMENT | |||||||
| Humidity | 0-95% (Non-condensing) | ||||||
| Noise Level | Less than 40dB at 1M | ||||||
| PHYSICAL | |||||||
| Dimension | 250*157*157mm | ||||||
| Net Weight | 4.5kgs | 5.25kgs | 6.9kgs | ||||
| **Product specifications are subject to change without further notice. | |||||||
