AVR-Relay Type

> Products > AVR-Relay Type > PS Pro L3 Series
3000VA-5000VA

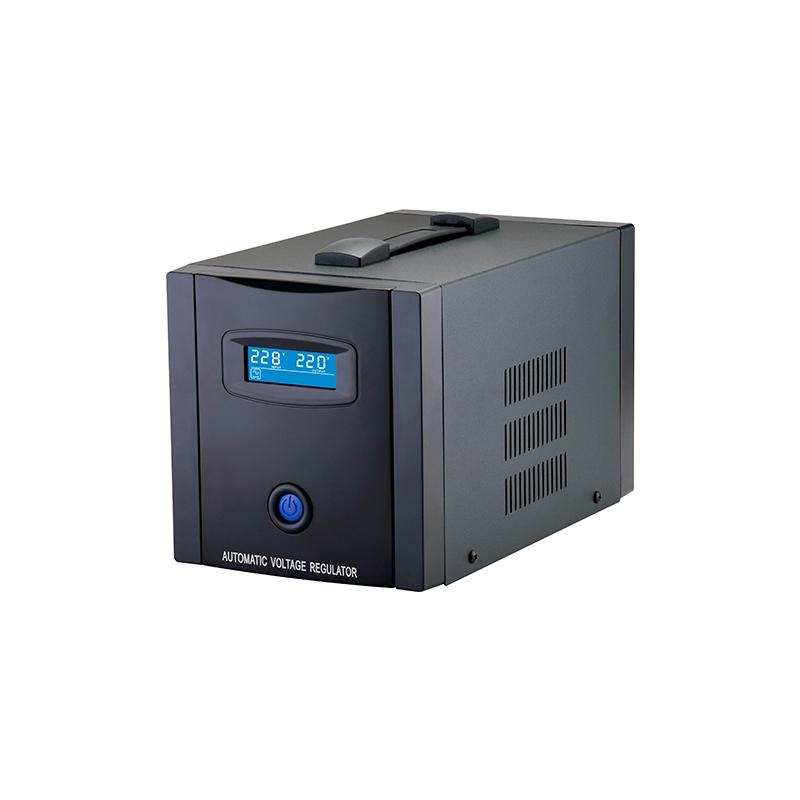

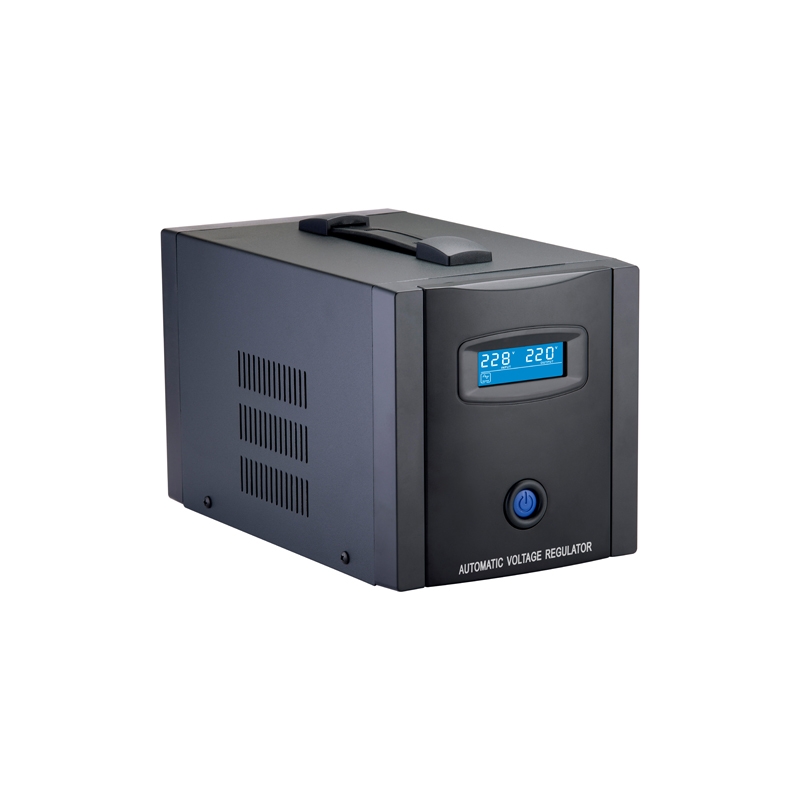

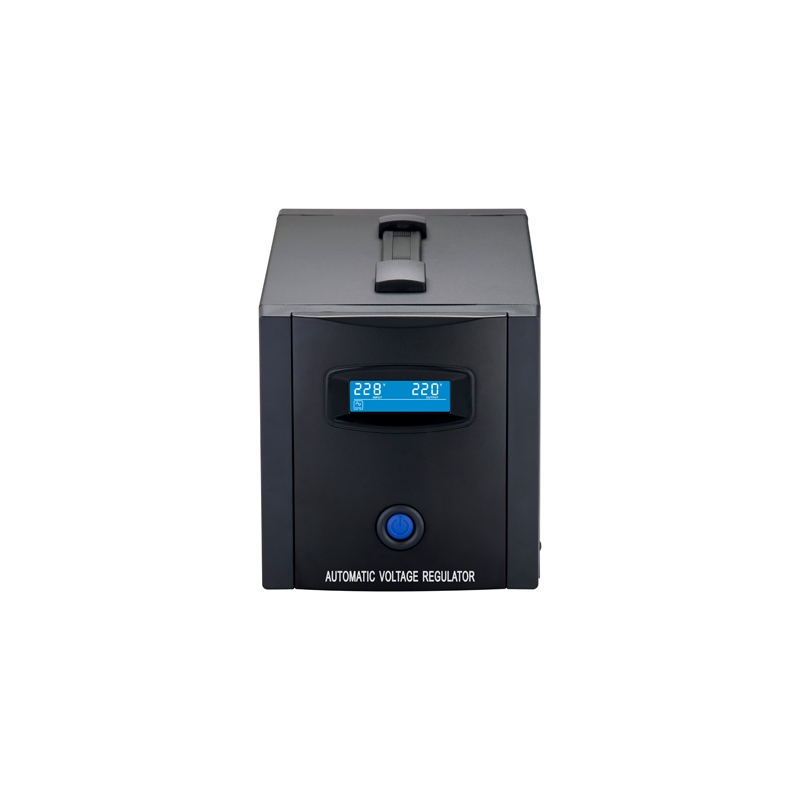

PS Pro L3 Series
3000VA-5000VA

Power Star L3 3KVA-5KVA series provides 3-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
To ensure safety of devices connection, Power Star 3-5KVA series embedded with thermal switch for over-temperature protection.

PS Pro Series 3000VA-5000VA (3-steps Regulation)

  • Provide stable output voltage through boost and buck stabilizer
  • Built-in thermal switch for over-temperature protection
  • Provide modem / phone line surge protection
  • Provide overload & short circuit protection
  • Comprehensive LCD display
  • Accept wide input range
  • Metal housing
MODEL PS Pro-3000L3 PS Pro-4000L3 PS Pro-5000L3
CAPACITY 3000VA/1500W 4000VA/2000W 5000VA/2500W
INPUT
Voltage 110/115/120Vac or 220/230/240Vac
Voltage Range 110/115/120Vac: 80-144Vac ; 220/230/240Vac: 161-288Vac
Frequency 50/60Hz
OUTPUT
Steps of Regulation 3-steps (2-steps Boost & 1-step Buck)
Regulation +/-10%
Output Receptacles Nema5-15R: 8pcs AVR regulated & surge protected
Universal Nema: 8pcs AVR regulated & surge protected
German: 6pcs AVR regulated & surge protected
Universal: 6pcs AVR regulated & surge protected
Protection Network surge suppression: RJ-45
Overload/Short circuit: Manual reset circuit switch
Over-temperature: Thermal switch
INDICATORS
LCD Display Input voltage, Output voltage, Normal/Low Volt./Boost/Buck/High Volt., Overheat, Overload, Delay information
ENVIRONMENT
Humidity 0-95% (Non-condensing)
Noise Level Less than 40dB at 1M
PHYSICAL
Dimension 250*157*157mm
Net Weight 4.5kgs 5.25kgs 6.9kgs
**Product specifications are subject to change without further notice.

PS Pro L3 Series 3000VA-5000VA

Brochure   Download



PS Pro L3 Series 3000VA-5000VA

Manual      Download





Back Page
