AVR-Relay Type

> Products > AVR-Relay Type > AVR I-628 LCD Series
2000VA & 3000VA

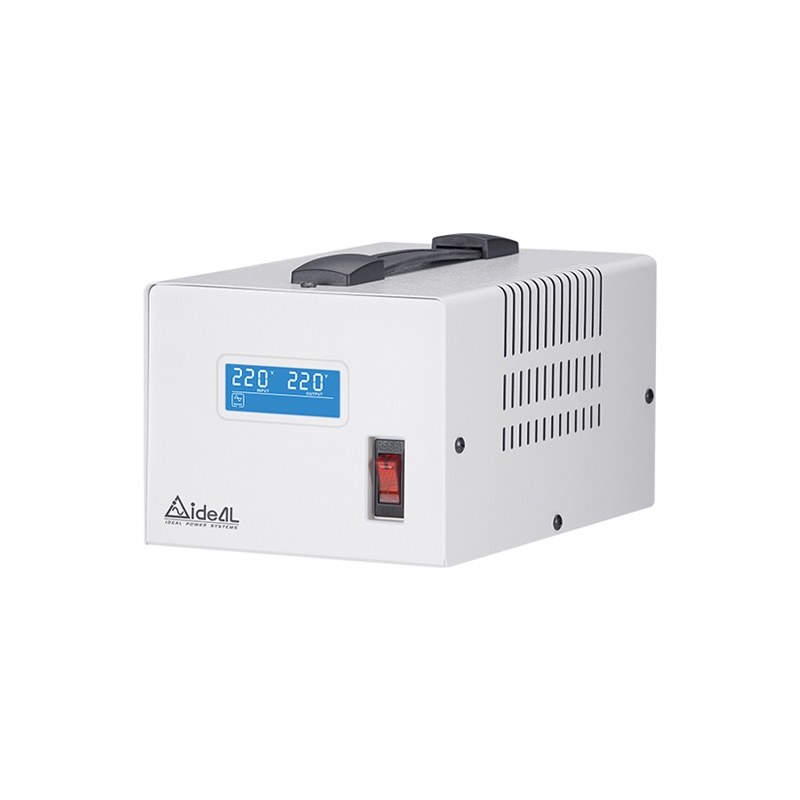

AVR I-628 LCD Series
2000VA & 3000VA

AVR I-628 2K-3KVA series provides 2-steps voltage regulation to stabilize output voltage for protecting connected devices from damage.
With user-friendly LCD display, users acknowledge AVR status more easily.
To ensure safety of devices connection, AVR I-628 series embedded with thermal switch for over-temperature protection.

AVR I-628 Series 2000VA & 3000VA (2-steps Regulation/LCD Display)

  • Provide stable output voltage through boost and buck stabilizer
  • Built-in thermal switch for over-temperature protection
  • Provide overload protection
  • Accept wide input range
  • Friendly LCD indicators
  • Metal housing
MODEL I-628-2000 I-628-3000
CAPACITY 2000VA/1200W 3000VA/1800W
INPUT
Nominal Voltage 110/115/120Vac or 208/220/230Vac
Voltage Range -18%, +16%
Frequency 50Hz or 60Hz (Auto-sensing)
Power Cord Specification Nema5-15P plug power cord
OUTPUT
Nominal Voltage 110/115/120Vac or 208/220/230Vac
Voltage Regulation +/-10%
Steps of Regulation 2-steps (1-step boost + 1-step buck)
Outlet: Nema5-15R 4pcs with AVR & surge protection

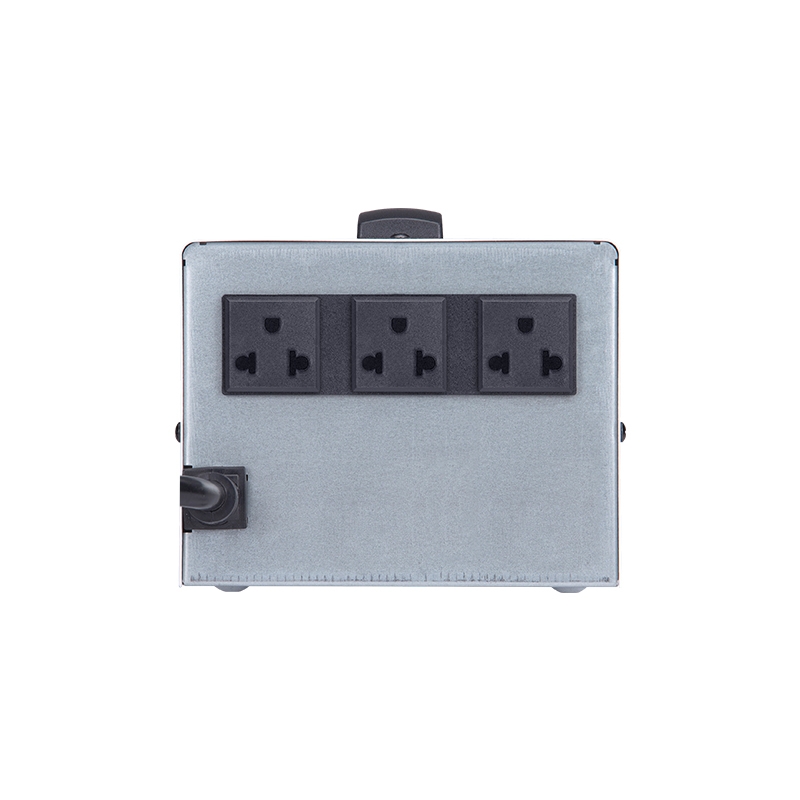

Outlet: Universal Nema 3pcs with AVR & surge protection
PROTECTION
Overload Manual Reset Circuit Switch
Over-temperature Thermal Switch
Surge Supression 175 Joules
INDICATORS
LCD Display Input voltage, Output voltage, Normal/Low Volt./Boost/Buck/High Volt., Overheat, Overload, Delay information
ENVIRONMENT
Operating Temperature 0°C-40°C
Relative Humidity <95% (Non-condensing)
Noise Level <40dB
**Product specifications are subject to change without further notice.

AVR I-628 LCD Series 2000VA & 3000VA
