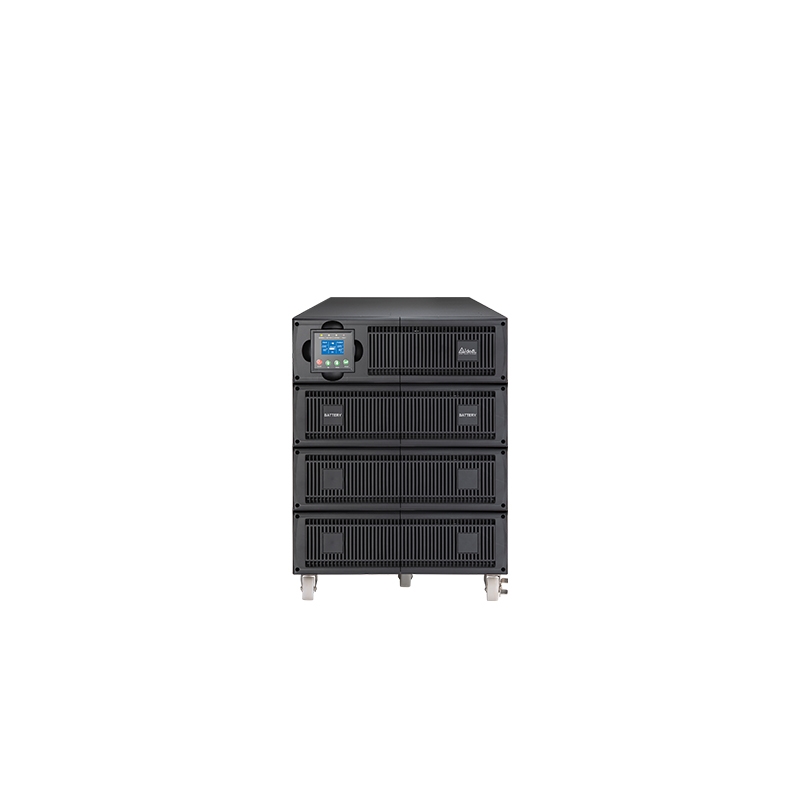

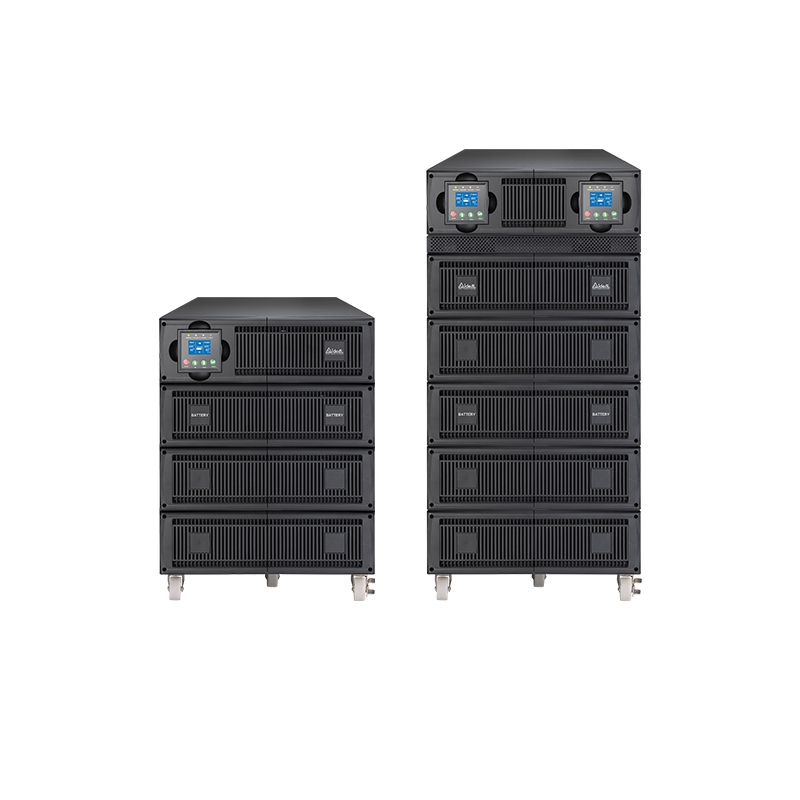

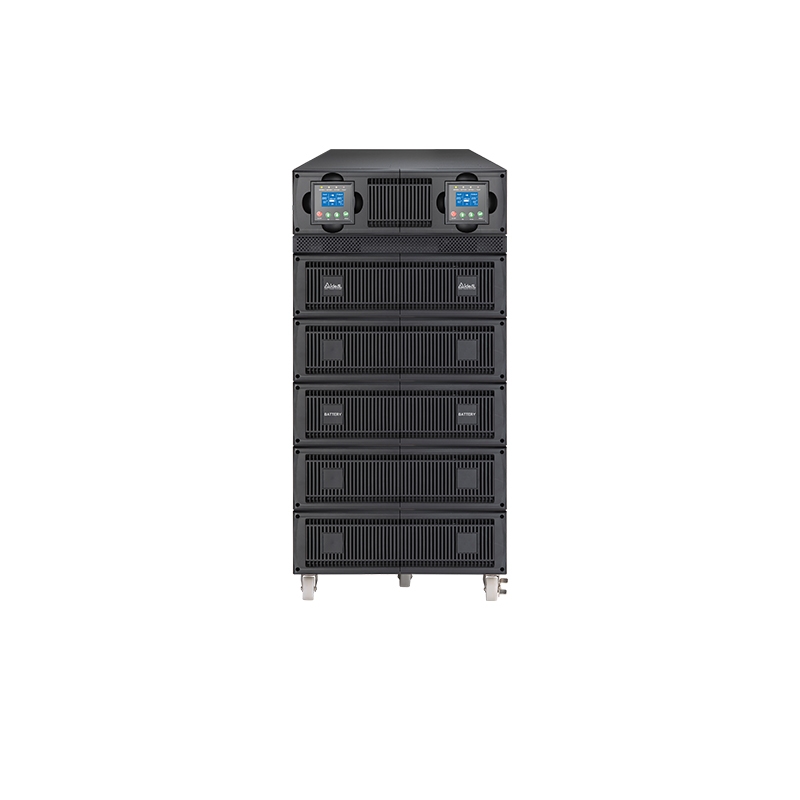

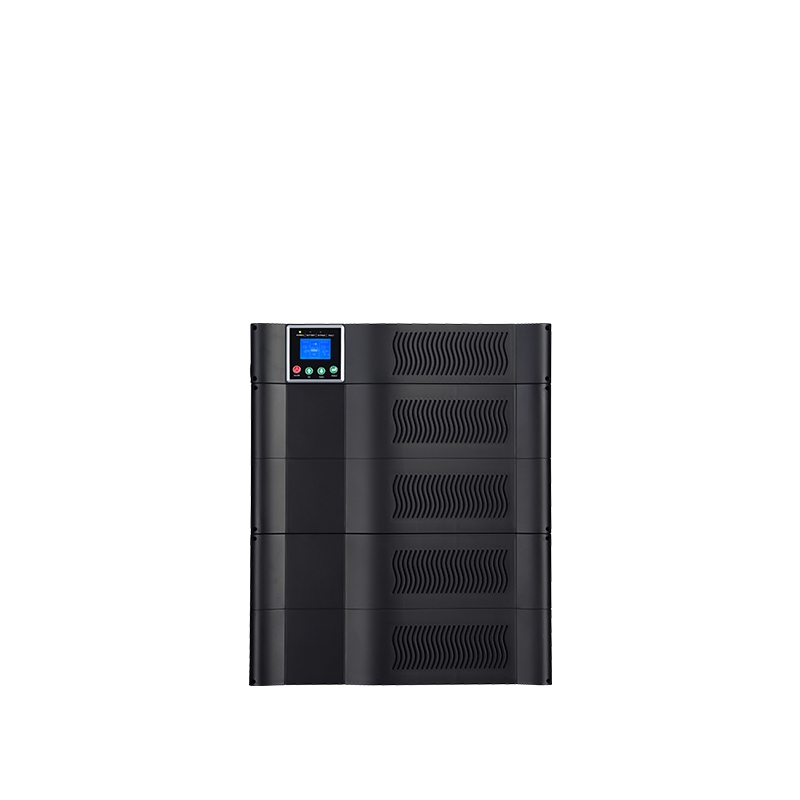

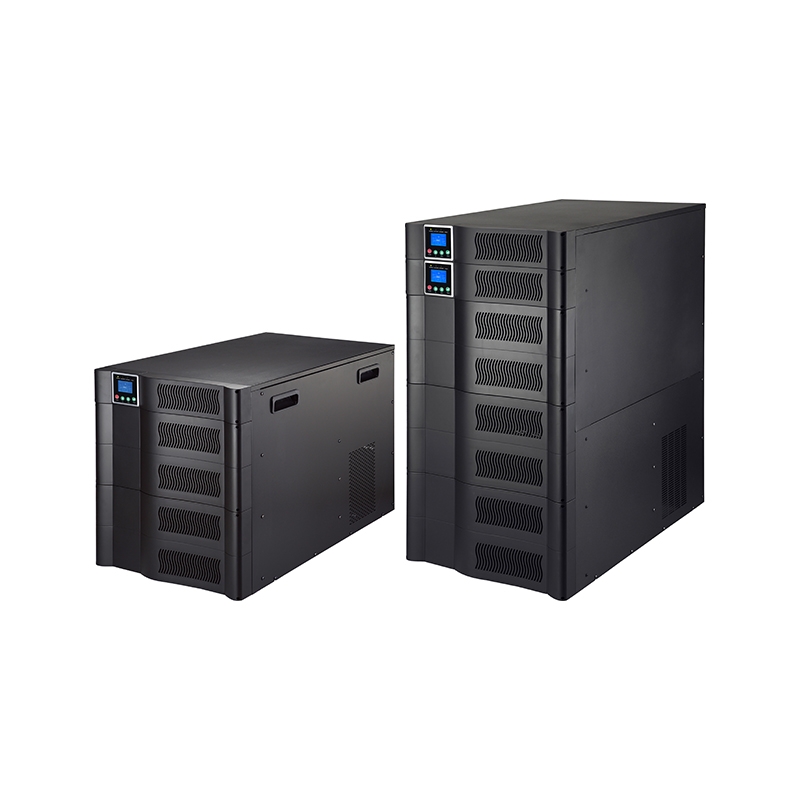

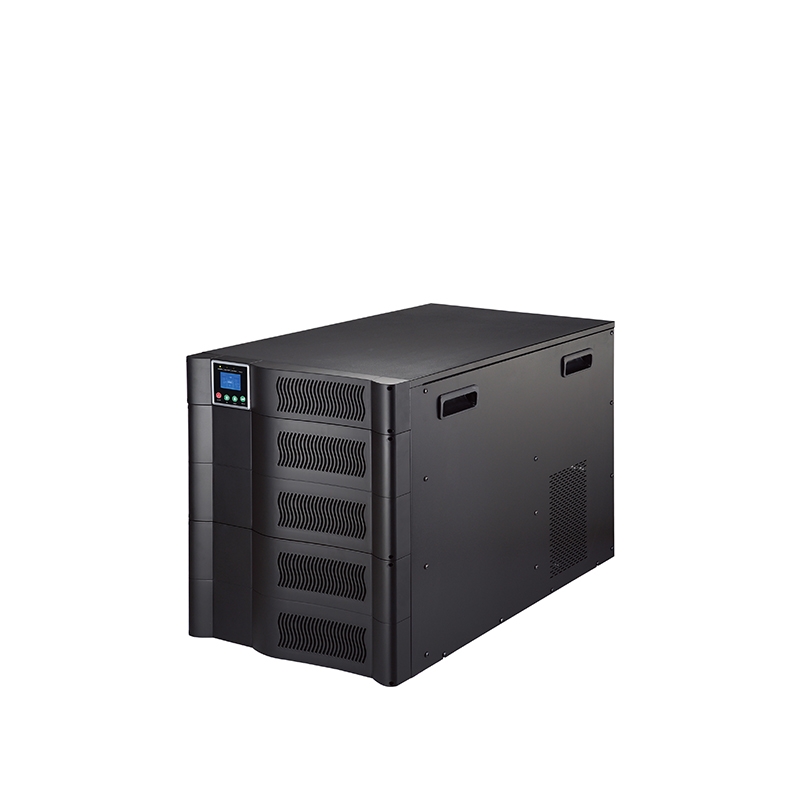

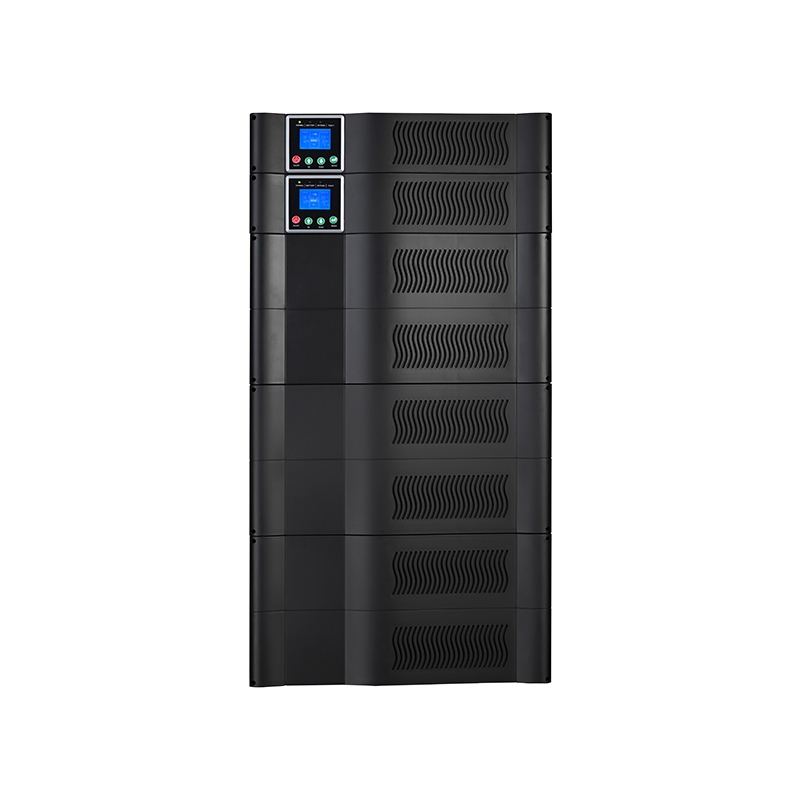

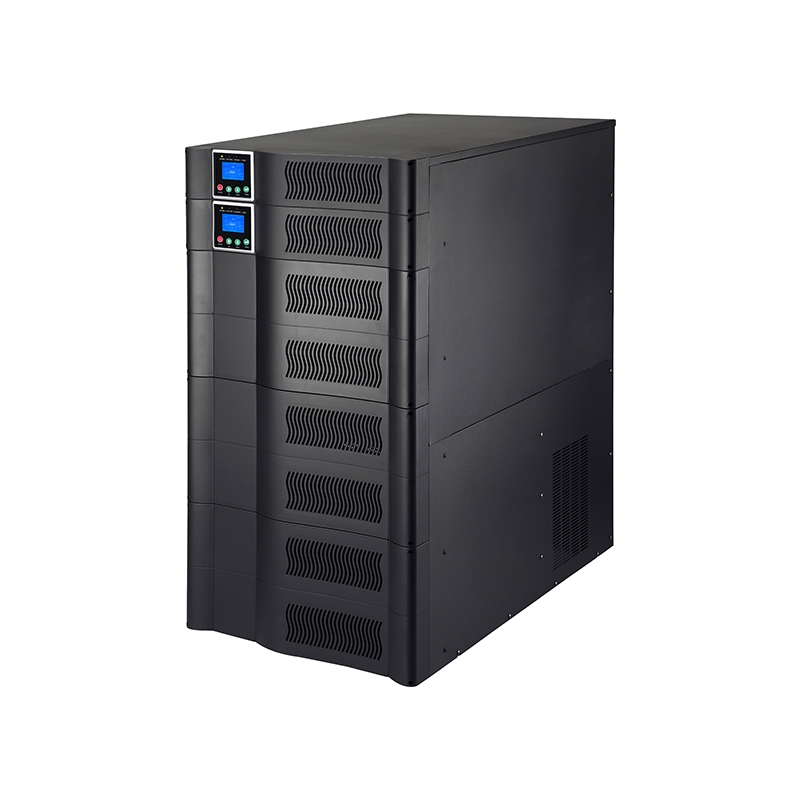

9300LRB Rack Series 6KVA-20KVA
Online UPS
9300LRB Series6KVA-20KVA
IDEAL-9300LRB 6-20KVA series is true sine wave double conversion On-line UPS model, design with rack mount or tower convertible cabinet, which provides output power factor 0.9 for high performance and efficiency.
Rack mount design cabinet is suitable for protecting high performance rack-mount servers or networking equipments located within a data center.
With Microprocessor control design, it lowers the defective rate of UPS to guarantee high reliability and to protect any critical applications.
9300LRB 6-20KVA series is available to install isolation transformer inside UPS cabinet for dual voltage output demand or for safety purpose.
With battery tray design inside UPS front panel, battery replacement and installation become easy and quick procedures.
4 same capacity UPS are available to connect in parallel max. for capacity expansion.
9300LRB Series 6-20KVA
- Individual power distribution unit (PDU) maintenance bypass switch (Optional for Input/Output: 220V, 230V, 240V)
- N+X parallel redundancy and capacity expansion (Optional)
- High performance true double conversion On Line UPS
- External battery bank to extend back-up time (Optional)
- Microprocessor control guarantees high reliability
- Low heat dissipation in long time operation
- Emergency power-off function (EPO)
- Input THDi <5% / Output THD <2%
- High efficiency mode (ECO mode)
- Isolation transformer (Optional)
- Maintenance bypass (Optional)
- Output voltage regulation <1%
- Automatic self-testing function
- Power management software
- Fan speed control & DC start
- Output power factor 0.9
| MODEL | IDEAL-9306LRB-12U | IDEAL-9310LRB-12U | IDEAL-9320LRB-19U | ||||
| CAPACITY | 6KVA/5.4KW | 10KVA/9KW | 20KVA/18KW | ||||
| INPUT | |||||||
| Phase | 1 Phase 2 Wires + Ground | ||||||
| Voltage | 208/220/230/240Vac | ||||||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||||||
| THDi | <5% with R Full Load | ||||||
| OUTPUT | |||||||
| Phase | 1 Phase 2 Wires+G or 1 Phase 3 Wires+G (with Isolation Transformer) | ||||||
| Voltage | 1 Phase 2 Wires+G: 208/220/230/240Vac or 1 Phase 3 Wires+G (with Isolation Transformer): 110/220Vac or 115/230Vac or 120/240Vac | ||||||
| Voltage Regulation | +/-1% (+/-2% with Isolation Transformer) | ||||||
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz | ||||||
| Waveform | Pure sinewave | ||||||
| THD | <2% (Linear Load) or <5% (Non-linear Load) | ||||||
| Crest Ratio | 3:1 | ||||||
| EFFICIENCY | |||||||
| To AC Mode | >92% at Full Load and Battery Full Charged | ||||||
| To Battery Mode | >92% at Full Load and 12VDC/Battery | ||||||
| ECO Mode | >96% at Full Load and Battery Full Charged | ||||||
| BATTERY | |||||||
| Voltage | 240VDC | ||||||
| Type | 12V/7AH*20pcs | Extendable | 12V/9AH*20pcs | Extendable | 12V/9AH*20pcs*2sets | Extendable | |
| Recharge Time | 7Hrs to 90% | Depend on Capacity of External Battery | 8Hrs to 90% | Depend on Capacity of External Battery | 8Hrs to 90% | Depend on Capacity of External Battery | |
| TRANSFER TIME | |||||||
| Line Mode⇔Battery Mode | 0ms | ||||||
| Inverter⇔Bypass | 0ms | ||||||
| ECO Mode⇔Inverter | <10ms | ||||||
| DISPLAY | |||||||
| LED | Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow) | ||||||
| LCD | Load Level, Battery Voltage, Battery Mode, AC Mode, Bypass Mode Information | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Sounding every 4 seconds | ||||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continuously sounding | ||||||
| COMMUNICATIONS | |||||||
| Interface (Port) | Dry Contact (Optional) ; USB | ||||||
| Intelligent Slot | Slot for SNMP or AS400 card (Optional) | ||||||
| EPO | Emergency Power Off | ||||||
| ENVIRONMENT | |||||||
| Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Operating Temperature | 0-95% (Non-condensing) | ||||||
| Acoustic Noise | <50dB at 1M | ||||||
| PHYSICAL | |||||||
| Rack Height | 12U | 19U | |||||
| Dimension (D*W*H) | 440*528*630mm | 440*528*836mm | |||||
| **Product specifications are subject to change without further notice. | |||||||
