9200LRB Series 6KVA-10KVA
Online UPS
9200LRB Series6KVA & 10KVA
IDEAL-9200LRB 6 & 10KVA series is a true double conversion online UPS with pure sinewave output, zero transfer time and enhanced capacity. With split-type design, it flexibly complies with users' demand no matter for standard or long time operation.
IDEAL-9200LRB stand out as high efficient online UPS during harsh mains condition for mission critical equipment in data/computer center or industrial applications.

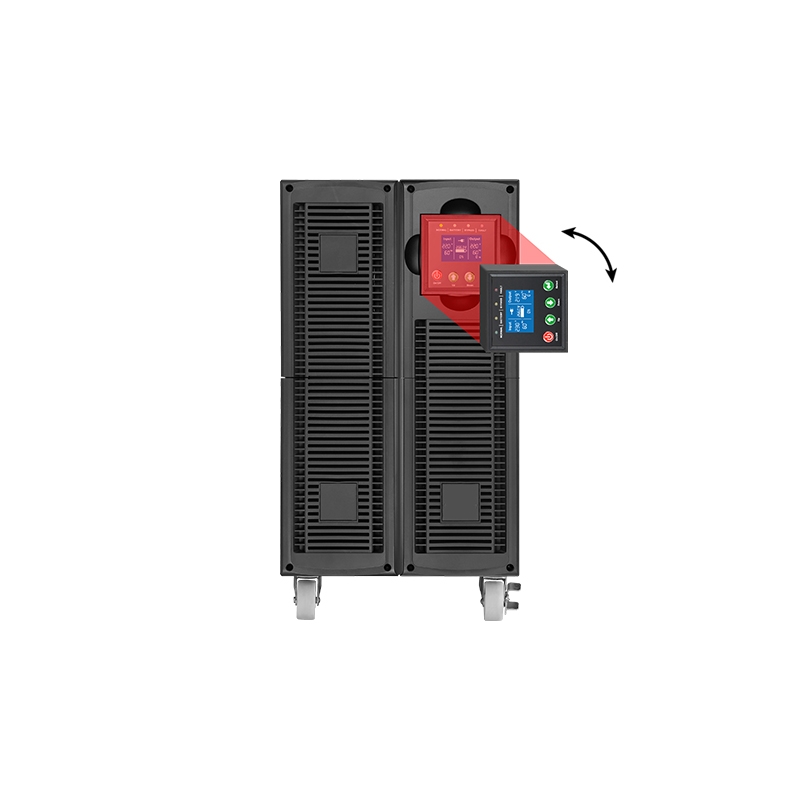

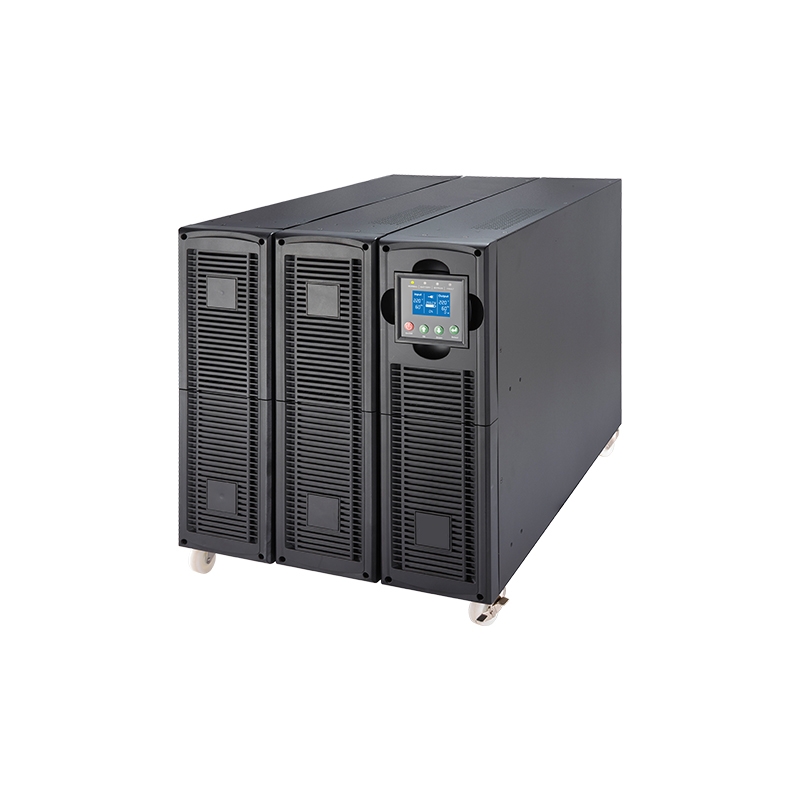

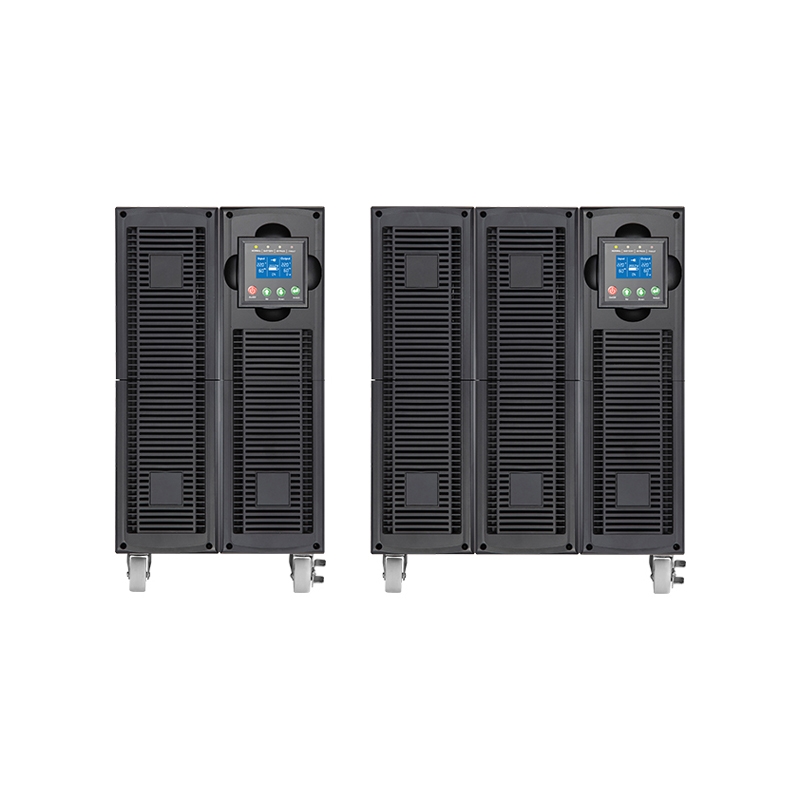

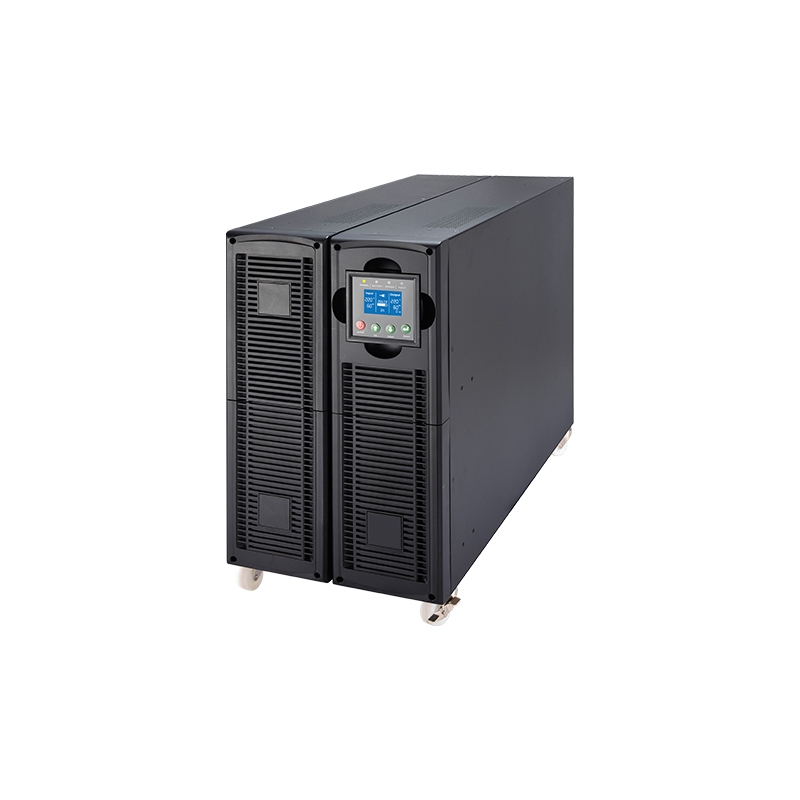

9200LRB Series 6KVA & 10KVA (Double Conversion 1P/1P, Split-Type)
- Isolation transformer in split rack box with maintenance bypass switch (Optional)
- High performance true double conversion online UPS 6-10KVA
- N+X parallel redundancy and capacity expansion (Optional)
- External battery box to extend backup time (Optional)
- Microprocessor control guarantees high reliability
- Low heat dissipation in long time operation
- Emergency power-off function (EPO)
- Input THDi < 5% / Output THD < 2%
- High efficiency mode (ECO mode)
- Output voltage regulation +/-2%
- Automatic self-testing function
- Power management software
- Fan speed control & DC start
- Output power factor 0.9
| MODEL | IDEAL-9206LRB | IDEAL-9206LRBE | IDEAL-9210LRB | IDEAL-9210LRBE | |||
| CAPACITY | 6KVA/5.4KW | 10KVA/9KW | |||||
| INPUT | |||||||
| Phase | 1 Phase 2 Wires with Ground | ||||||
| Voltage | 220/230/240Vac | ||||||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||||||
| THDi | <5% with R Full Load | ||||||
| OUTPUT | |||||||
| Phase | 1 Phase 2 Wires with Ground or 1 Phase 3 Wires with Ground (with Isolation Transformer) | ||||||
| Voltage | 1 Phase 2 Wires with Ground: 220/230/240Vac or 1 Phase 3 Wires with Ground(with Isolation Transformer): 220/110Vac, 230/115Vac, or 240/120Vac(set via control panel) |
||||||
| Voltage Regulation | +/-1% or +/-2% (with Isolation Transformer) | ||||||
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz | ||||||
| Waveform | Pure sinewave | ||||||
| THD | <2% (Linear Load) or <5% (Non-linear Load) | ||||||
| Crest Ratio | 3:1 | ||||||
| EFFICIENCY | |||||||
| To AC Mode | >92% at full load and battery full charged | ||||||
| To Battery Mode | >92% at full load and 12VDC/battery | ||||||
| ECO Mode | >96% at full load and battery full charged | ||||||
| BATTERY | |||||||
| Voltage | 240VDC | ||||||
| Type | 12V/7AH*20pcs | Extendable | 12V/9AH*20pcs | Extendable | |||
| Recharge Time | 7 hours to 90% | Depend on capacity of external battery | 8 hours to 90% | Depend on capacity of external battery | |||
| TRANSFER TIME | |||||||
| Line Mode⇔Battery Mode | 0ms | ||||||
| Inverter⇔Bypass | 0ms | ||||||
| ECO Mode⇔Inverter | <10ms | ||||||
| DISPLAY | |||||||
| LED | Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow) | ||||||
| LCD | Load level, Battery voltage, Battery mode, AC mode, Bypass mode information | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Sounding every 4 seconds | ||||||
| Low Battery | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continuous sounding | ||||||
| COMMUNICATIONS | |||||||
| Interface (Port) | Dry contact (Optional) ; USB | ||||||
| Intelligent Slot | Slot for SNMP included (SNMP card is optional) | ||||||
| EPO | Emergency Power Off | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | 0-95% (Non-condensing) | ||||||
| Acoustic Noise | <50dB at 1M | ||||||
| PHYSICAL | |||||||

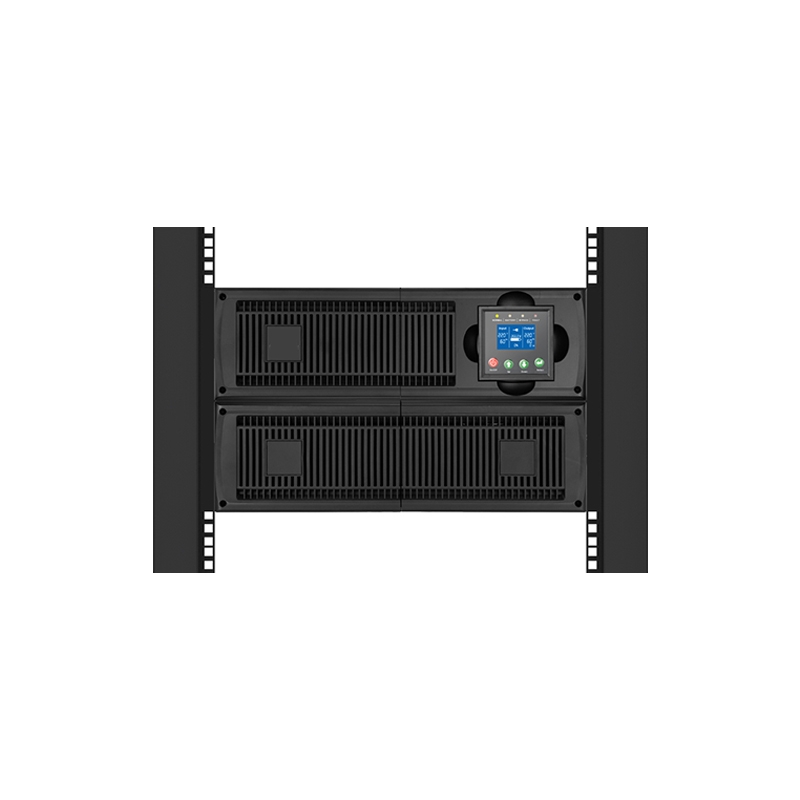

| Cabinet Type | 3U | ||||||
| Dimension-Main UPS Box (L*W*H) | 610*440*135mm | ||||||
| Dimension-Isolation Transformer Box (L*W*H) | 610*440*135mm | ||||||
| Dimension-Battery Bank Box (L*W*H) | 610*440*135mm | ||||||
| **Product specifications are subject to change without further notice. | |||||||
