9200LB Series 1KVA-3KVA
Online UPS

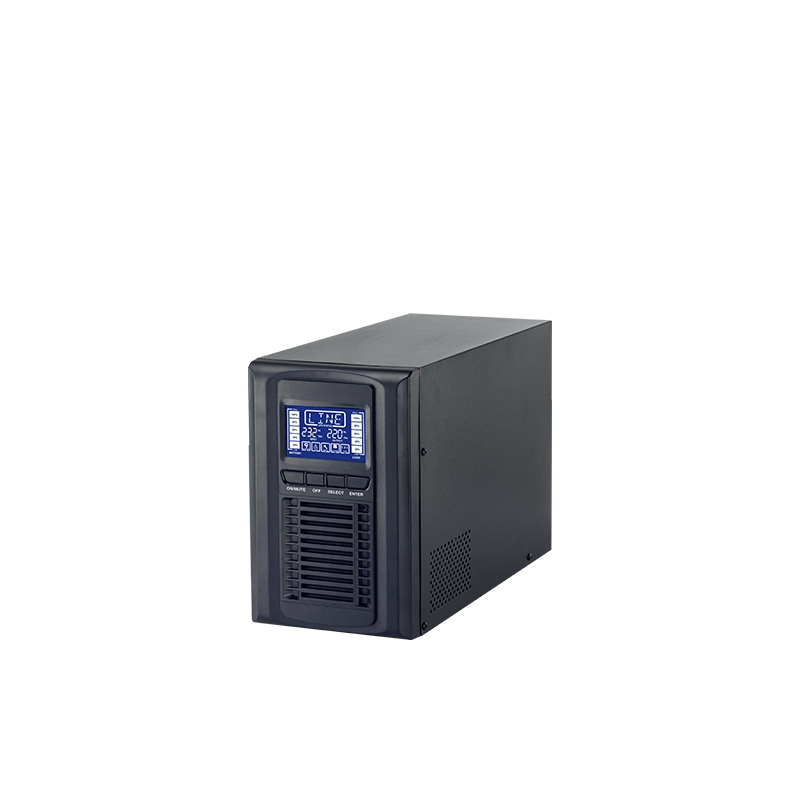

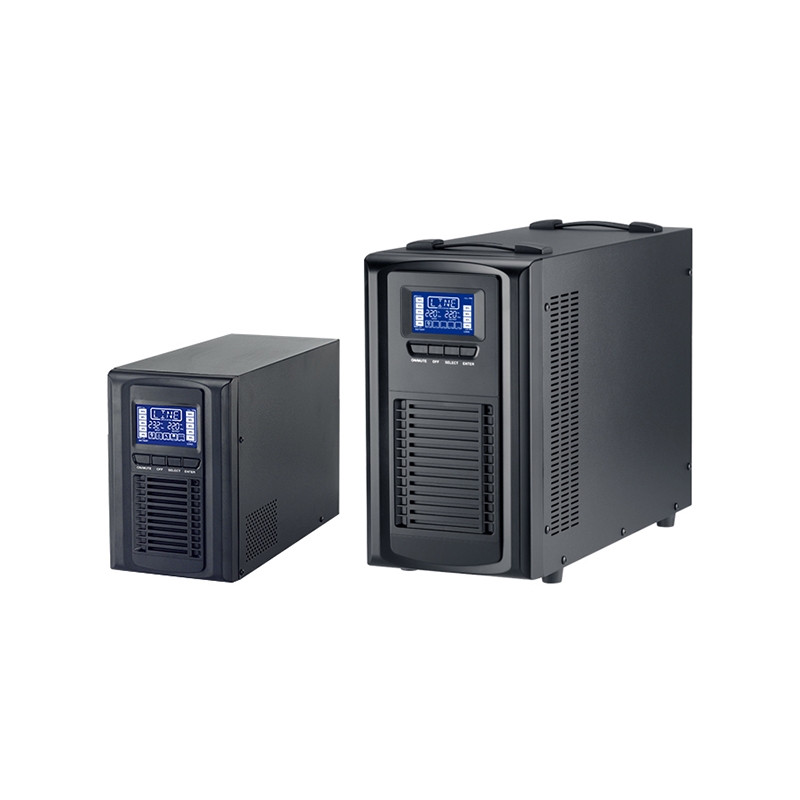

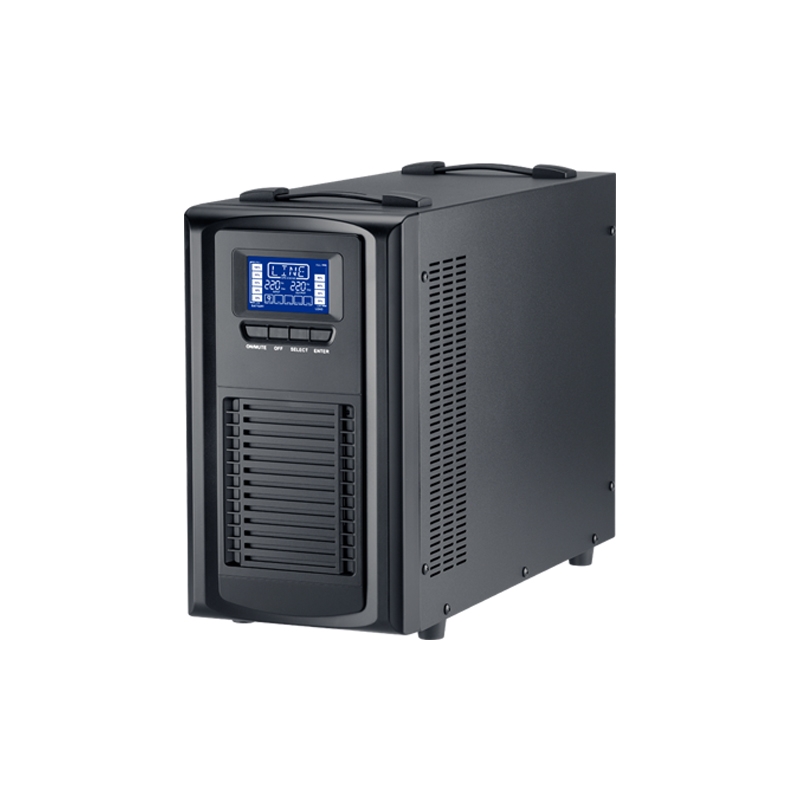

9200LB HV Series1KVA-3KVA
The 9200LB HV series is true double conversion online UPS with pure sinewave output and zero transfer time in a compacted stand-alone unit. Featuring 1000VA,
2000VA, 3000VA configuration with wide AC input range 0.9 output power factor, LCD display and high performance. 9200LB 1-3KVA series stands out as high efficient line of online UPS for mission critical equipments and industrial applications in long time operation or harsh mains conditions.
9200LB HV Series 1KVA-3KVA
- High performance true double conversion On Line UPS 1000VA to 3000VA
- Microprocessor control guarantees high reliability
- Low heat dissipation in long time operation
- Emergency power-off function (EPO)
- High efficiency mode (ECO mode)
- Output voltage regulation +/-2%
- USB multiple communications
- Automatic self-testing function
- Power management software
- Output power factor 0.9
- Fan speed control
- Wide input range
- DC start
| MODEL | IDEAL-9201LB | IDEAL-9202LB | IDEAL-9203LB | ||||
| CAPACITY | 1000VA/900W | 2000VA/1800W | 3000VA/2700W | ||||
| INPUT | |||||||
| Voltage | 1 Phase 2 Wires + Ground 220/230/240Vac | ||||||
| Voltage Range | 100Vac-300Vac | ||||||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||||||
| THDi | <5% at full Load | ||||||
| OUTPUT | |||||||
| Voltage | 220/230/240Vac | ||||||
| Voltage Regulation | +/-2% | ||||||
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz | ||||||
| Waveform | Pure sinewave | ||||||
| THD | <1% (Linear Load), <5% (Non-Linear Load) | ||||||
| Crest Ratio | 3:1 | ||||||
| EFFICIENCY | |||||||
| To Inverter Mode | >88% | >90% | >90% | ||||
| To ECO Mode | >97% | ||||||
| BATTERY | |||||||
| Voltage | 24VDC | 48VDC | 72VDC | ||||
| Type | 12V/9AH*2pcs | 12V/9AH*4pcs | 12V/9AH*6pcs | ||||
| Recharge Time | 4Hrs to 90% | ||||||
| TRANSFER TIME | |||||||
| Line Mode⇔Battery Mode | 0ms | ||||||
| Inverter⇔Bypass | <4ms | ||||||
| DISPLAY | |||||||

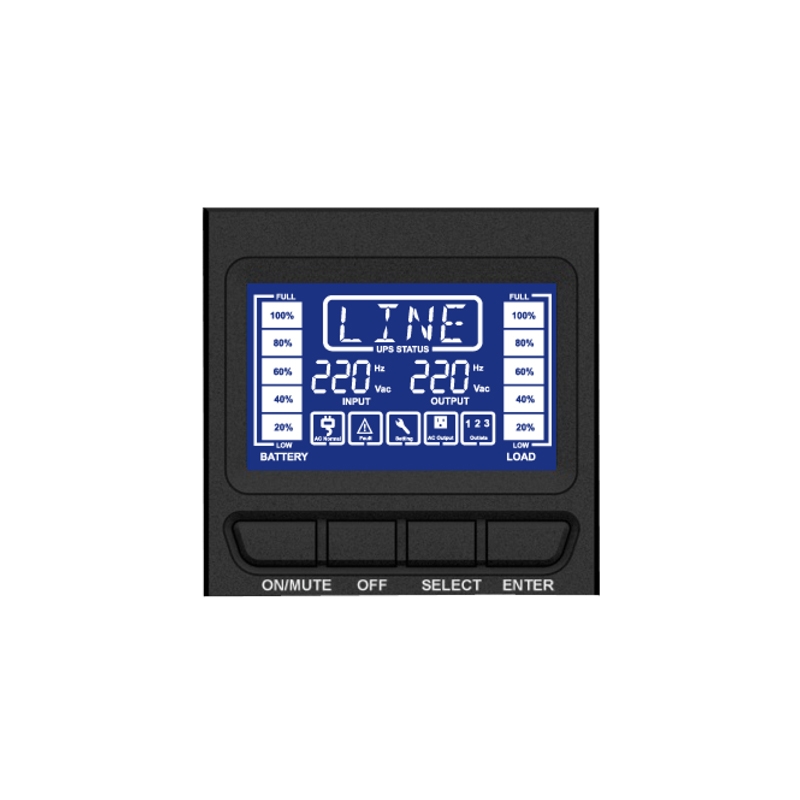

| LCD Display | Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable/enable selection information | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Beeps every 4 seconds | ||||||
| Battery Low | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Continuously beeping | ||||||
| COMMUNICATIONS | |||||||
| Interface (Port) | USB Port | ||||||
| EPO | Emergency Power Off | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | <95% (Non-condensing) | ||||||
| Acoustic Noise | <40dB at 1M | <50dB at 1M | |||||
| PHYSICAL | |||||||
| Dimension (D*W*H) | 355*145*220mm | 405*195*330mm | |||||
| **Product specifications are subject to change without further notice. | |||||||
