9200LC HV Series 1KVA-3KVA
Online UPS
9200LC HV Series1KVA-3KVA

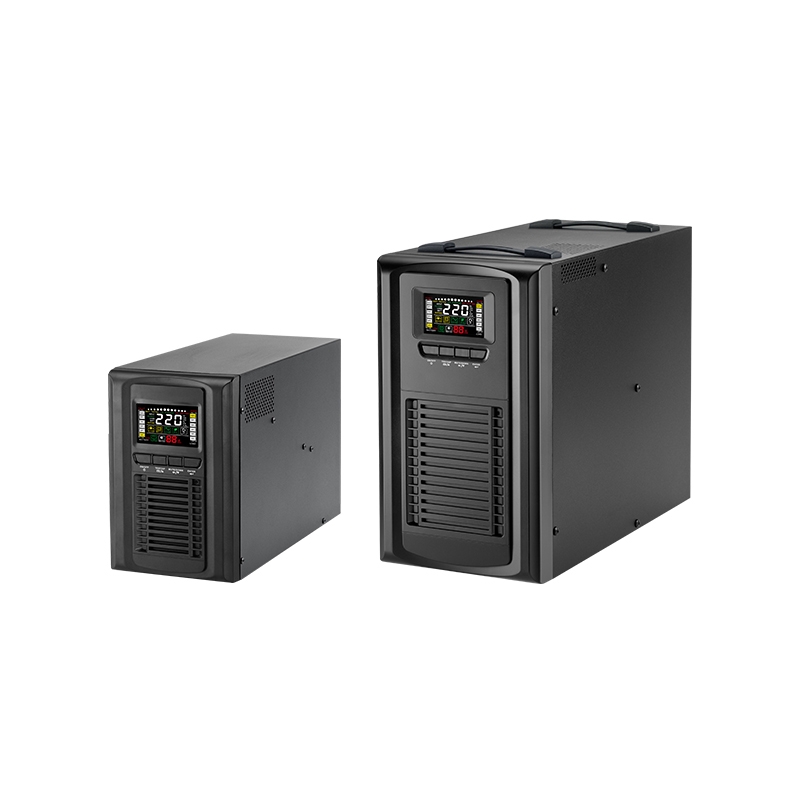

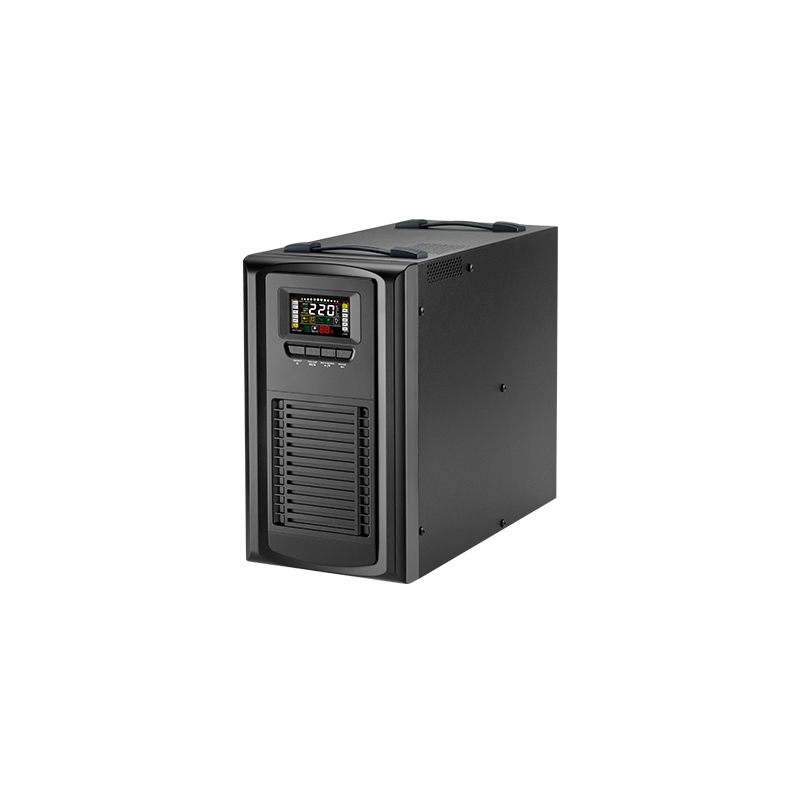

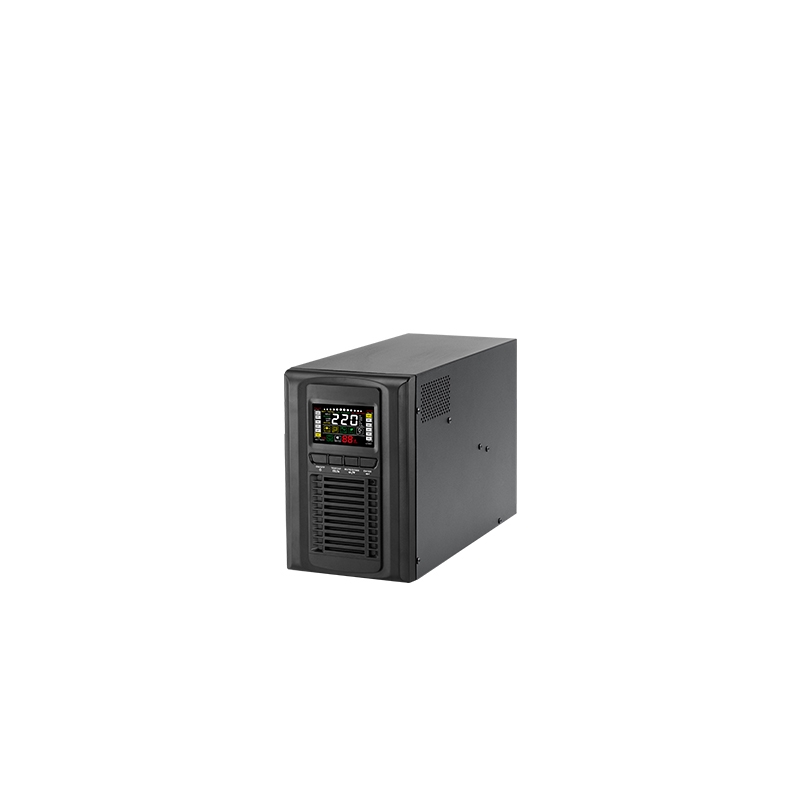

IDEAL-9200LC HV series is a true double conversion online UPS with pure sinewave output and zero transfer time in a rack and tower convertible unit.
Featuring 1000VA, 2000VA, 3000VA configuration with wide input range 100VAC to 300VAC, output power factor 0.9, LCD display, IDEAL-9200LC series Tower 1000VA to 3000VA model stand out as high efficient line of online UPS for mission critical equipment in data/computer center or industrial applications.
9200LC HV Series 1KVA-3KVA
- Intelligent Slot (SNMP) + USB multiple communications (Optional)
- High performance true double conversion On Line UPS 1-3KVA
- External battery bank to extend back-up time (Optional)
- Microprocessor control guarantees high reliability
- Low heat dissipation in long time operation
- RS-232 port multiple communications
- High efficiency mode (ECO mode)
- Output voltage regulation +/-1%
- Automatic self-testing function
- Power management software
- Output power factor 0.9
- Wide input range
- Fan speed control
- DC start
| MODEL | IDEAL-9201LC | IDEAL-9202LC | IDEAL-9203LC | ||||
| CAPACITY | 1000VA/900W | 2000VA/1800W | 3000VA/2700W | ||||
| INPUT | |||||||
| Voltage | 1 Phase 2 Wires with Ground 208/220/230/240Vac | ||||||
| Voltage Range | 100Vac-300Vac | ||||||
| Frequency | 40Hz-70Hz | ||||||
| OUTPUT | |||||||
| Voltage | 208/220/230/240Vac | ||||||
| Voltage Regulation | +/-1% | ||||||
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz | ||||||
| Waveform | Pure sinewave | ||||||
| THD | <2% (linear load) | ||||||
| Crest Ratio | 3:1 | ||||||
| EFFICIENCY | |||||||
| Inverter Mode | >88% | >90% | >91% | ||||
| BATTERY | |||||||
| Type | Maintenance free sealed lead-acid battery | ||||||
| Voltage | 24VDC | 48VDC | 72VDC | ||||
| Recharge Time | 5Hrs to 90% | ||||||
| TRANSFER TIME | |||||||
| Battery Mode⇔Inverter Mode | 0ms | ||||||
| Inverter⇔Bypass | 4ms | ||||||
| DISPLAY | |||||||
| LCD Display | Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable/enable selection information | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Beeps every 4 seconds | ||||||
| Battery Low | Sounding every second | ||||||
| Overload | Sounding twice every second | ||||||
| Fault | Beeping continuously | ||||||
| COMMUNICATIONS | |||||||
| Interface (Port) | RS-232 | ||||||
| USB Port | Optional | ||||||
| SNMP Slot | Optional | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | <95% (Non-condensing) | ||||||
| Acoustic Noise | <50dB at 1M | ||||||
| PHYSICAL | |||||||
| Format | Tower | ||||||
| Dimension (D*W*H) | 355*145*220mm | 405*195*330mm | |||||
| **Product specifications are subject to change without further notice. | |||||||
