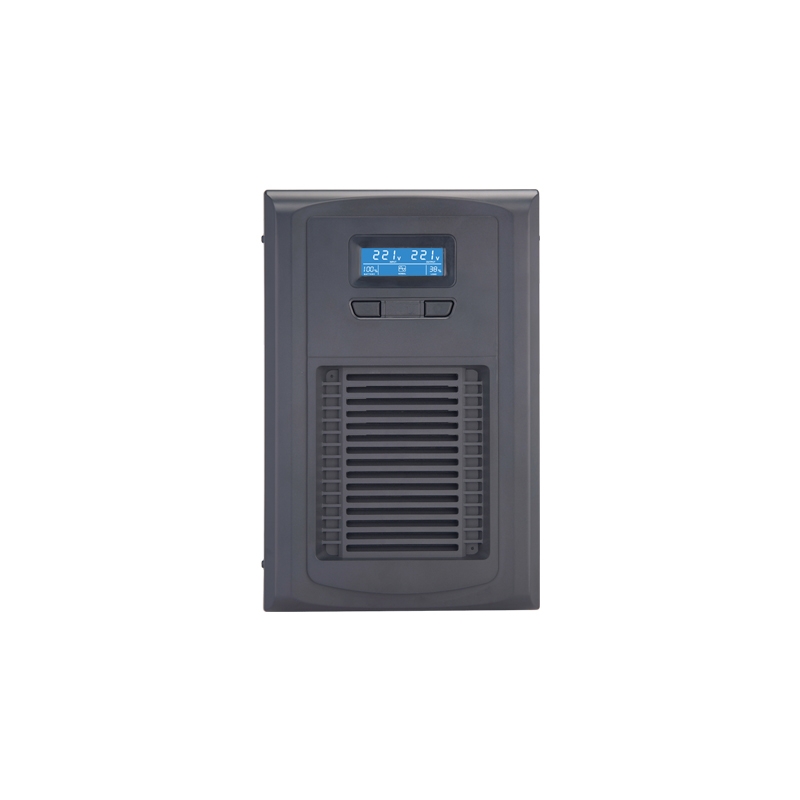

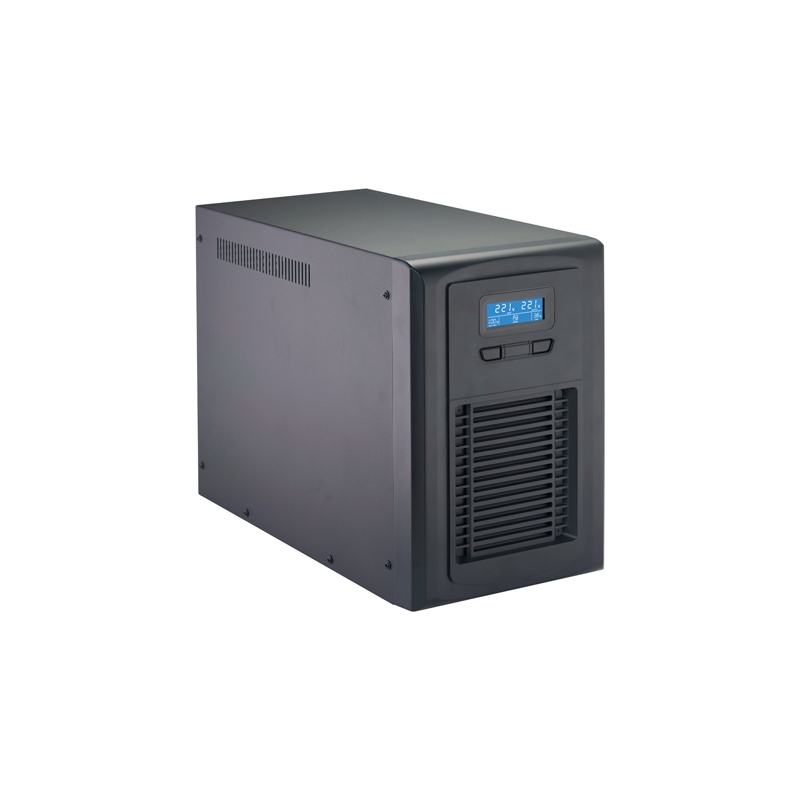

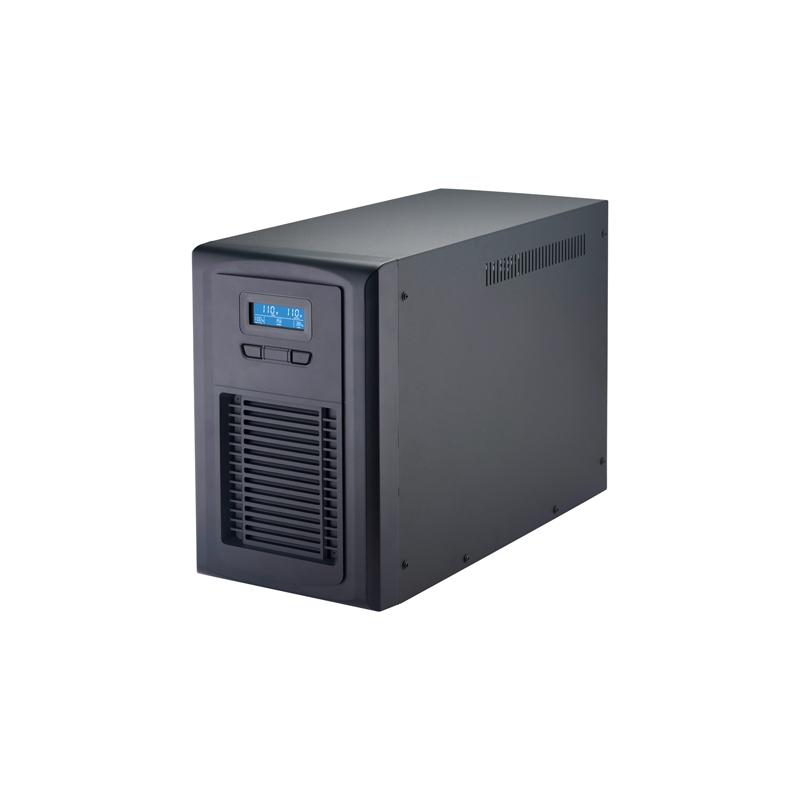

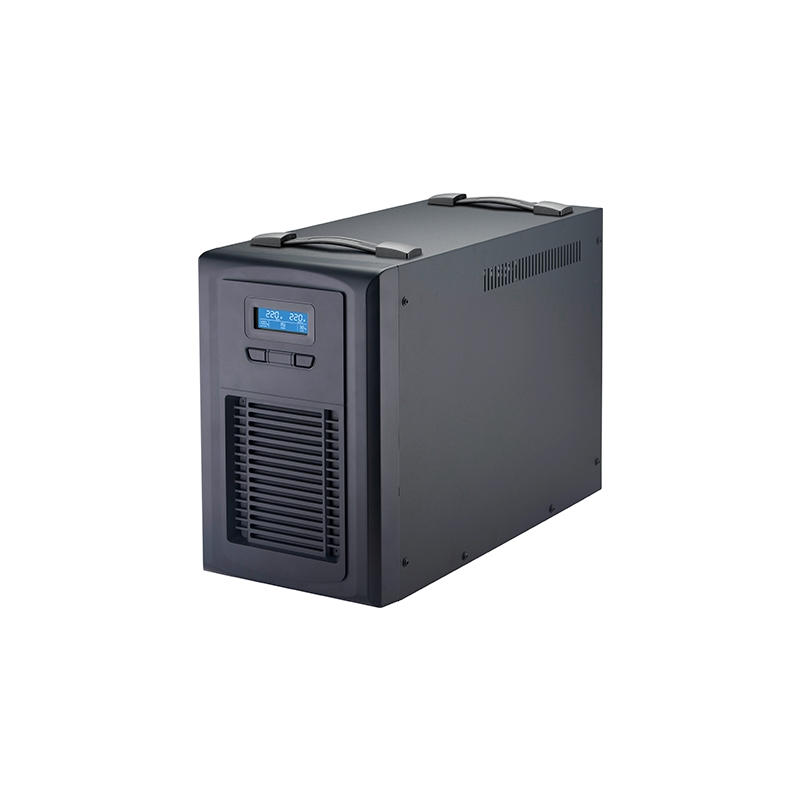

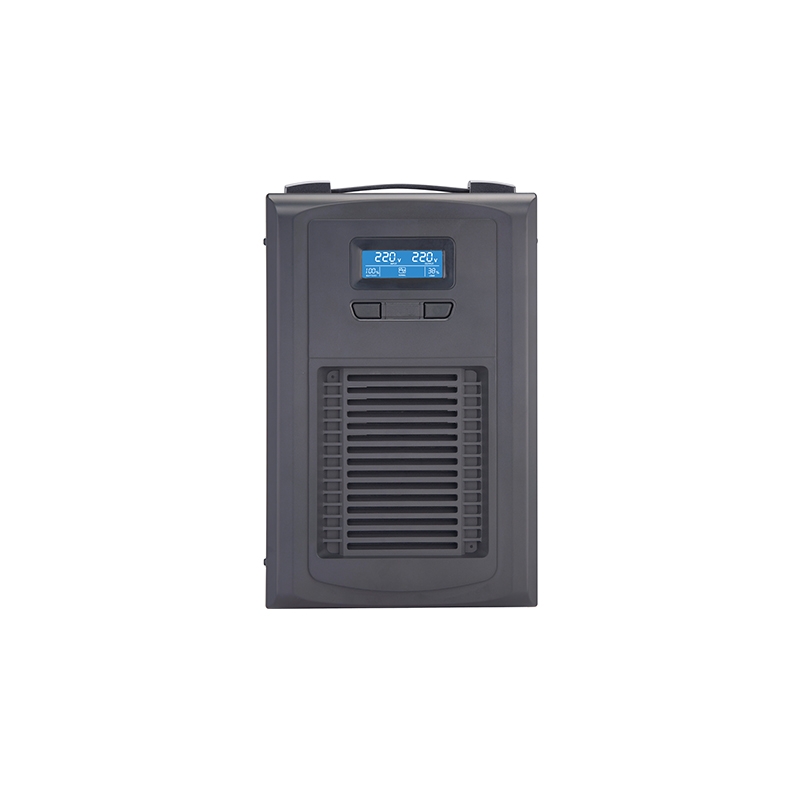

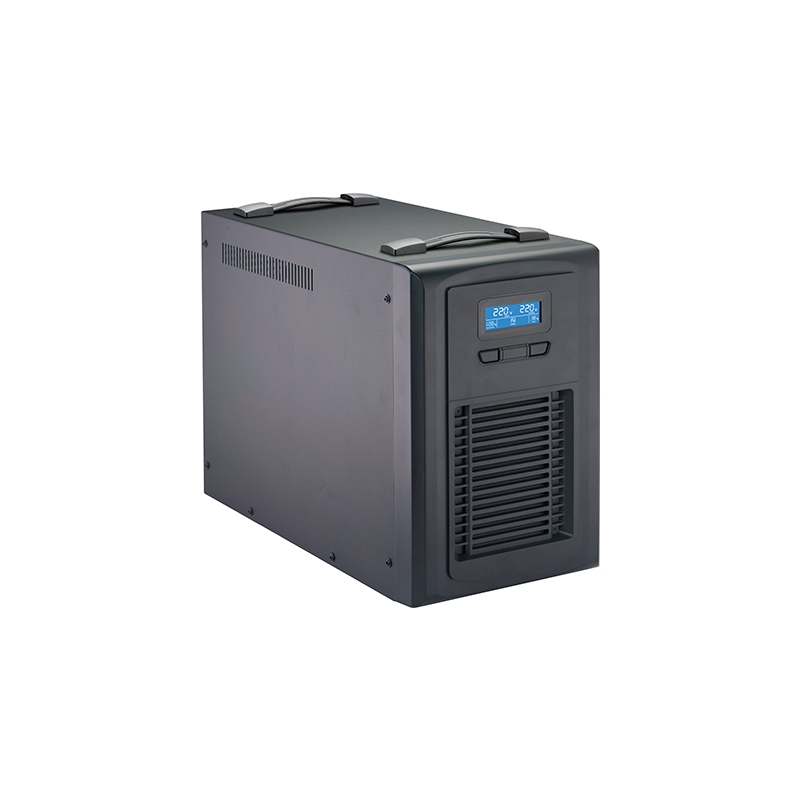

7700B Series 2000VA & 3000VA
Line Interactive UPS
7700B Series2000VA & 3000VA
The 7700B series provides enhanced battery backup power during outages and unsafe fluctuations, allowing you ample time to save important data and shut down equipment safely upon power failure.
Featuring 2000VA & 3000VA integrated with voltage stabilizer, LCD display and optional external battery bank, 7700B series UPS is an ideal choice for long-time operation or heavy loading equipment upon utility blackout.
7700B LCD Series 2000VA & 3000VA
- UPS shuts down upon battery low and restarts automatically upon AC recovery (Auto-restart)
- Built-in DC start function enables UPS to be started without AC power supplied
- Available to add extra external battery bank to extend back-up time (Optional)
- Constant current, constant voltage battery charger (CCCV Battery Charger)
- Management software is designed to monitor and control UPS status
- USB communication port and cable for managing functions via PC
- Equipped with boost and buck AVR to stabilize utility voltage
- Over / under voltage protection (UPS goes to battery mode)
- No-load shut down function (dip switch set up)
- Buzzer alarm auto reset (dip switch set up)
- Lightning / surge protection 240 joules
- Modem / phone line protection RJ-45
- Battery over drain protection
- User-friendly LCD display
| MODEL | IDEAL-7720B | IDEAL-7730B | |||||
| CAPACITY | 2000VA/1200W | 3000VA/1800W | |||||
| INPUT | |||||||
| Voltage | 110/115/120Vac or 220/230/240Vac | ||||||
| Voltage Range | +/-25% | ||||||
| Frequency | 47Hz-53Hz or 57Hz-63Hz | ||||||
| OUTPUT | |||||||
| Voltage Regulation | Battery normal: 110/115/120Vac or 220/230/240Vac +/-10% | ||||||
| Frequency | Battery mode: 50Hz or 60Hz +/-1Hz | ||||||
| Waveform | Simulated Sinewave | ||||||
| Transfer Time | <6ms (Typical) | ||||||
| Outlet | Nema5-15R *8pcs / German *6pcs / Universal *6pcs | ||||||
| BATTERY | |||||||
| Voltage | 48VDC | ||||||
| Type | 12V/7AH*4pcs | 12V/9AH*4pcs | |||||
| Recharge Time | 5 hours to 90% after complete discharge | ||||||
| Safety Protection | Over Charge & Over Discharge Protection | ||||||
| Advanced Battery Management | Yes | ||||||
| DISPLAY | |||||||
| LCD | Input voltage, Output voltage, Load level, Battery level, Fault, Overload, AC normal, Battery fail (Optional) | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Sounding every 3 seconds | ||||||
| Low Battery | Sounding every second | ||||||
| Overload | Continuous beeping sound | ||||||
| MANAGEMENT | |||||||
| Smart USB (Optional) | Software supporting Windows 95/98/NT/2000/ME/XP/2003/Vista/7/8/10/11 | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | 0-95% (Non-condensing) | ||||||
| Acoustic Noise | <40dB at 1M | ||||||
| PHYSICAL | |||||||
| Dimension (D*W*H) | 390*182*285mm | ||||||
| **Product specifications are subject to change without further notice. | |||||||
