500VA & 700VA

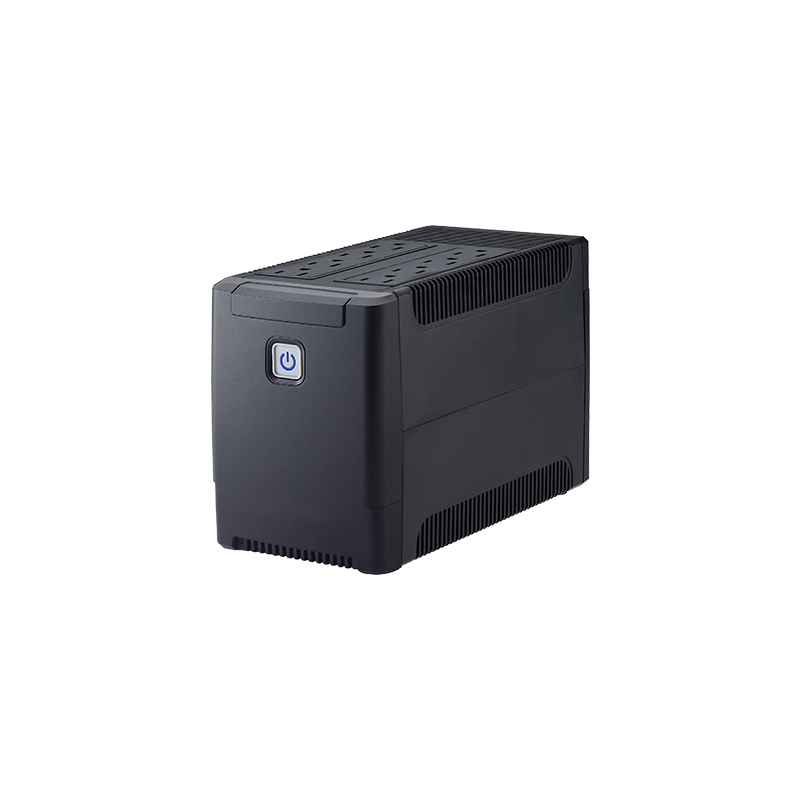

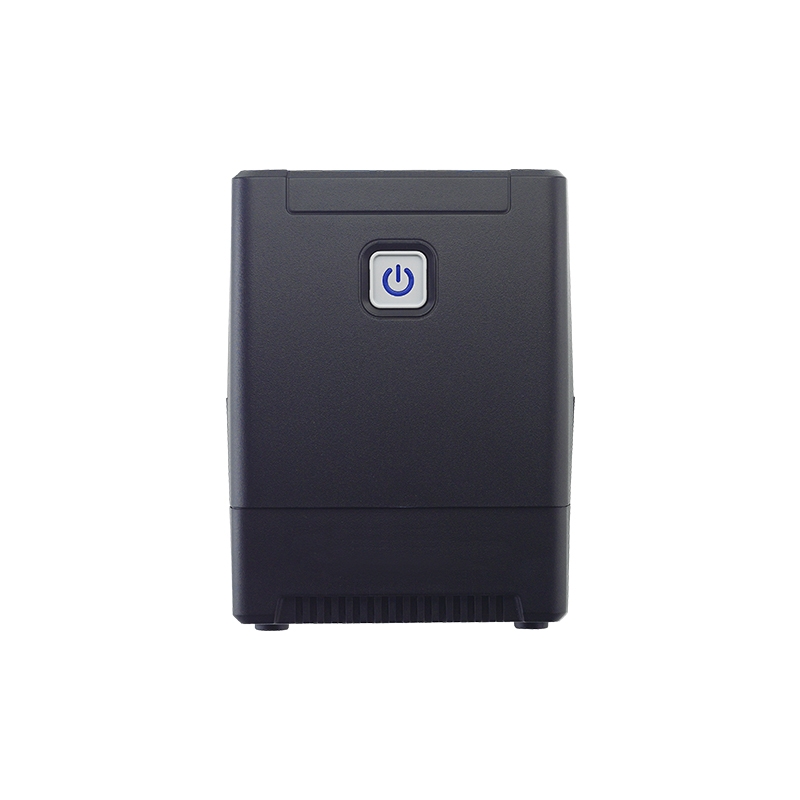

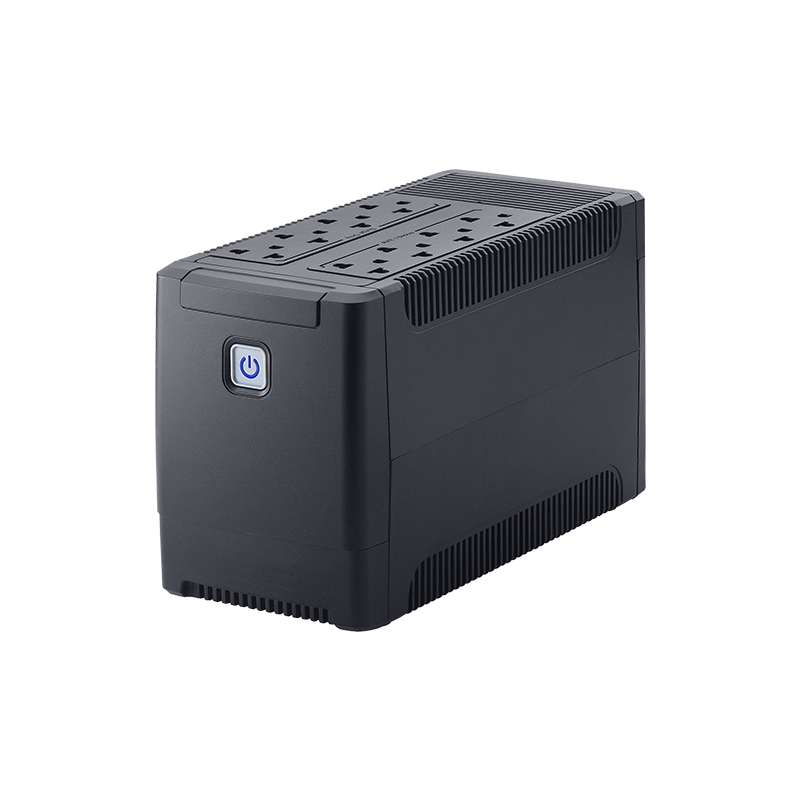

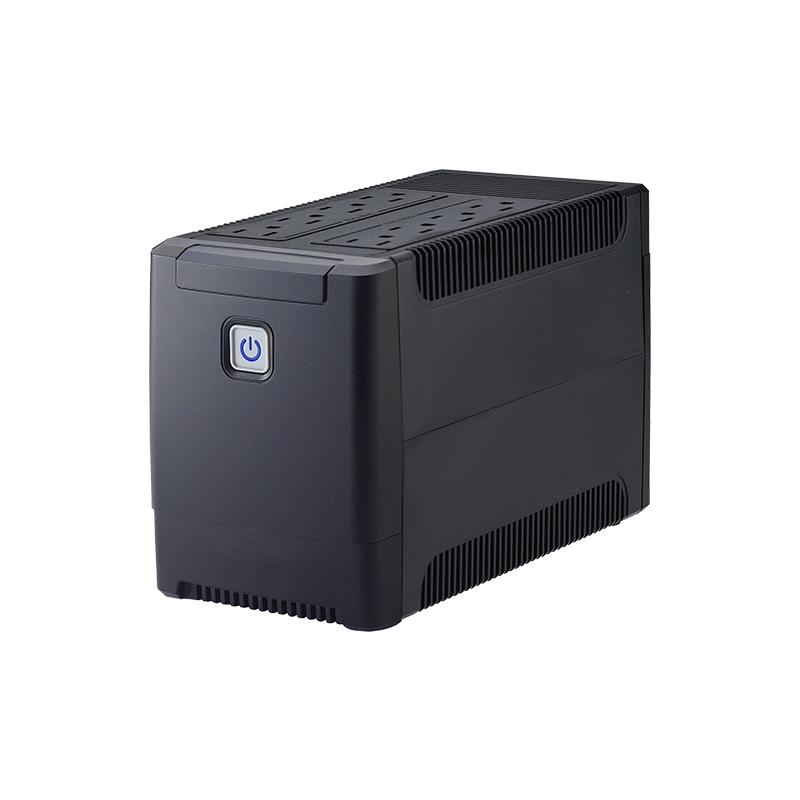

5200C Series
500VA & 700VA

IDEAL-5200C series is cost effective UPS model that provides reliable performance to protect home and office appliance.
It is suitable for users who consider price as first priority.
IDEAL-5200C series equipped with 2-steps boost & 1-step buck AVR stabilizer to stabilize output voltage fluctuations and correct any abnormal voltages to protect connected devices.
With multi-sockets, it helps users save extra cost for additional power strips. The size of UPS is suitable to place in compact space at home or office.

5200C LED Series 500VA & 700VA

  • UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
  • Controlled by a technologically advanced microprocessor guaranteeing high reliability
  • Built-in DC start function enables UPS to be started without AC power supplied
  • Constant current, constant voltage battery charger (CCCV Battery Charger)
  • Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
  • UPS will charge itself even though power switch is off (Off mode charging)
  • Over / under voltage protection (UPS will go to battery mode)
  • Lightning / surge protection 175 joules
  • No-load shut down(UPS Green mode)
MODEL IDEAL-5205C IDEAL-5207C
CAPACITY 500VA/250W 700VA/350W
INPUT
Voltage 110/115/120Vac or 220V/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation AC mode/Battery normal: 110/115/120Vac or 220/230/240Vac +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)
Outlet Nema5-15R or Universal Nema * 4pcs with Back-up + 4pcs Surge only
BATTERY
Voltage 12VDC
Type 12V/4AH*1pc 12V/5AH*1pc
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
AC Normal Blue LED
Battery Back-up Red LED
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acoustic Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 210*98*131mm
**Product specifications are subject to change without further notice.
