600VA-2000VA

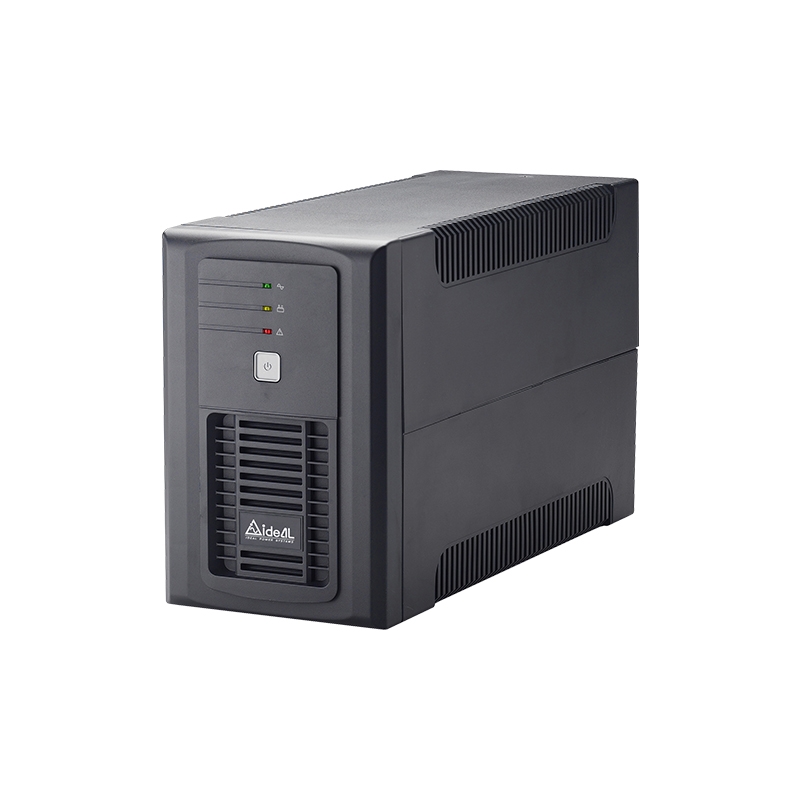

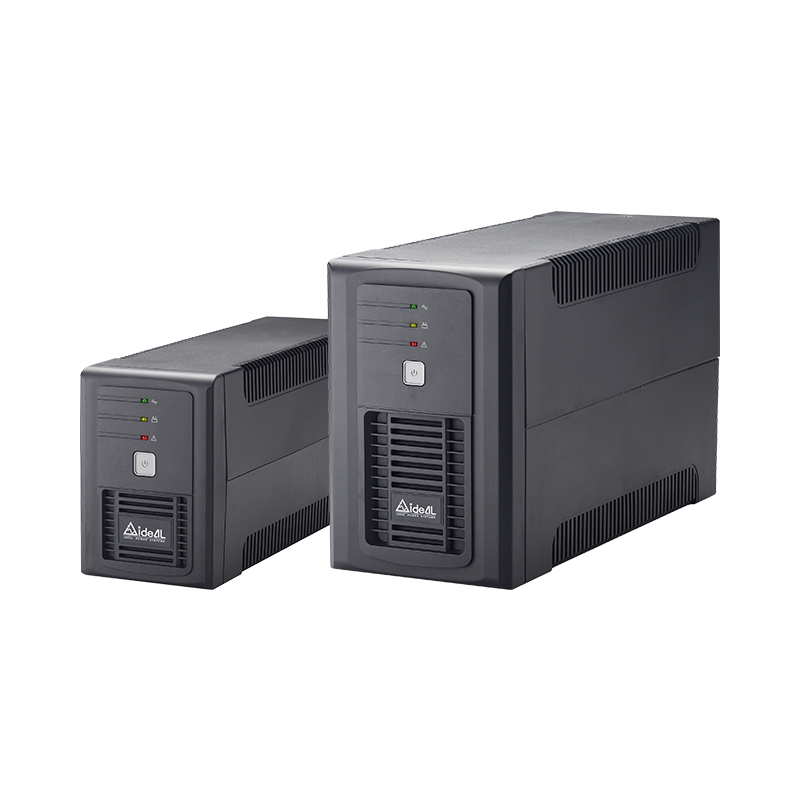

5100CH(U) 5700CH(U) Series
600VA-2000VA

IDEAL-5X00CH(U) series cabinet structure is designed with easy battery replacement, which provides more quick and simple steps for maintenance.
It is the power solution to avoid data loss of your computers from power failure.
Embedded with 2-steps boost & 1-step buck AVR stabilizer, it is able to stabilize output voltage fluctuations and correct any abnormal voltages to protect connected devices.
It offers comprehensive power protection against surges, spikes and over-voltage or under-voltage situations.
With microprocessor control technology, it guarantees high reliability, which is suitable for home or small office applications.

5100CH(U) 5700CH(U) LED Series

  • UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
  • Controlled by a technologically advanced microprocessor guaranteeing high reliability
  • Built-in DC start function enables UPS to be started without AC power supplied
  • Management software is designed to monitor and control UPS status (Optional)
  • Constant current, constant voltage battery charger (CCCV Battery Charger)
  • Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
  • UPS will charge itself even though power switch is off (Off mode charging)
  • Over / under voltage protection (UPS will go to battery mode)

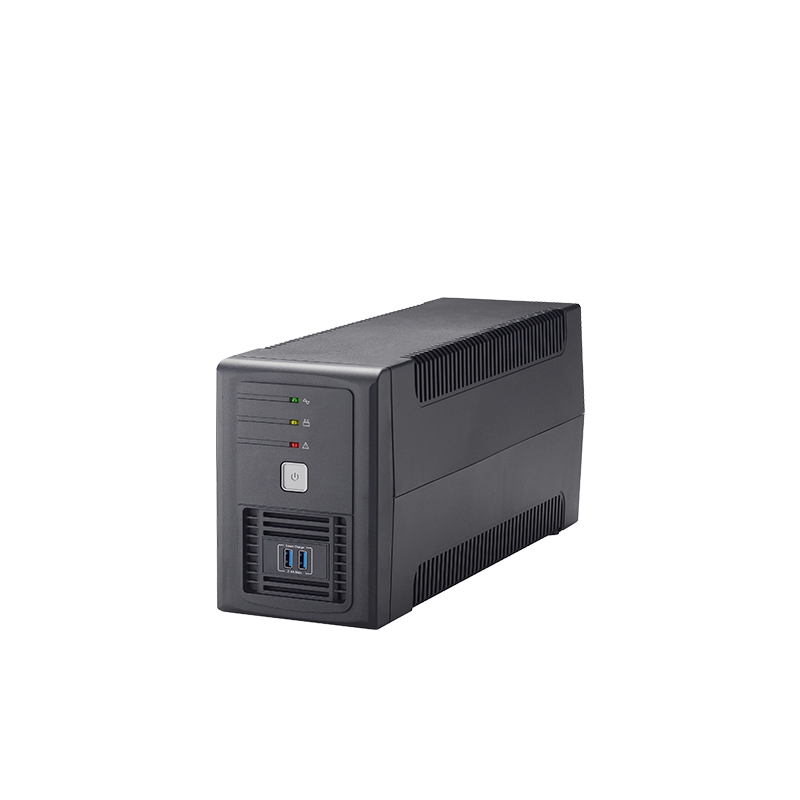

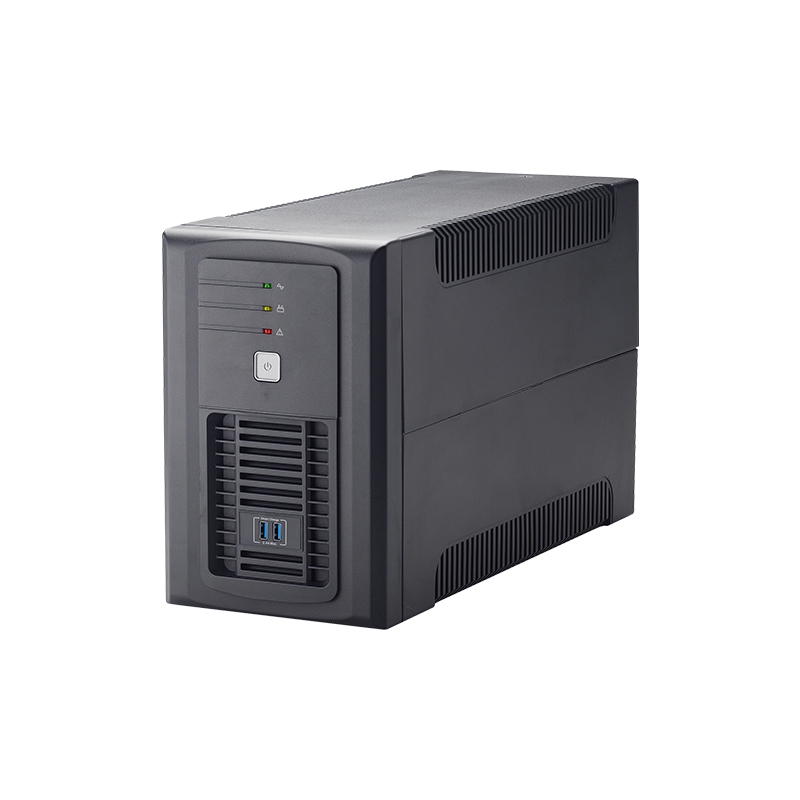

  • USB port and cable for managing functions via PC (Optional)
  • No-load shut down function (UPS Green mode)
  • Lightning / surge protection 175 joules
  • Easy replacement battery design
MODEL IDEAL-5106CH IDEAL-5108CH IDEAL-5110CH IDEAL-5112CH IDEAL-5115CH IDEAL-5120CH
IDEAL-5706CH IDEAL-5708CH IDEAL-5710CH IDEAL-5712CH IDEAL-5715CH IDEAL-5720CH
CAPACITY 600VA/360W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W 2000VA/1200W
INPUT
Voltage 110/115/120Vac or 220V/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation AC mode/Battery normal: 110/115/120Vac or 220/230/240Vac +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)
Outlet: Nema5-15R or Universal Nema 4pcs with Back-up+ 4pcs Surge only 5pcs with Back-up + 5pcs Surge only
Outlet: European German or Universal *2pcs Back-up & Surge protected IEC*2pcs + German or Universal *4pcs Back-up & Surge protected
BATTERY
Voltage 12VDC 24VDC
Type 12V/7AH*1pc 12V/9AH*1pc 12V/7AH*2pcs 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LED Normal (Green), Battery (Yellow), UPS Cut off (Red)
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
Smart USB (Optional) Software supporting Windows 95/98/NT/2000/ME/XP/2003/Vista/7/8/10/11
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acoustic Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 315.5*100*141mm 343*135*206mm
**Product specifications are subject to change without further notice.
