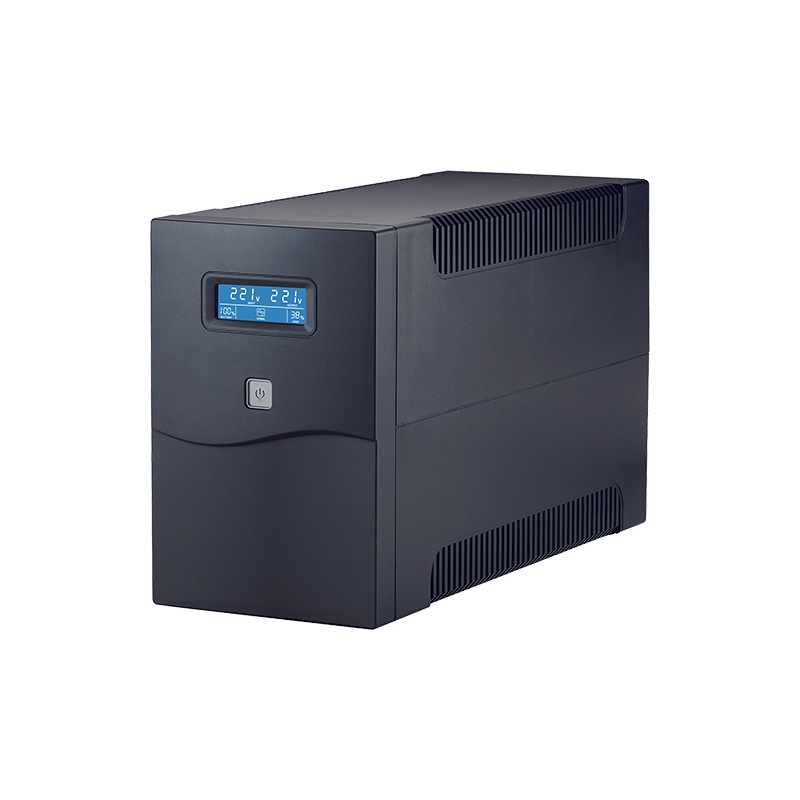

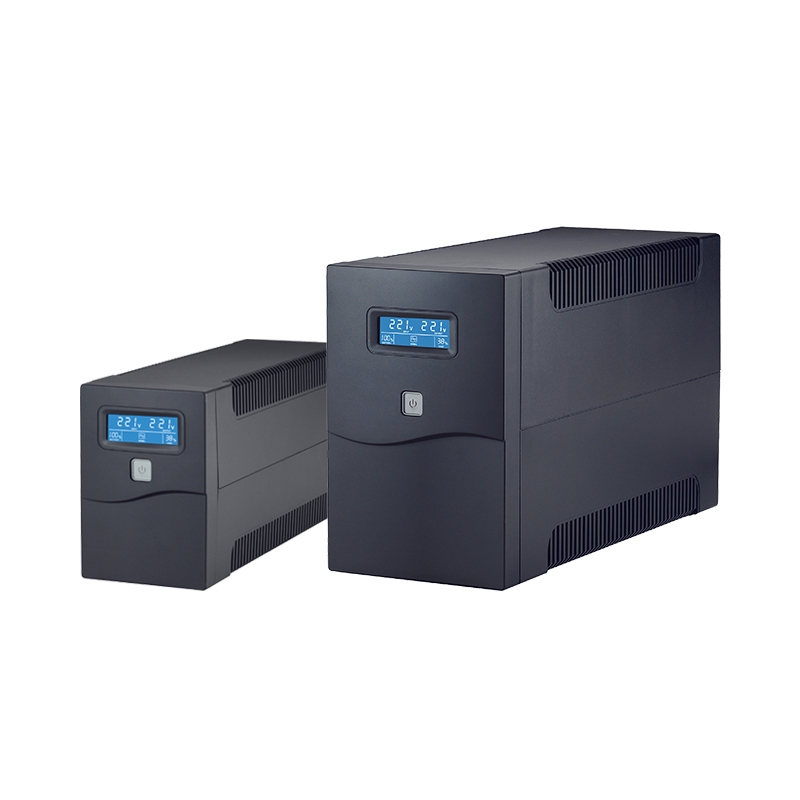

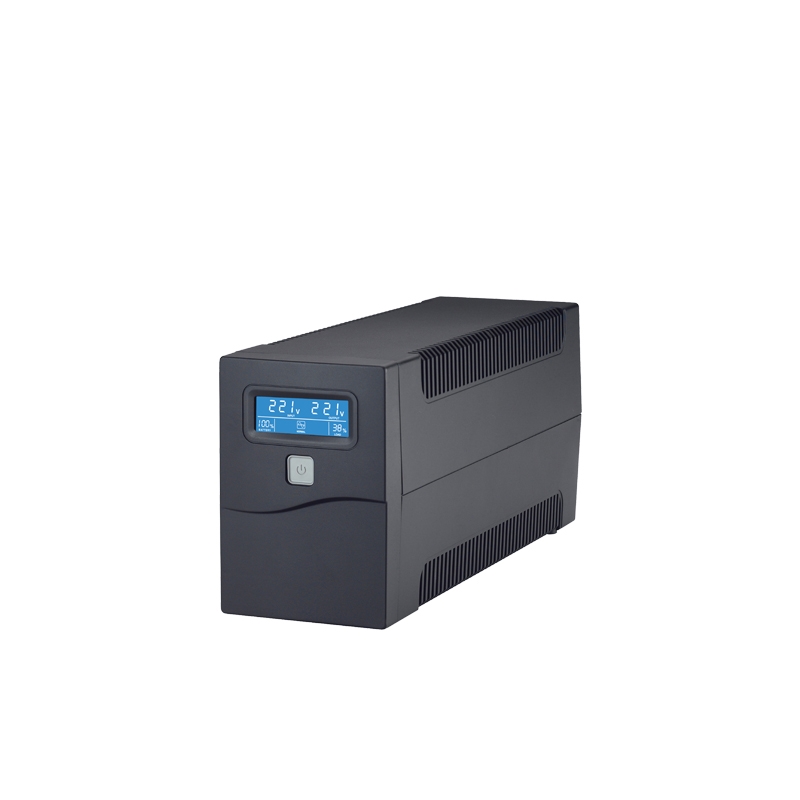

7100CW 7700CW Series 400VA-2000VA
Line Interactive UPS
7100CW 7700CW Series400VA-2000VA
IDEAL-7X00CW series can accept wide input voltage range and perfectly to be used in countries endure voltage fluctuations significantly.
With user-friendly LCD display, users acknowledge UPS status more easily.
IDEAL-7X00CW series is the power solution to avoid data loss of your computers from power failure.
Embedded with 2-steps boost & 1-step buck AVR stabilizer, it is able to stabilize output voltage fluctuations and correct any abnormal voltages to protect connected devices.
It offers comprehensive power protection against surges, spikes and over-voltage or under-voltage situations.
With microprocessor control technology, it guarantees high reliability, which is suitable for home or small office applications.
7100CW 7700CW LCD Series 400VA-2000VA
- UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
- Controlled by a technologically advanced microprocessor guaranteeing high reliability
- Built-in DC start function enables UPS to be started without AC power supplied
- Management software is designed to monitor and control UPS status (Optional)
- Constant current, constant voltage battery charger (CCCV Battery Charger)
- Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
- UPS will charge itself even though power switch is off (Off mode charging)
- Over / under voltage protection (UPS will go to battery mode)
- USB port and cable for managing functions via PC (Optional)
- No-load shut down function (UPS Green mode)
- Lightning / surge protection 175 joules
- Wide input range
| MODEL | IDEAL-7104CW | IDEAL-7106CW | IDEAL-7108CW | IDEAL-7110CW | IDEAL-7112CW | IDEAL-7115CW | IDEAL-7120CW |
| IDEAL-7704CW | IDEAL-7706CW | IDEAL-7708CW | IDEAL-7710CW | IDEAL-7712CW | IDEAL-7715CW | IDEAL-7720CW | |
| CAPACITY | 400VA/240W | 600VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| INPUT | |||||||
| Voltage | 230Vac | ||||||
| Voltage Range | 140-300Vac | ||||||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||||||
| OUTPUT | |||||||
| Voltage Regulation | AC mode: 195-253Vac ; Battery normal: 230Vac +/-10% | ||||||
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz | ||||||
| Waveform | Simulated Sinewave | ||||||
| Transfer Time | <6ms (Typical) | ||||||
| Outlet: Nema5-15R or Universal Nema | 4pcs with Back-up + 4pcs Surge only | 5pcs with Back-up + 5pcs Surge only | |||||
| Outlet: European | German or Universal *2pcs Back-up & Surge protected | IEC*2pcs + German or Universal *4pcs Back-up & Surge protected | |||||
| BATTERY | |||||||
| Voltage | 12VDC | 24VDC | |||||
| Type | 12V/4.5AH*1pc | 12V/7AH*1pc | 12V/9AH*1pc | 12V/7AH*2pcs | 12V/7AH*2pcs | 12V/9AH*2pcs | 12V/9AH*2pcs |
| Recharge Time | 5 hours to 90% after complete discharge | ||||||
| Safety Protection | Over Charge & Over Discharge Protection | ||||||
| Advanced Battery Management | Yes | ||||||
| DISPLAY | |||||||
| LCD | I/P & O/P Voltage & Frequency, Load %, Battery % | ||||||
| AUDIBLE ALARM | |||||||
| Battery Mode | Two short tones every 8 seconds | ||||||
| Low Battery | Four short tones every second | ||||||
| Overload | Beeping continuously | ||||||
| Fault | Beeping continuously | ||||||
| MANAGEMENT | |||||||
| Smart USB (Optional) | Software supporting Windows 95/98/NT/2000/ME/XP/2003/Vista/7/8/10/11 | ||||||
| ENVIRONMENT | |||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||||||
| Humidity | 0-95% (Non-condensing) | ||||||
| Acoustic Noise | <40dB at 1M | ||||||
| PHYSICAL | |||||||
| Dimension (D*W*H) | 315.5*100*141mm | 343*135*206mm | |||||
| **Product specifications are subject to change without further notice. | |||||||
