600VA & 800VA

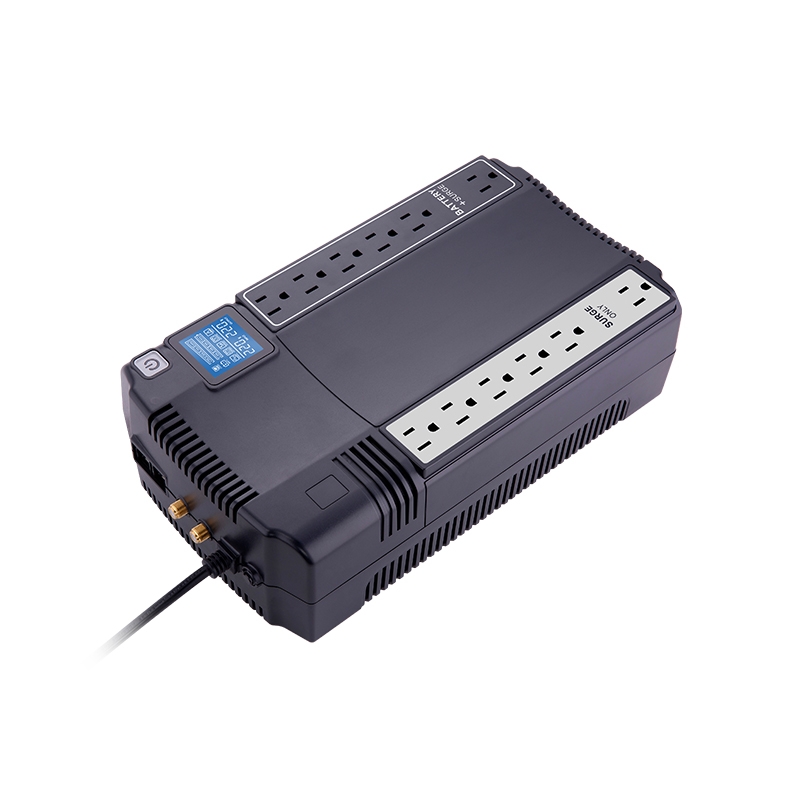

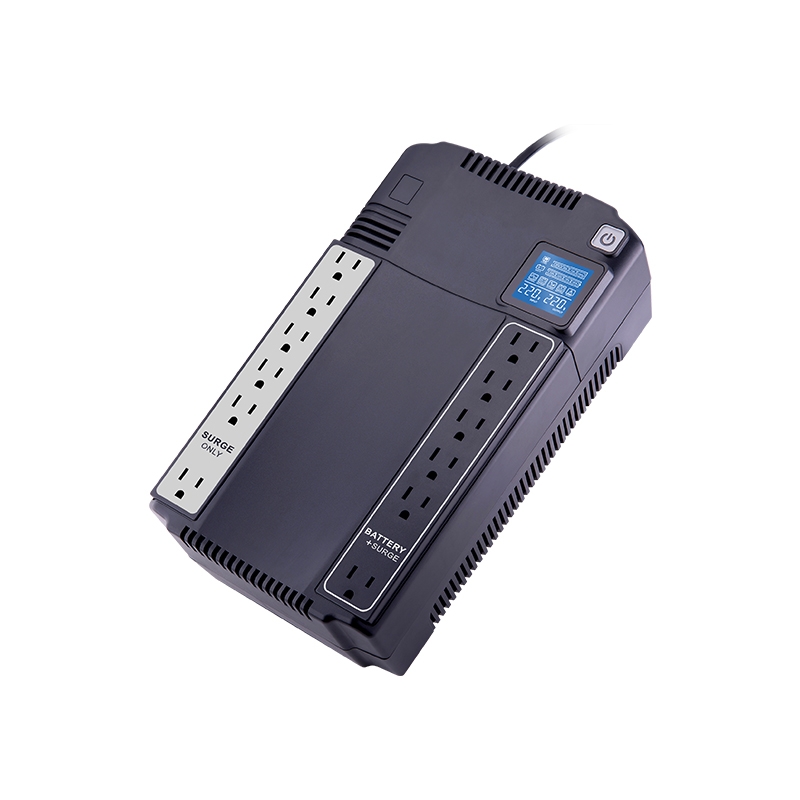

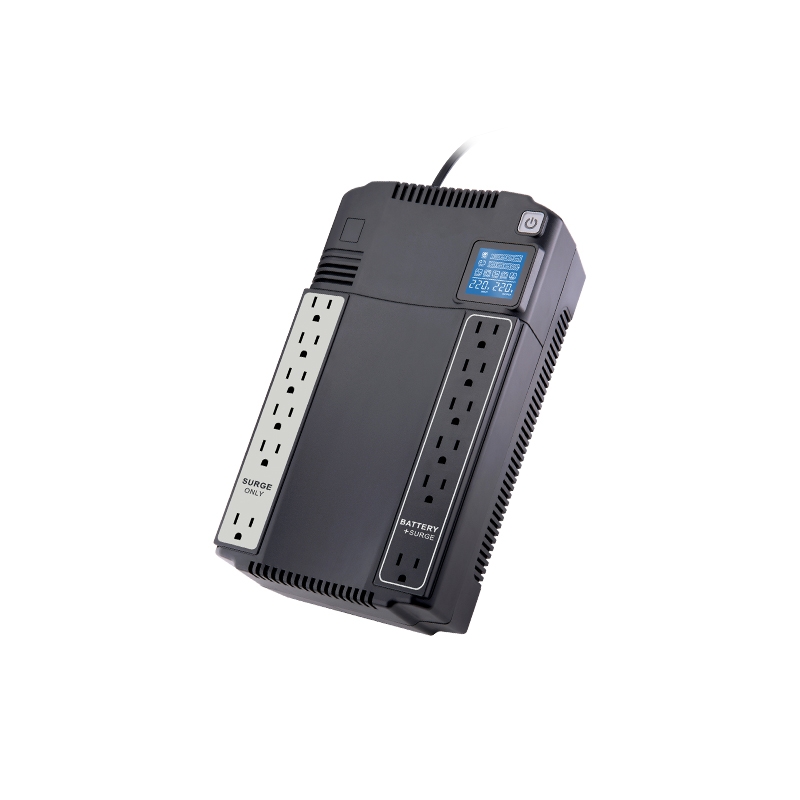

7100CO 7700CO Series
600VA & 800VA

IDEAL-7X00CO series is the power solution to avoid data loss of your computers from power failure.
Embedded with 2-steps boost & 1-step buck AVR stabilizer, it is able to stabilize output voltage fluctuations and correct any abnormal voltages to protect connected devices. It offers comprehensive power protection against surges, spikes and over-voltage or under-voltage situations.
With microprocessor control technology, it guarantees high reliability, which is suitable for home or small office applications.

7100CO 7700CO Office Type Series 600VA & 800VA

  • UPS will shut down upon battery low; UPS will restart automatically upon AC recovery (Auto-restart)
  • Controlled by a technologically advanced microprocessor guaranteeing high reliability
  • 5VDC USB charger 2.1A max. for charging iPad / iPhone / smart phone (Optional)
  • Management software is designed to monitor and control UPS status (Optional)
  • Built-in DC start function enables UPS to be started without AC power supplied
  • Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
  • Constant current, constant voltage battery charger (CCCV Battery Charger)
  • UPS will charge itself even though power switch is off (Off mode charging)
  • USB port and cable for managing functions via PC (Optional)
  • Over / under voltage protection (UPS will go to battery mode)
  • Modem / phone line protection RJ-45 (Optional)
  • No-load shut down function (UPS Green mode)
  • Coaxial cable line protection (Optional)
  • Lightning / surge protection 175 joules
MODEL IDEAL-7106CO IDEAL-7108CO
IDEAL-7706CO IDEAL-7708CO
CAPACITY 600VA/360W 800VA/480W
INPUT
Voltage 110/115/120Vac or 220/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation AC mode/Battery normal: 110/115/120Vac or 220/230/240Vac +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)
Outlet: Nema5-15R or Universal Nema 6pcs with Backup/AVR/Surge protected + 6pcs Surge protected only
USB Charger (Optional) 2 ports, 5VDC 2.1A max.
Coax-TV Protector (Optional) 2 ports
BATTERY
Voltage 12VDC
Type 12V/7AH*1pc 12V/9AH*1pc
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LCD Status Indicators Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
Smart USB (Optional) Software supporting Windows 95/98/NT/2000/ME/XP/2003/Vista/7/8/10/11
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acoustic Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 320*175*95mm
**Product specifications are subject to change without further notice.
