1000VA-3000VA

7700CR Series
1000VA-3000VA

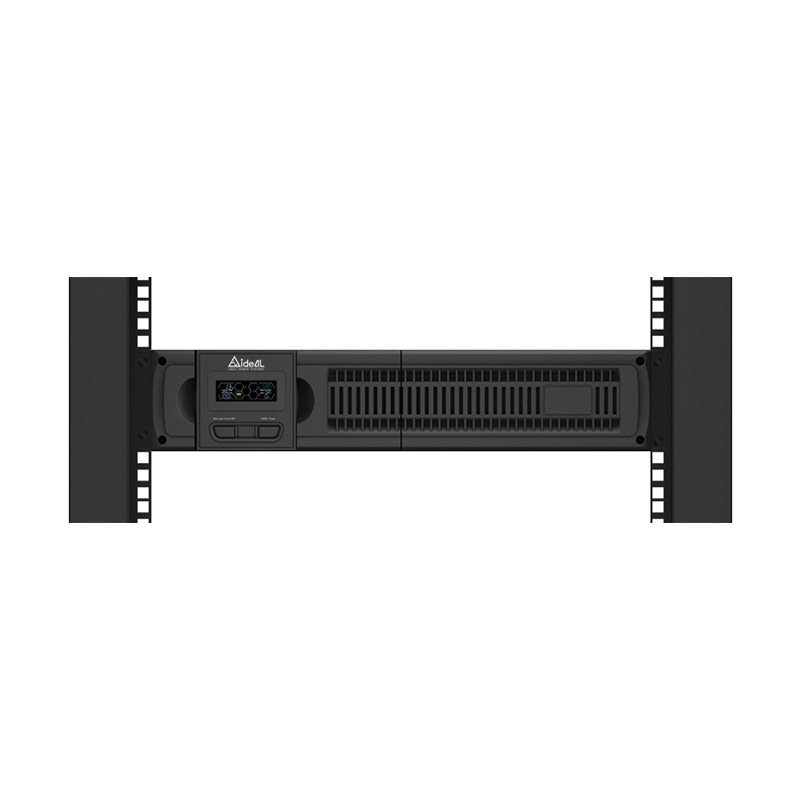

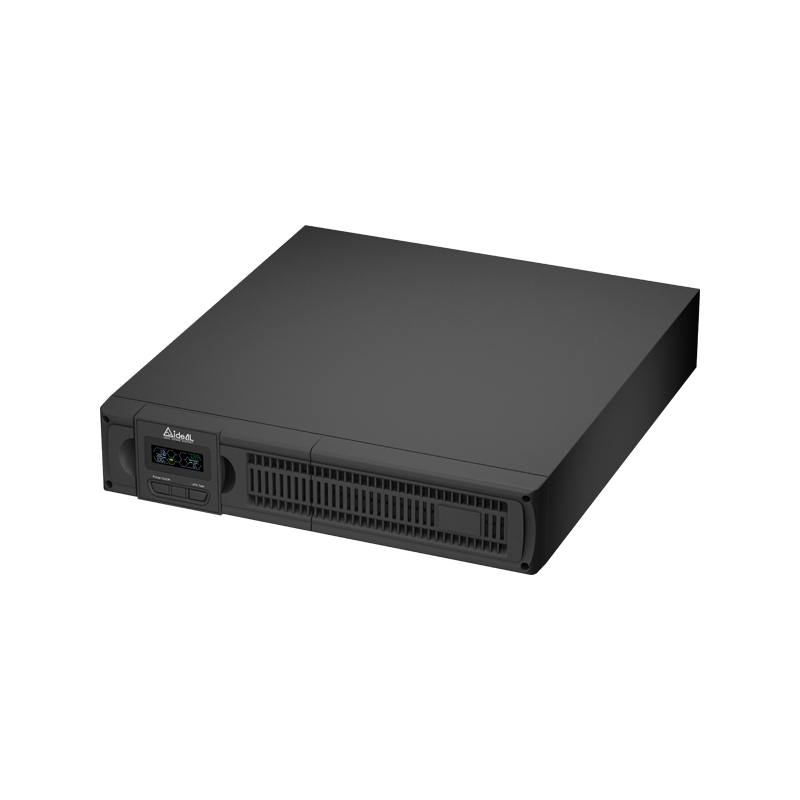

IDEAL-7700CR series provides enhanced battery backup power during outages and unsafe fluctuations. This UPS is combined with flexible rack/tower design which can fit into 19" rack instrument perfectly.
Featuring 1000VA-3000VA integrated with voltage stabilizer, LCD display and protection from damaging spikes and surges in a rack mounted unit.

7700CR LCD Series 1000VA-3000VA

  • UPS shuts down upon battery low and restarts automatically upon AC recovery (Auto-restart)
  • Controlled by a technologically advanced microprocessor guaranteeing high reliability
  • Built-in DC start function enables UPS to be started without AC power supplied
  • Constant current, constant voltage battery charger (CCCV Battery Charger)
  • UPS charges itself even though power switch is off (Off mode charging)
  • Management software is designed to monitor and control UPS status
  • USB communication port and cable for managing functions via PC
  • Over/under voltage protection (UPS goes to battery mode)
  • Equipped with boost & buck AVR to stabilize utility voltage
  • No-load shut down (UPS Green mode)(Optional)
  • Lightning/surge protection 175 joules

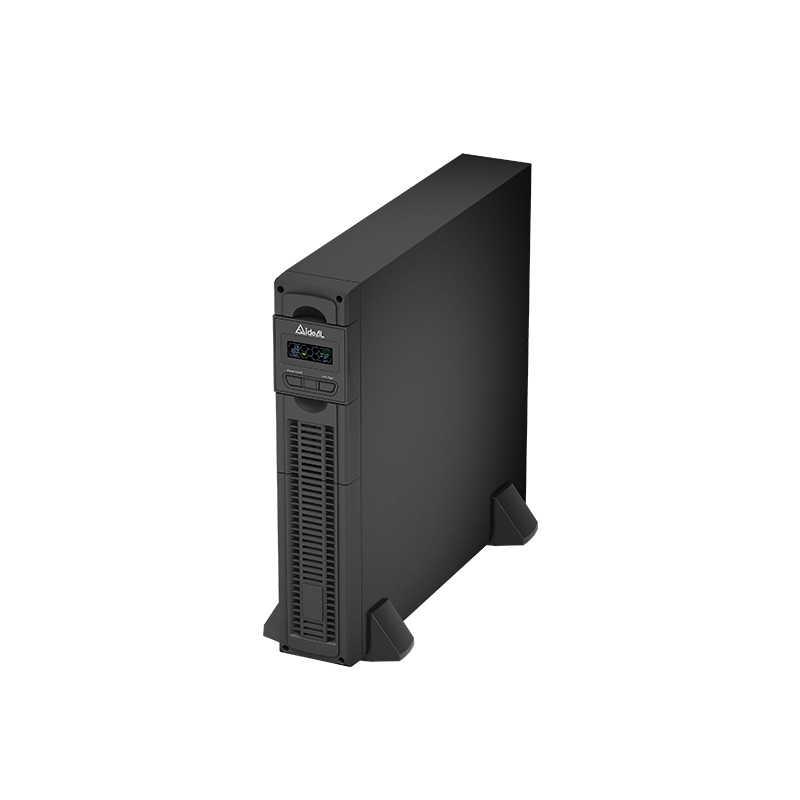

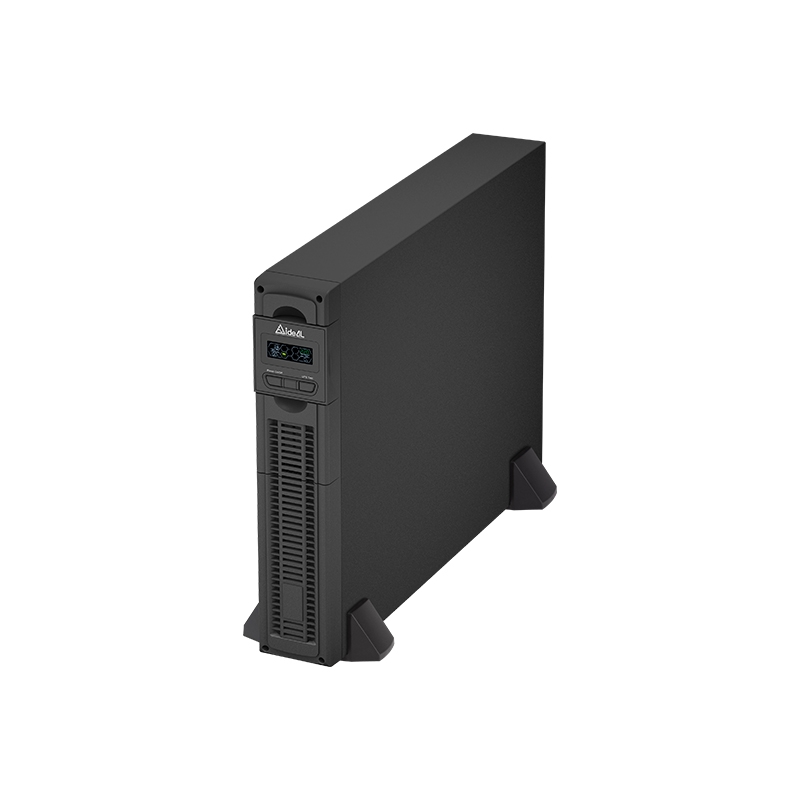

  • Rack/tower convertible design
  • User-friendly LCD display
MODEL IDEAL-7710CR IDEAL-7715CR IDEAL-7720CR IDEAL-7730CR
CAPACITY 1000VA/600W 1500VA/900W 2000VA/1200W 3000VA/1800W
INPUT
Voltage 110/115/120Vac or 220/230/240Vac
Voltage Range -30%, +25%
Frequency 50Hz or 60Hz (Auto-sensing)
OUTPUT
Voltage Regulation AC mode / Battery normal: 110/115/120Vac or 220/230/240Vac +/-10%
Frequency AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz
Waveform Simulated Sinewave
Transfer Time <6ms (Typical)
BATTERY
Voltage 24VDC
Type 12V/7AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs 12V/9AH*2pcs *2sets
Recharge Time 5 hours to 90% after complete discharge
Safety Protection Over Charge & Over Discharge Protection
Advanced Battery Management Yes
DISPLAY
LCD I/P & O/P Voltage & Frequency, Load %, Battery %
AUDIBLE ALARM
Battery Mode Two short tones every 8 seconds
Low Battery Four short tones every second
Overload Beeping continuously
Fault Beeping continuously
MANAGEMENT
Smart USB Software supporting Windows 95/98/NT/2000/ME/XP/2003/Vista/7/8/10/11
ENVIRONMENT
Operating Temperature 0°C-40°C (32°F-104°F)
Humidity 0-95% (Non-condensing)
Acoustic Noise <40dB at 1M
PHYSICAL
Dimension (D*W*H) 337mm*19"*2U 530mm*19"*2U
**Product specifications are subject to change without further notice.
